Dog Kennel Panel Clamps - Chain Link Saddle Clamps for Kennels and Dog Runs

Dog Kennel Panel Clamps - Chain Link Saddle Clamps for Kennels and Dog Runs

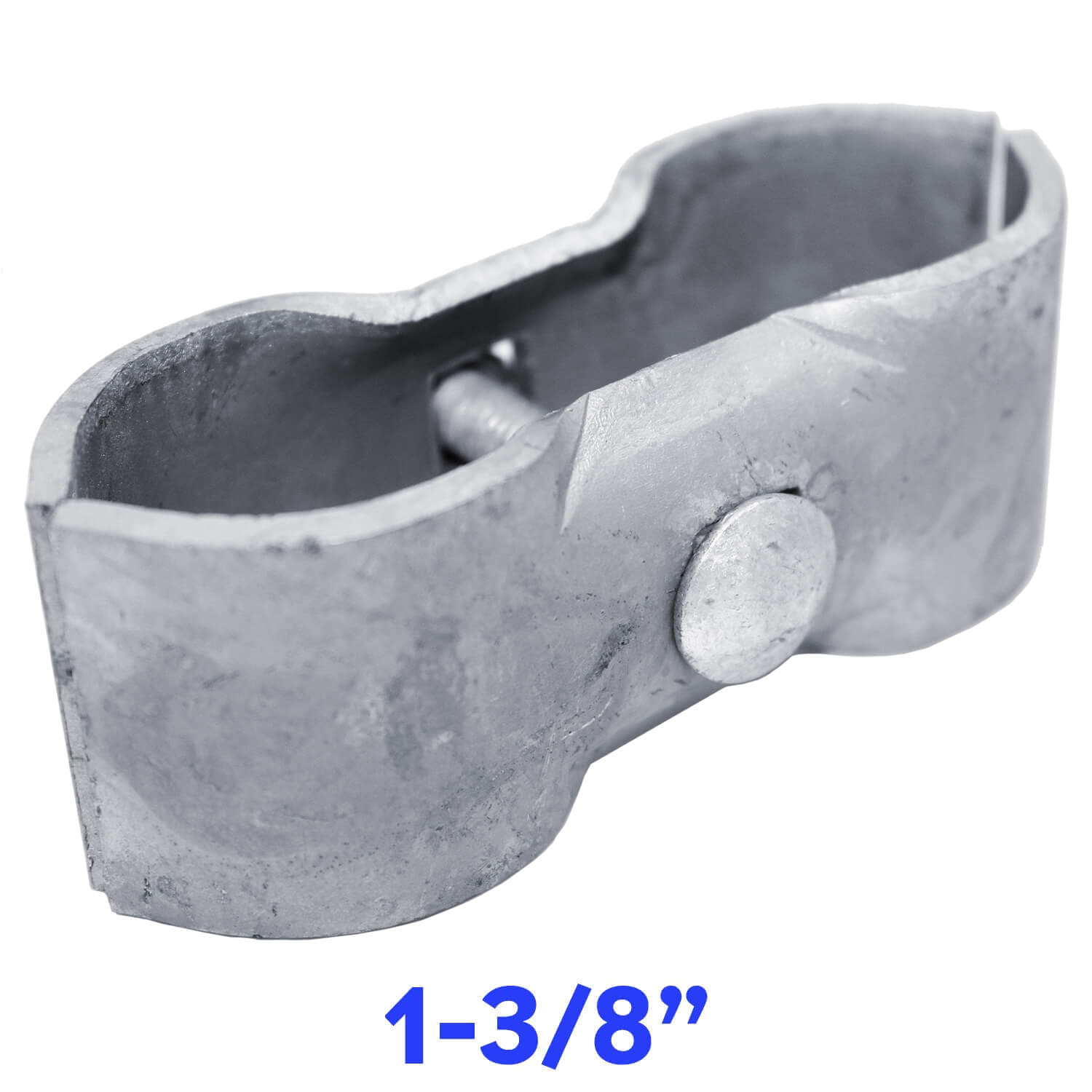

1-3/8" Clamp - 1 Set

Regular price $23.95 USD
Regular price
Retail price
$30.99 USD
Sale price $23.95 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping Over $50

GS1: 840129211334

Delayed Delivery Item

CLAMP SIZE: 1-3/8"
PACKAGE SIZE: Each
Quantity
In-Stock Orders Will Ship Within
0
Hours
0
Minutes
0
Seconds
Excluding Holidays

What are dog kennel panel clamps?

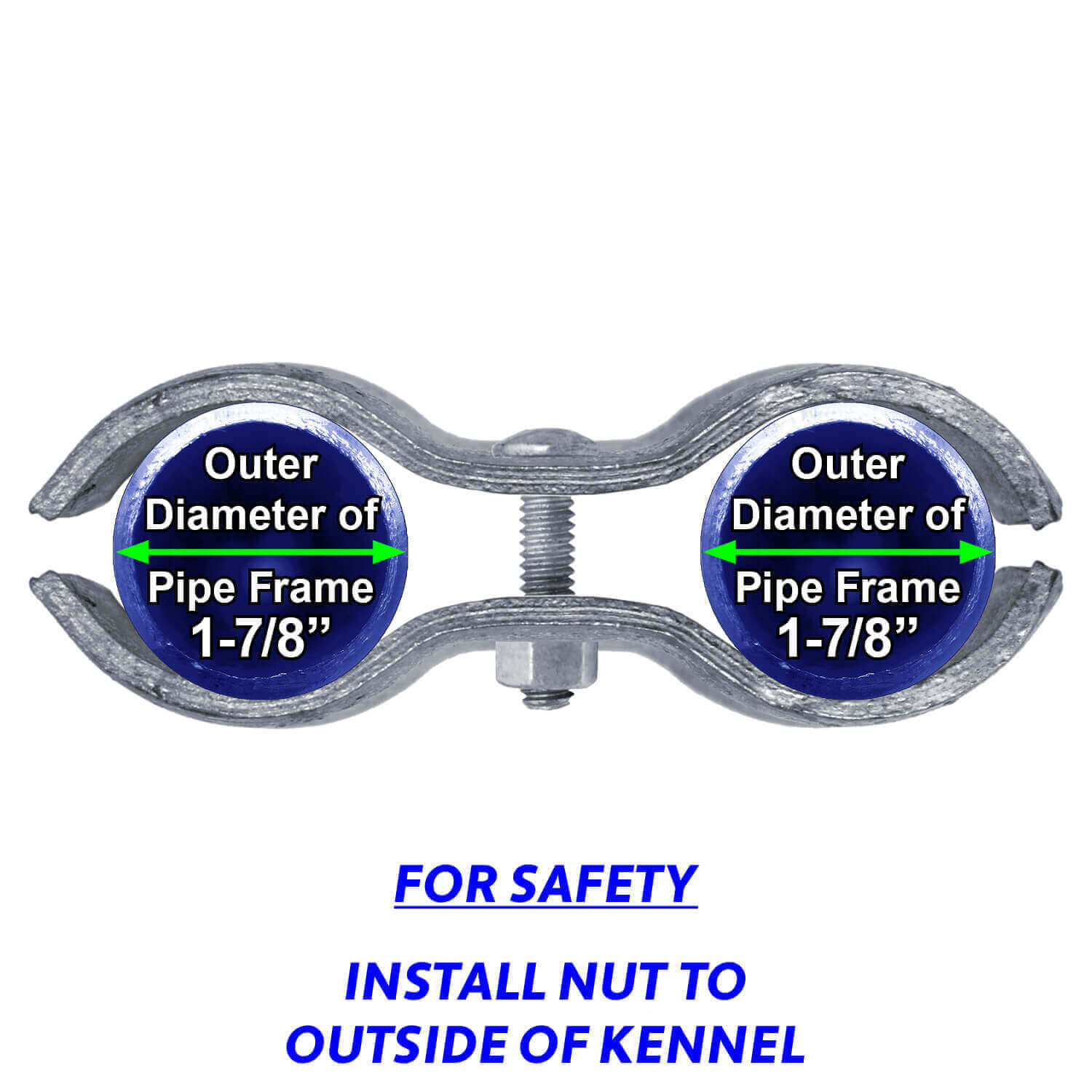

Dog kennel panel clamps (saddle clamps) are the hardware used to connect chain link fence panels together at T-intersections and corners. They bolt around two perpendicular pipes to create a rigid connection without welding.

What size kennel clamps do I need?

Kennel clamp size should match the outside diameter of your fence tubing. Standard residential kennel panels use 1-3/8 inch tubing; heavier commercial kennel panels use 1-5/8 or 1-7/8 inch tubing. Measure your panel tubing OD before ordering.

Can I use kennel clamps for temporary fencing?

Yes. Saddle clamps are ideal for temporary chain link enclosures because they can be installed and removed without tools other than a wrench, and the panels can be reconfigured into different layouts repeatedly.

How many clamps do I need per kennel panel connection?

Use one saddle clamp per pipe intersection. For a T-intersection connecting one panel to another, that is 1 clamp. For a full corner connection with two horizontal rails plus a vertical, that is 2 to 3 clamps depending on the configuration.

Are dog kennel panel clamps the same as fence brace bands?

No. Kennel clamps (saddle clamps) connect two perpendicular pipes at panel intersections. Brace bands clamp horizontal bracing rails to terminal posts along the fence line. They serve different structural functions.

Can kennel clamps be used for a permanent kennel installation?

Yes. Galvanized saddle clamps provide a durable, permanent connection suitable for long-term kennel installations. They are used in both temporary and permanent kennel configurations.

What tools do I need to install dog kennel panel clamps?

A wrench or socket set is the only tool required. The clamp bolt tightens with a standard hex nut. No welding, drilling, or power tools are needed.

Will kennel panel clamps work with pre-made kennel panels?

Yes. Kennel clamps are designed for use with standard prefabricated chain link kennel panels in the common 1-3/8, 1-5/8, and 1-7/8 inch tube sizes used by most panel manufacturers.

How do I configure a dog kennel using panel clamps?

Layout the kennel floor plan, stand the panels upright in the configuration you want, and connect each panel intersection with a saddle clamp. Start from one corner and work around the perimeter, adding a door panel where needed.

Can I add panels to an existing kennel using saddle clamps?

Yes. One of the advantages of a clamp-connected kennel is that panels can be added, removed, or repositioned by loosening existing clamps and adding new ones, allowing the kennel size to be changed as needed.

View full details

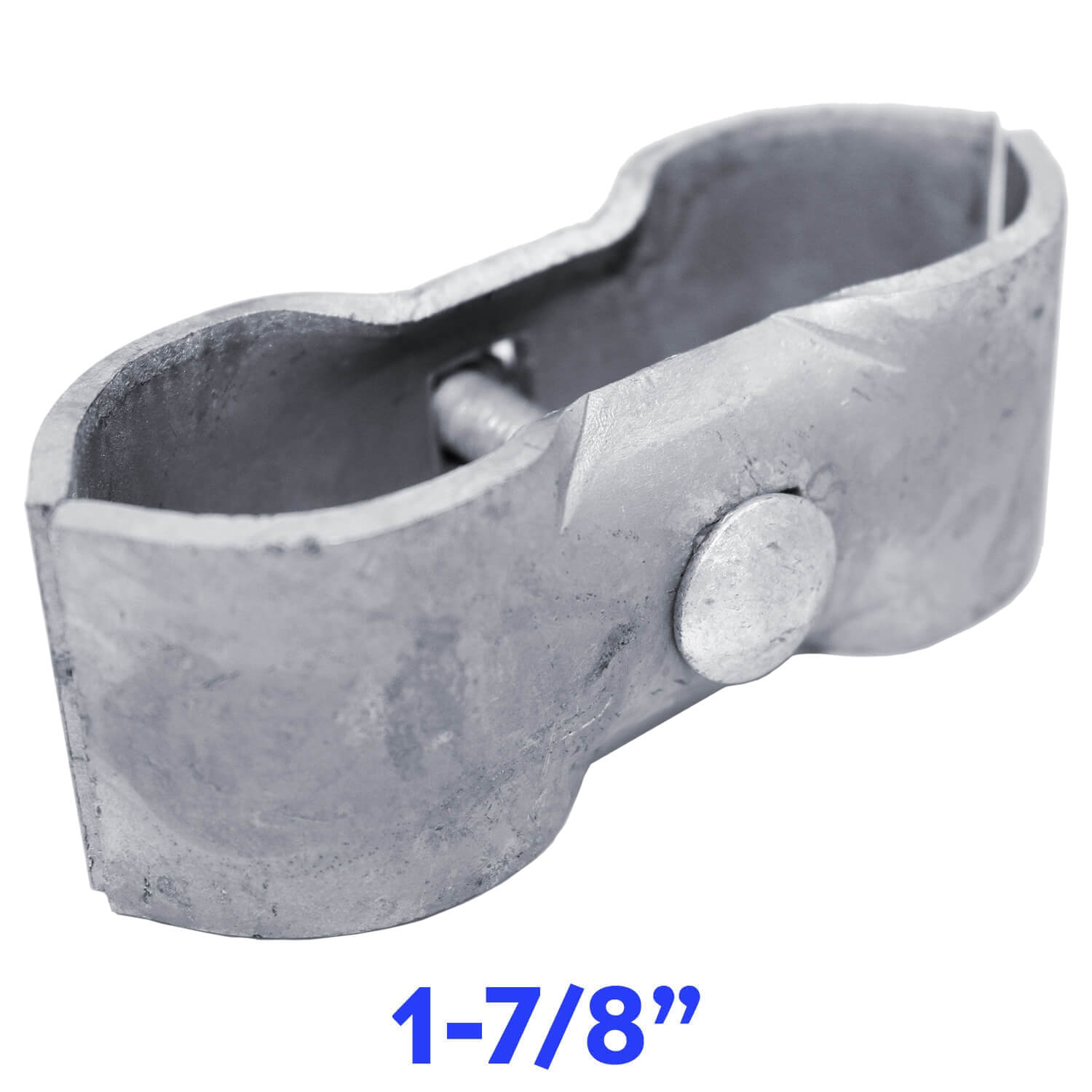

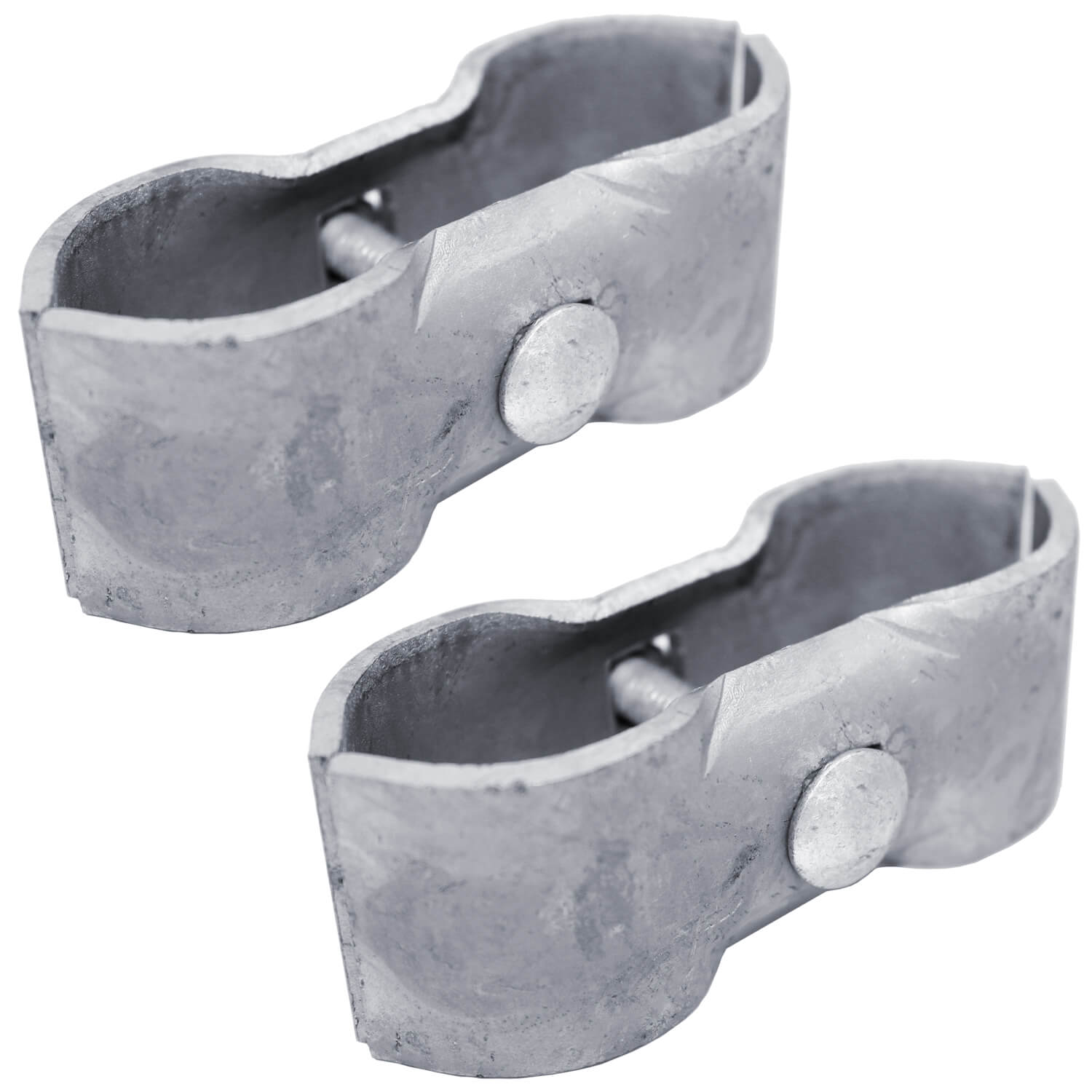

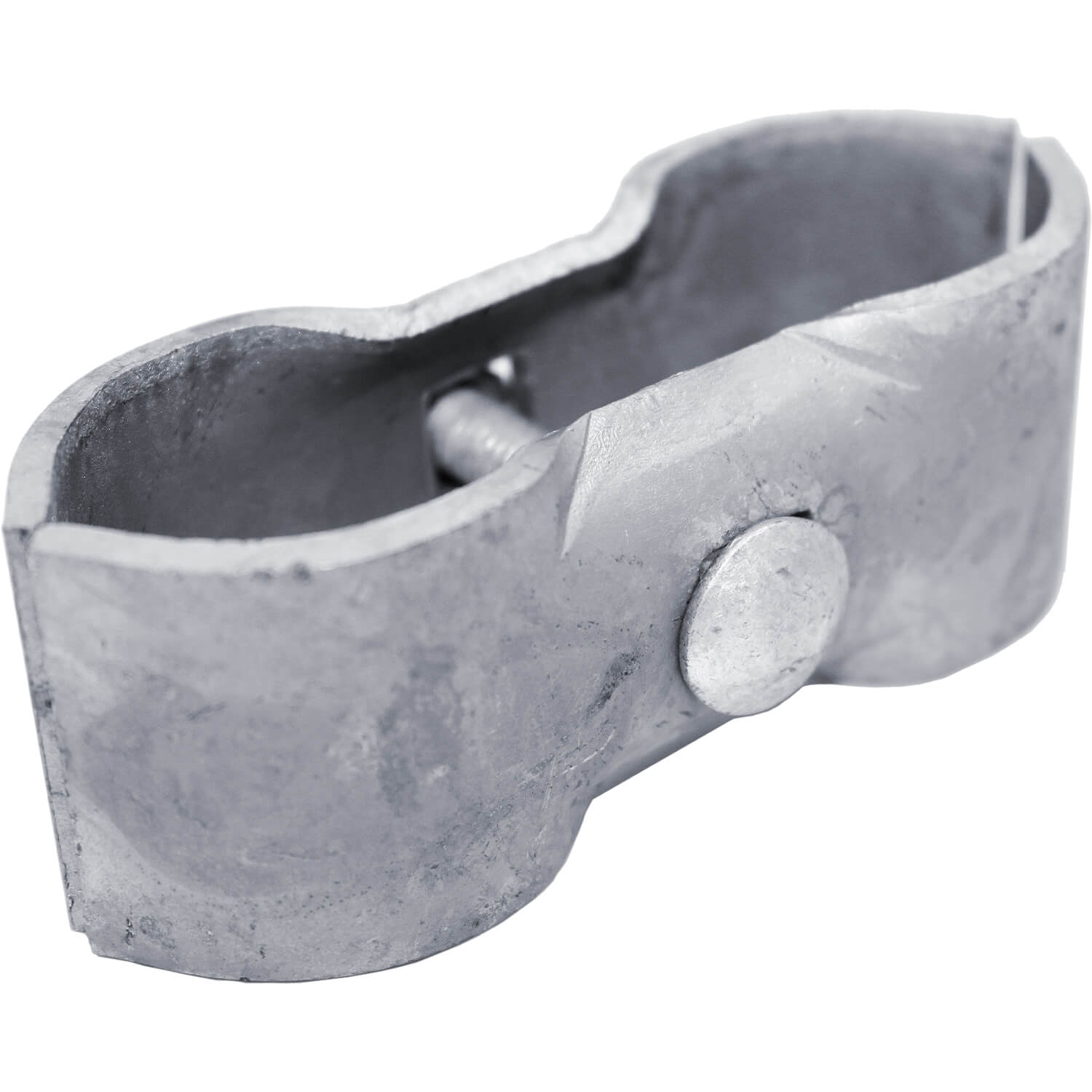

Our dog kennel panel clamps (saddle clamps) connect chain link fence panels at T-intersections and L-corners for dog kennels, dog runs, and temporary chain link enclosures. Available in 1-3/8, 1-5/8, and 1-7/8 inch sizes. Sold in 2-packs and 8-packs. Galvanized steel for outdoor use.

Galvanized Chain Link Fence Panel Clamps with Bolts Nuts - Saddle Clamps for Dog Kennels Temporary Fencing

✔Heavy-duty galvanized steel - Rust-resistant and built for outdoor use in dog kennels, runs, and temporary fencing.
✔Includes bolts and nuts - Everything you need for fast installation.
✔Securely connects chain link panels - Reduces the risk of dog escapes and creates strong, stable connections.
✔Easy to install - Simply saddle the clamps over two panels and tighten the included hardware.
✔Also great for - Baseball backstops, canopy frames, parallel rails, and many other temporary or permanent fencing projects.
✔Pro tip: Always measure the outside diameter of your pipe before ordering.

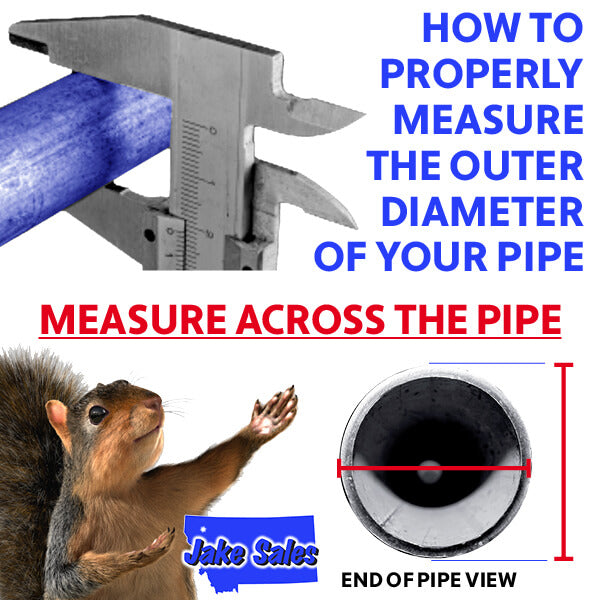

You need to measure "outside diameter" of pipe prior to purchase. Clamps will not work on sizes other than specified. See "How to Properly Measure the Outer Diameter" graphic for example

Installation Instructions   Available Here
