Spring Loaded Gate Closer - Self-Closing Chain Link Gate Spring

Spring Loaded Gate Closer - Self-Closing Chain Link Gate Spring

1-7/8" x 1-3*8" Each

Regular price $33.95 USD
Regular price
Retail price
$43.99 USD
Sale price $33.95 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping Over $50

GS1: 840129213499

Delayed Delivery Item

PRODOUCT SIZE: 1-7/8" x 1-3/8"
PACKAGE SIZE: Each
Quantity
In-Stock Orders Will Ship Within
0
Hours
0
Minutes
0
Seconds
Excluding Holidays

How long does a spring gate closer last?

A quality spring gate closer will last many years under normal residential use. Factors that shorten lifespan include very heavy gates, high-cycle commercial use, and UV and weather exposure. Inspect the spring annually for corrosion or fatigue.

Can I adjust the closing force on a spring loaded gate closer?

Yes. You can adjust spring tension by changing the mounting position of the spring attachment points. Mounting the spring at a greater angle increases tension (faster, stronger closing); less angle reduces it.

Is a spring gate closer the same as a hydraulic gate closer?

No. A spring gate closer uses mechanical spring force and closes at a fixed speed. A hydraulic gate closer uses fluid resistance to control closing speed for a smoother, more controlled movement. Hydraulic closers are preferred for heavy gates and high-traffic locations.

Does the gate closer include installation hardware?

Yes. Mounting bolts and brackets are included with this spring gate closer. Basic hand tools are the only additional items needed for installation.

Can a spring gate closer be installed on a double gate?

Each leaf of a double gate needs its own spring gate closer. For double gates, install one closer per leaf and use a drop rod or bolt to secure the first-closing leaf in place.

Will a gate closer keep my gate closed in high wind?

A spring gate closer pulls the gate closed after each use but is not a gate latch. Pair the gate closer with a self-latching gate latch to keep the gate secured against wind once it closes.

What gate frame sizes does this spring closer fit?

This spring gate closer is compatible with standard c chain link gate frames, the two most common residential and light commercial gate frame sizes.

How do I install a spring gate closer?

Attach one end of the spring to the gate frame using the included mounting bracket and bolt. Attach the other end to the fence post using the second bracket. Position the spring diagonally across the gate so it stretches when the gate opens and pulls it closed when released.

Why is my spring gate closer not pulling the gate shut?

Common causes include: the spring is mounted with too little tension (reposition to increase the angle), the spring has fatigued over time (replace the spring), or the gate is heavier than the spring rating (upgrade to a heavier duty spring closer).

Is a spring loaded gate closer suitable for a pool fence?

Yes. A spring loaded gate closer is the most common and cost-effective way to meet the self-closing requirement for pool fence gates. Pair it with a self-latching pool gate latch for a complete code-compliant pool gate installation.

View full details

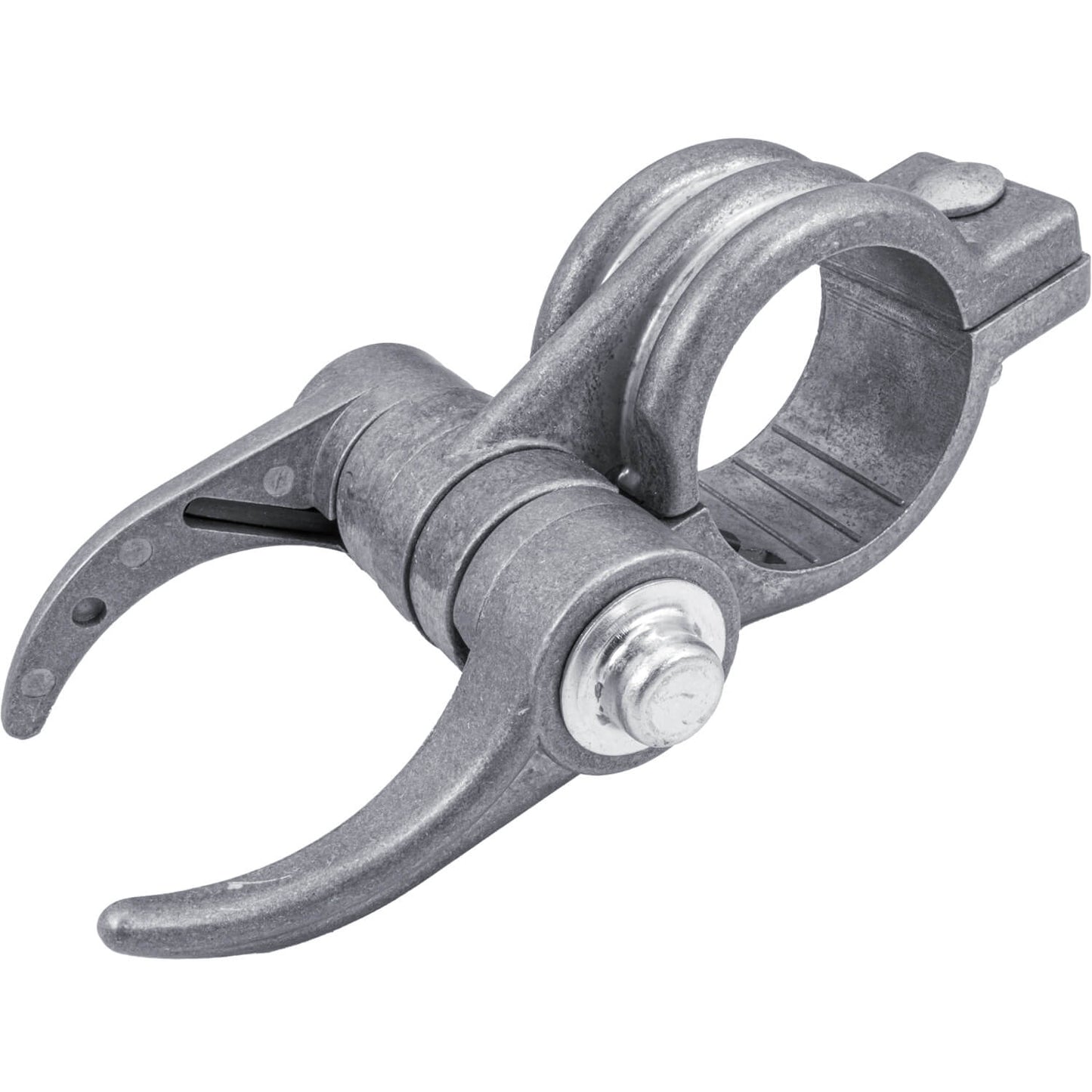

Our spring loaded gate closer is a durable coil spring mechanism that automatically returns your chain link gate to the closed position after each use. Compatible with standard 1-3/8 inch and 1-5/8 inch chain link gate frames. Closing tension is adjustable. Mounting hardware included.

Durable Chain Link Spring Loaded Gate Closer

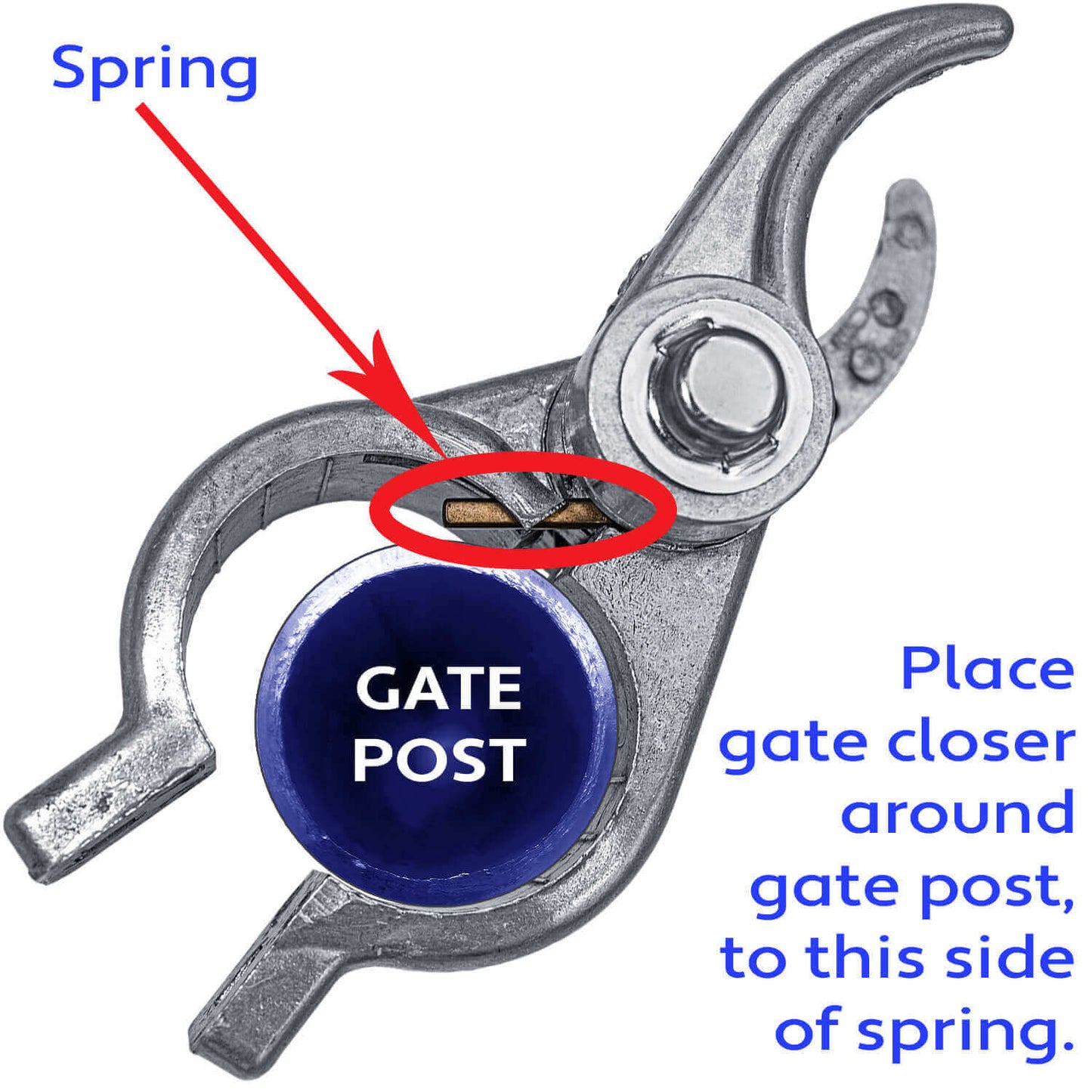

Position Spring in the Manner Shown in the Image Provided - Around Gate Post On Side of the Spring
Refer to Installation Instructions and Measuring Chain Link Fence Included on this Page

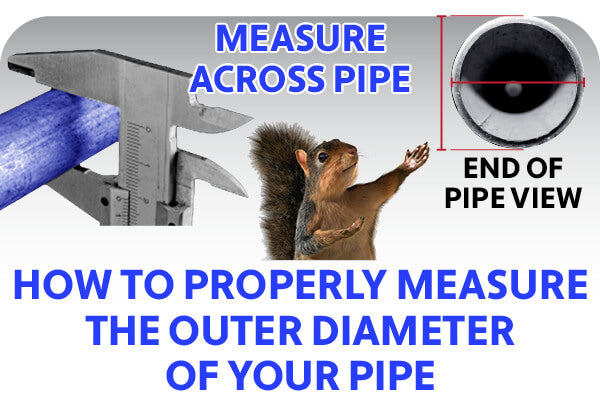

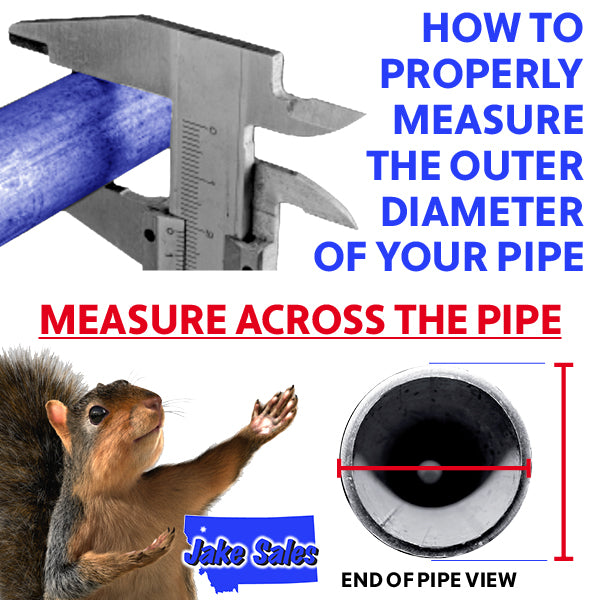

You Need to Measure "Outside Diameter" of Both Gate Post and Gate Frame Prior to Ordering
Rust Proof Aluminum Construction for Low Maintenance and To Prevent Corrosion
Light Duty Gate Spring Closer Internal Springs Will Close the Gate When Opened in Either Direction
Chain Link Gate Closer Includes the Necessary Bolts/Nuts for Installation

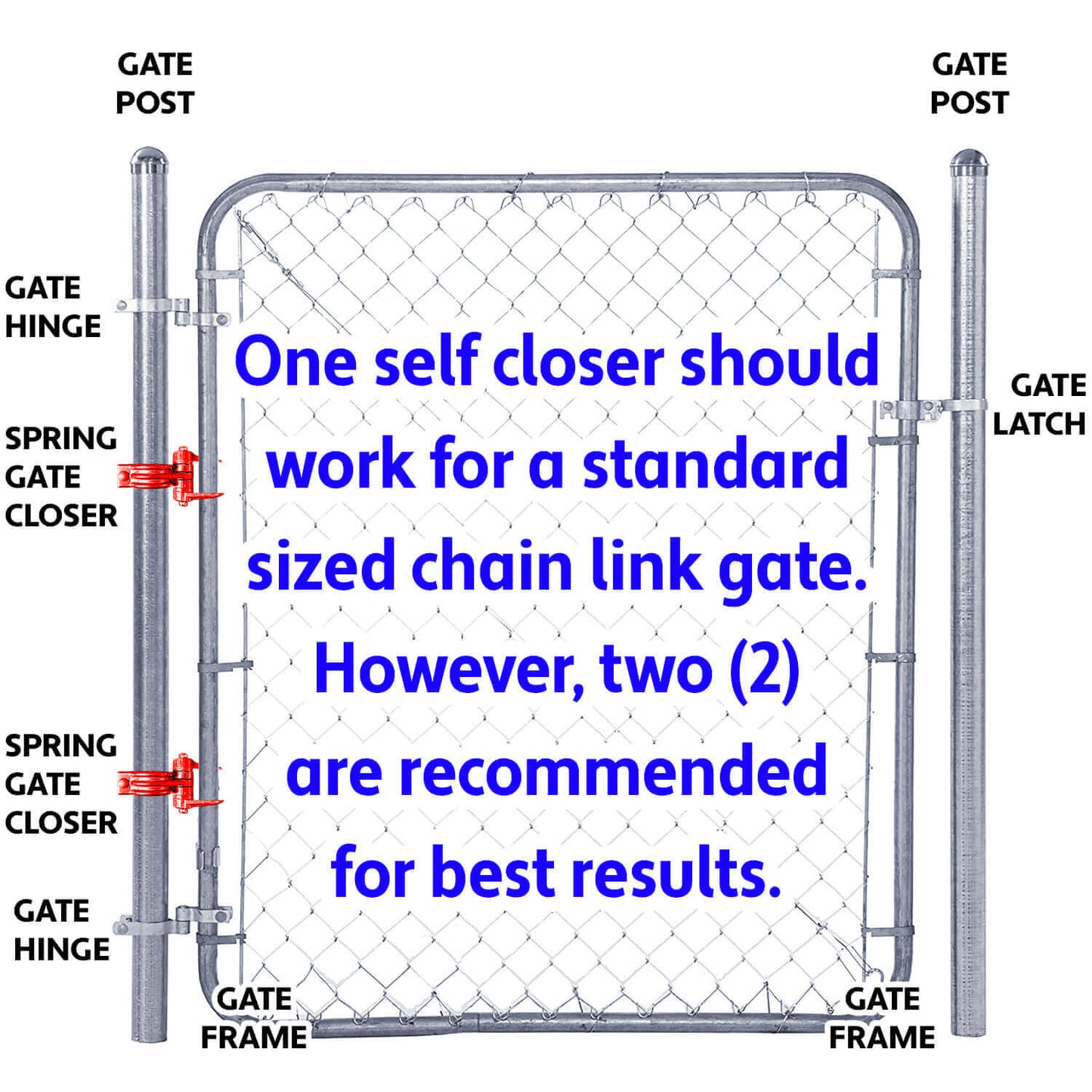

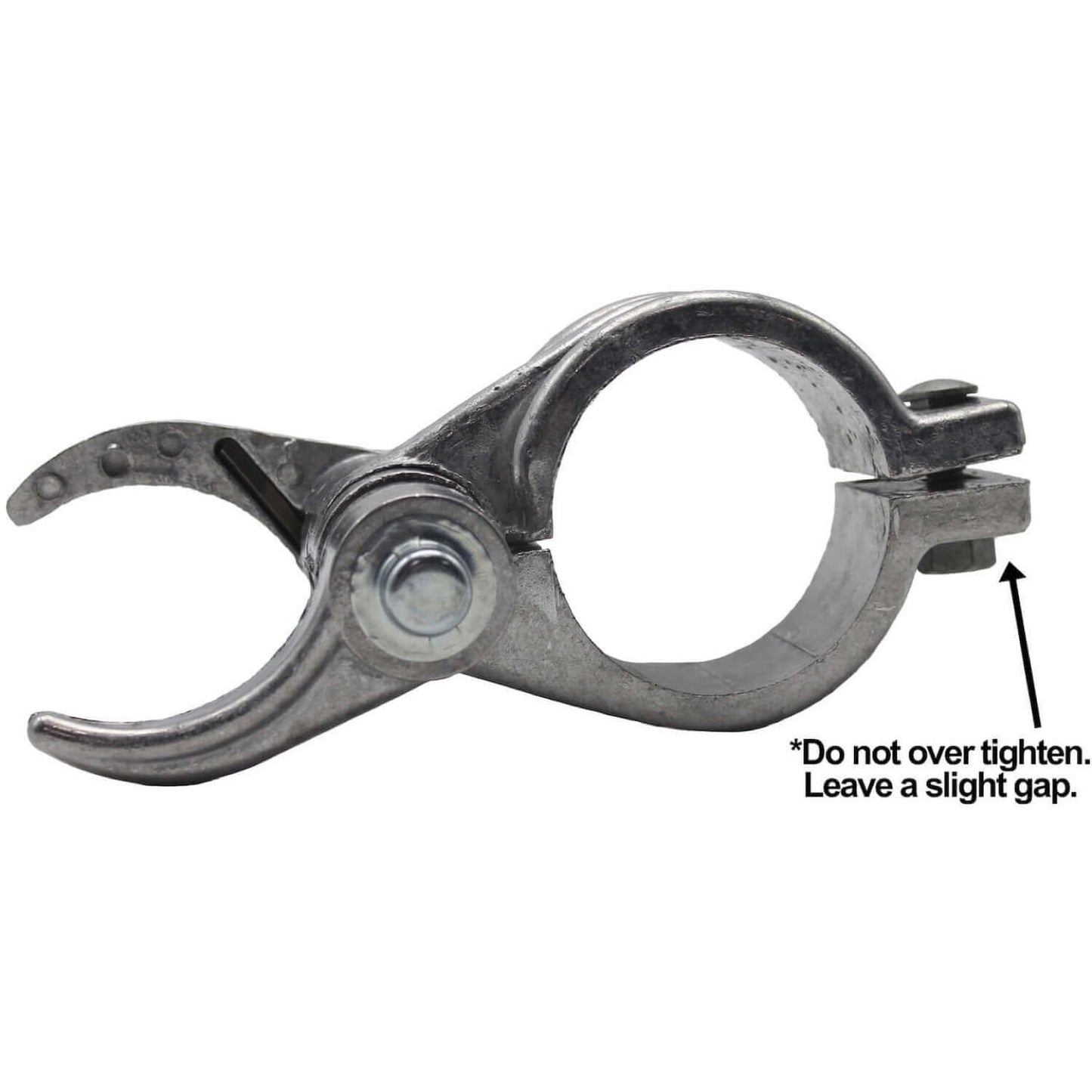

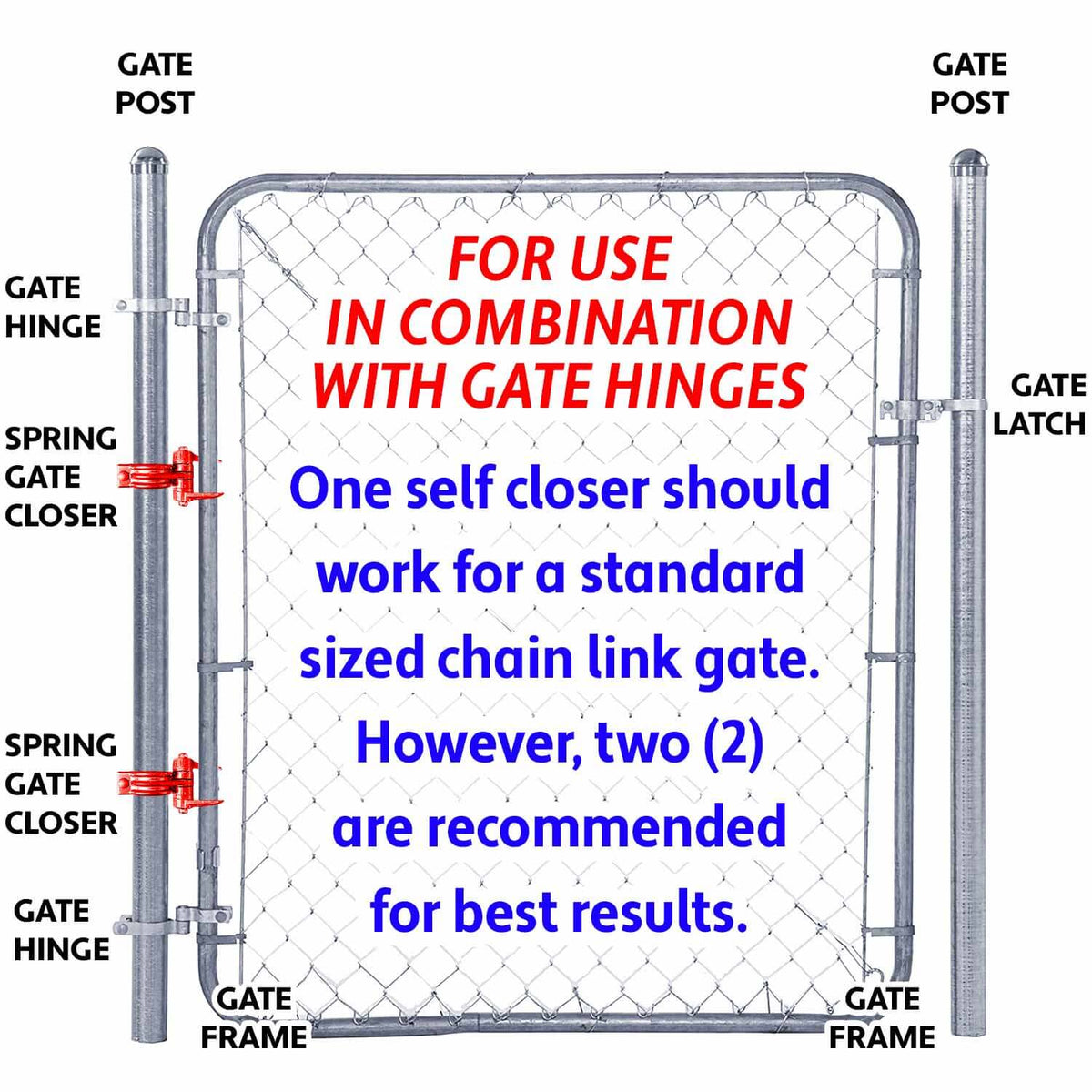

Designed To Be Used With a Standard Sized Chain Link Gate. One Self Closer Should work for a Standard Man Sized Chain Link Gate, However Two (2) are Recommended For Best Results. For Use in Combination with Gate Hinges. The Manufacturer Suggests Leaving a Slight Gap When Tightening Clamp on Post frame, Do Not Over-Tighten. The Manufacturer Recommends You Do not Force the Gate Open Past 90 Degrees While Using This Closer.

Please Check Your Local Regulations for Pool Gate Requirements. Regulations Vary From Area To Area. Thank you

Installation Instructions   Available Here

Closer Size Measured By Product Material

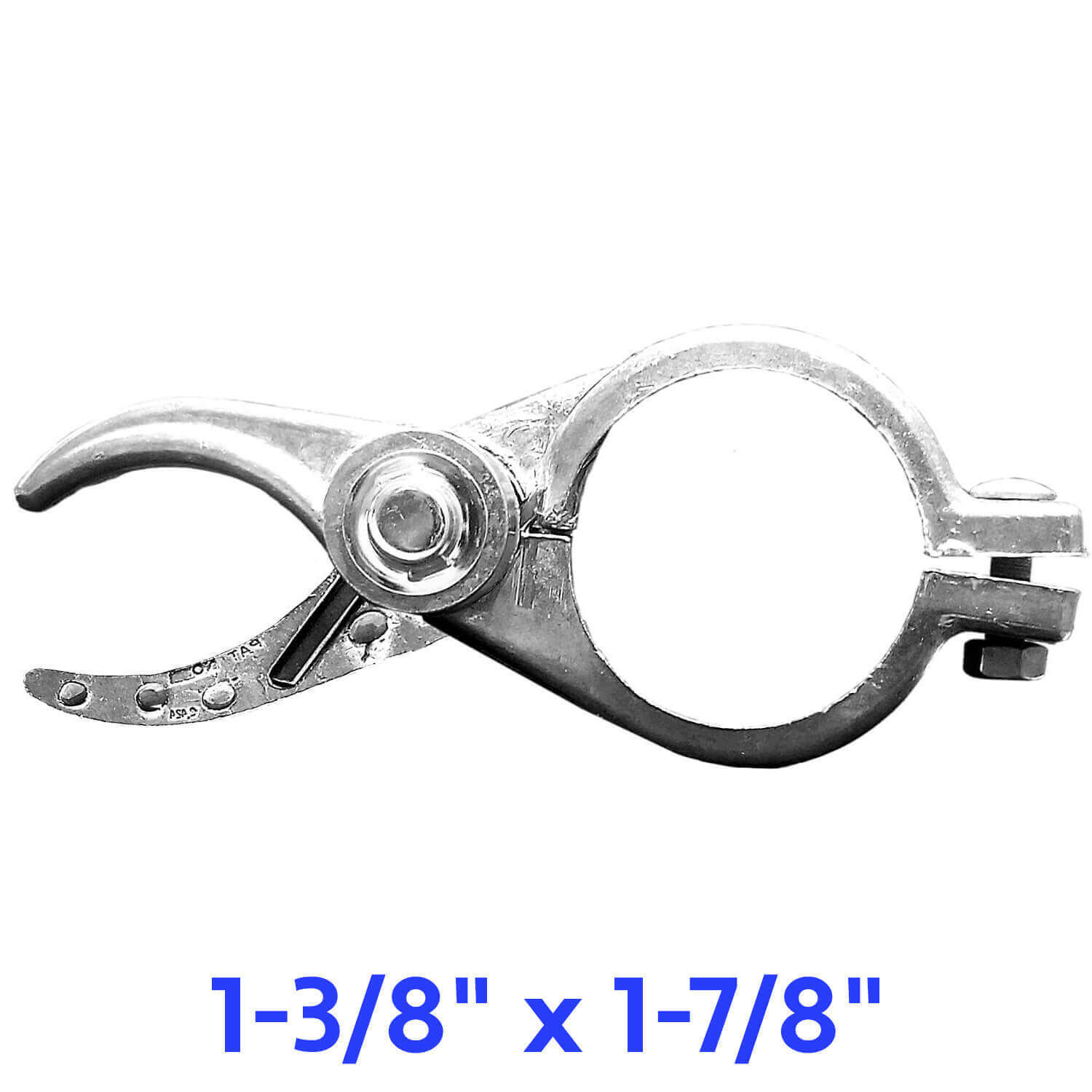

1-3/8" x 1-7/8" (2") Outside Diameter of Gate Frame Post Aluminum

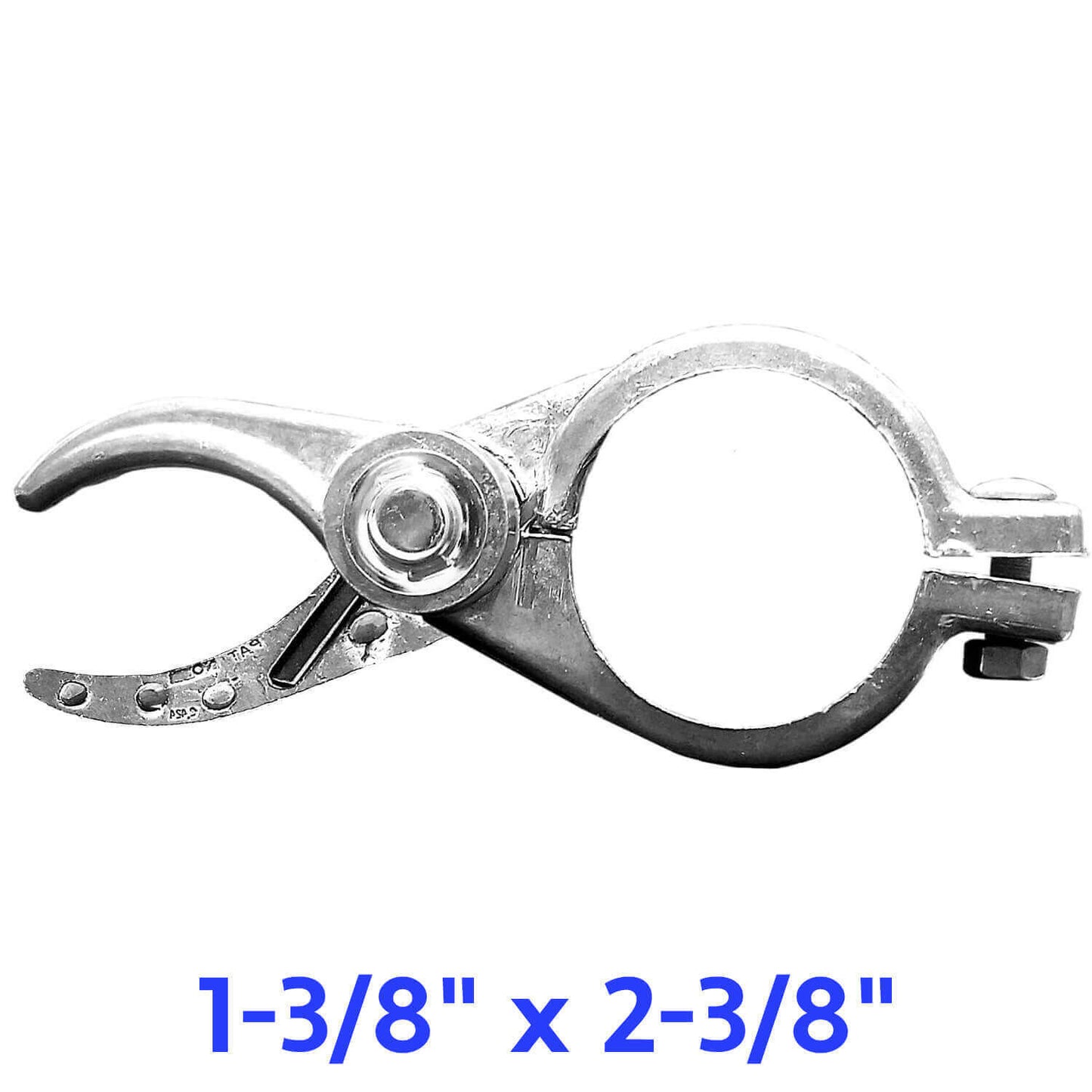

1-3/8" x 2-3/8" (2-1/2") Outside Diameter of Gate Frame Post Aluminum
