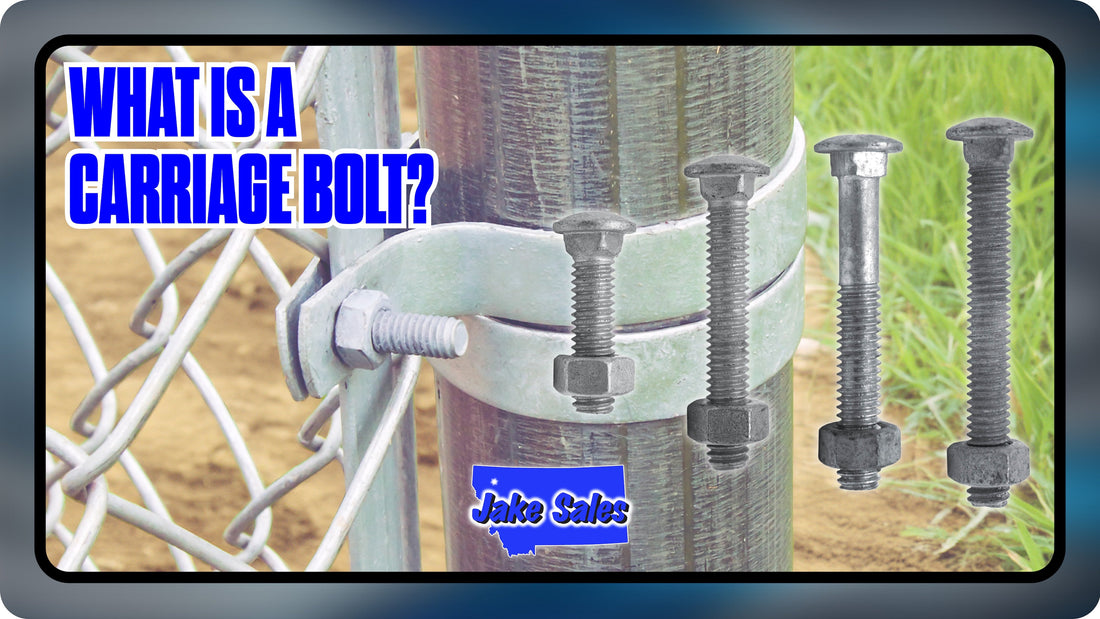

What is a carriage bolt? A carriage bolt is a round-head fastener with a smooth dome-shaped head and a square neck section directly below the head. The head and neck work together: the dome-shaped head sits flush with or proud of the surface, looking clean from the visible side, while the square neck embeds into wood to prevent the bolt from spinning as the nut is tightened on the opposite side. No wrench on the bolt head needed — only the nut turns.
Carriage bolts are also widely known as coach bolts in the UK and Australia. The two terms are interchangeable, though "carriage bolt" dominates in North American usage. Carriage bolts are also called "round head square neck bolts" — a descriptive name that tells you exactly what makes them unique among types of bolts.
Why Are They Called Carriage Bolts?
Carriage bolts take their name from horse-drawn carriages — their original application. Before the automobile era, carriage makers needed a bolt that could be installed from one side of a wooden panel without requiring access to both sides, and without leaving exposed, snag-prone hardware on the finished exterior of the carriage body. The dome-shaped head of the carriage bolt was smooth and safe (no sharp edges to catch on clothing or harnesses) and could be driven flush. The square neck locked into the wooden carriage frame without a second person holding the bolt. The railroad industry and farming industry adopted carriage bolts for the same reasons — single-person installation, smooth exposed head, no rotation during tightening.
What Is the Difference Between a Carriage Bolt and a Regular Bolt?
The main difference between carriage bolts and hex bolts (the most common "regular bolt") comes down to head shape, installation method, and intended application:
| Feature | Carriage Bolt | Hex Bolt |
|---|---|---|
| Head shape | Round, dome-shaped head — smooth on top | Hexagonal head — requires wrench |
| Anti-rotation | Square neck embeds into wood | Hex head held with wrench |
| Installation access | Single-sided — no wrench on bolt | Requires access to both head and nut |
| Best material | Wood-to-wood, wood-to-metal fastening | Metal-to-metal, precision |
| Security | High — smooth head can't be turned with tools | Standard |
| Shear strength | Moderate | Higher for heavy-duty use |
Hex bolts are stronger than carriage bolts for heavy-duty use — the hexagonal head allows much higher tightening torque, and the bolt can be made from higher-strength grades more easily. For structural steel-to-steel connections and precision metal applications, hex bolts are the right choice. For wood-to-wood and wood-to-metal connections where one-sided installation and a smooth head are valuable, carriage bolts offer the right combination of features.
What Is the Difference Between a Carriage Bolt and a Step Bolt?
A carriage bolt and a step bolt look nearly identical — both have a dome-shaped head and a square neck. The difference is the square neck dimension relative to the bolt diameter. Step bolts have a wider, shallower square section that is designed for use with thinner materials and pre-drilled holes where the standard carriage bolt's square neck would create a larger hole requirement. Step bolts are common in electrical and utility applications. The carriage bolt's square neck is sized to match the bolt diameter for wood embedment, while the step bolt's wider shoulders are sized for metal plate mounting.
What Do You Use Carriage Bolts For?
Carriage bolts are commonly used in constructing wooden decks, furniture, landscaping projects, playground equipment, swing sets, and structural wood connections. Specific carriage bolt applications include:
- Deck construction. Carriage bolts connect deck ledgers to house framing, fasten posts to beams, and secure structural wood-to-wood connections throughout deck systems. The smooth head on the visible face is a finishing advantage.
- Fence and gate hardware. Carriage bolts secure gate hinges, latches, and structural fence components. The smooth head is tamper-resistant — a screwdriver or hex key can't turn it from the outside.
- Playground and swing set assembly. Carriage bolts are used in public and safety structures where smooth heads prevent injuries. The rounded dome-shaped head eliminates the snag and scratch risk that a hex head would create in a play structure.
- Furniture assembly. Carriage bolts are used in furniture assembly for secure connections, particularly in outdoor furniture, workbench frames, and industrial-style furniture where the bolt head is visible and intentional.
- Street signage. Carriage bolts secure stop signs to wooden support beams. The installation security of a bolt that can't be turned from the front without removing the nut from the back is a feature, not a limitation.
- Timber framing and landscaping projects. Heavy carriage bolts connect timber framing members, landscape timbers, and retaining wall components — applications that need strong, through-bolt connections in wood.
Carriage Bolt vs Lag Bolt
Carriage bolts and lag bolts are both used for heavy-duty wood applications, but they differ fundamentally in how they work:
- Carriage bolts are through-bolts — they pass completely through both pieces of material and require a nut and washer on the far side. Carriage bolts are partially threaded along their shank, with a smooth unthreaded section near the head. Carriage bolts require nuts to be installed.
- Lag bolts have a pointed tip and hexagonal head. They are screwed directly into wood and don't require a nut — they function like giant wood screws. Lag bolts are used when access to the far side of the material isn't available.
Carriage bolts provide superior vibration resistance due to their design — the through-bolt with nut and washer creates a clamping force across the entire joint thickness that lag screws can't replicate. For deck-to-house structural connections and other code-critical applications, check local building codes for which fastener type is specified.
Carriage Bolt Installation
- Pre-drill the hole. Pre-drill holes to match the bolt diameter — same size as the bolt shank. The square neck only needs to engage with the wood immediately below the head. Drill through both pieces of material that will be joined.
- Insert the bolt. Use a hammer to tap the bolt into place. Drive the square neck into the wood — the square section embeds into the round hole and locks against rotation.
- Add washer and nut. Attach a washer and nut after inserting the bolt. The washer distributes load on the back face of the joint.
- Tighten. Tighten the nut until the bolt head is flush or slightly countersunk into the wood surface. Use a wrench or socket on the nut only — the square neck holds the bolt stationary.
- To remove: Loosen the nut and tap the shank back through from the nut side.
Carriage Bolt Materials and Coatings
Carriage bolts are commonly made from steel, stainless steel, or galvanized steel:
- Plain/zinc-plated steel: Standard interior applications. Not for outdoor use.
- Hot-dip galvanized: Outdoor applications, treated lumber connections. Required by many building codes for exterior deck connections.
- Stainless steel: Coastal, marine, and high-corrosion environments. Stainless steel carriage bolts resist rust in outdoor applications, marine environments, and where contact with ACQ-treated lumber could corrode galvanized zinc.
For most outdoor decking projects, hot-dip galvanized carriage bolts are the code-compliant, cost-effective choice. For coastal or saltwater-adjacent applications, use stainless steel.
