Offset Gate Latch - Rolling Sliding and Cantilevered Chain Link Gate Latch

Offset Gate Latch - Rolling Sliding and Cantilevered Chain Link Gate Latch

1-5/8" and 1-7/8" Each

Regular price $29.95 USD
Regular price
Retail price
$38.99 USD
Sale price $29.95 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping Over $50

GS1: 840129212232

Delayed Delivery Item

PACKAGE SIZE: Each
Quantity
In-Stock Orders Will Ship Within
0
Hours
0
Minutes
0
Seconds
Excluding Holidays

What is an offset gate latch?

An offset gate latch is designed for sliding or rolling gates. Unlike a swing gate fork latch that drops down, an offset latch mounts to the side of the gate frame and engages horizontally as the gate slides closed.

Will a standard fork latch work on a rolling gate?

No. A standard fork latch is designed for swing gates and drops vertically into a receiver. Rolling gates move horizontally, requiring a side-engaging offset latch that catches the gate as it reaches the closed position.

Does the offset latch lock?

Yes. Our offset gate latch includes a padlock hole in the latch mechanism, allowing you to insert a padlock to secure the gate when locked.

How does the Lock-N-Latch design work?

The Lock-N-Latch has a spring-loaded latch bar that engages a receiver automatically as the gate slides into the closed position. No manual operation is needed to latch the gate. To open, lift or depress the latch bar depending on the model.

What gate frame size does the offset latch fit?

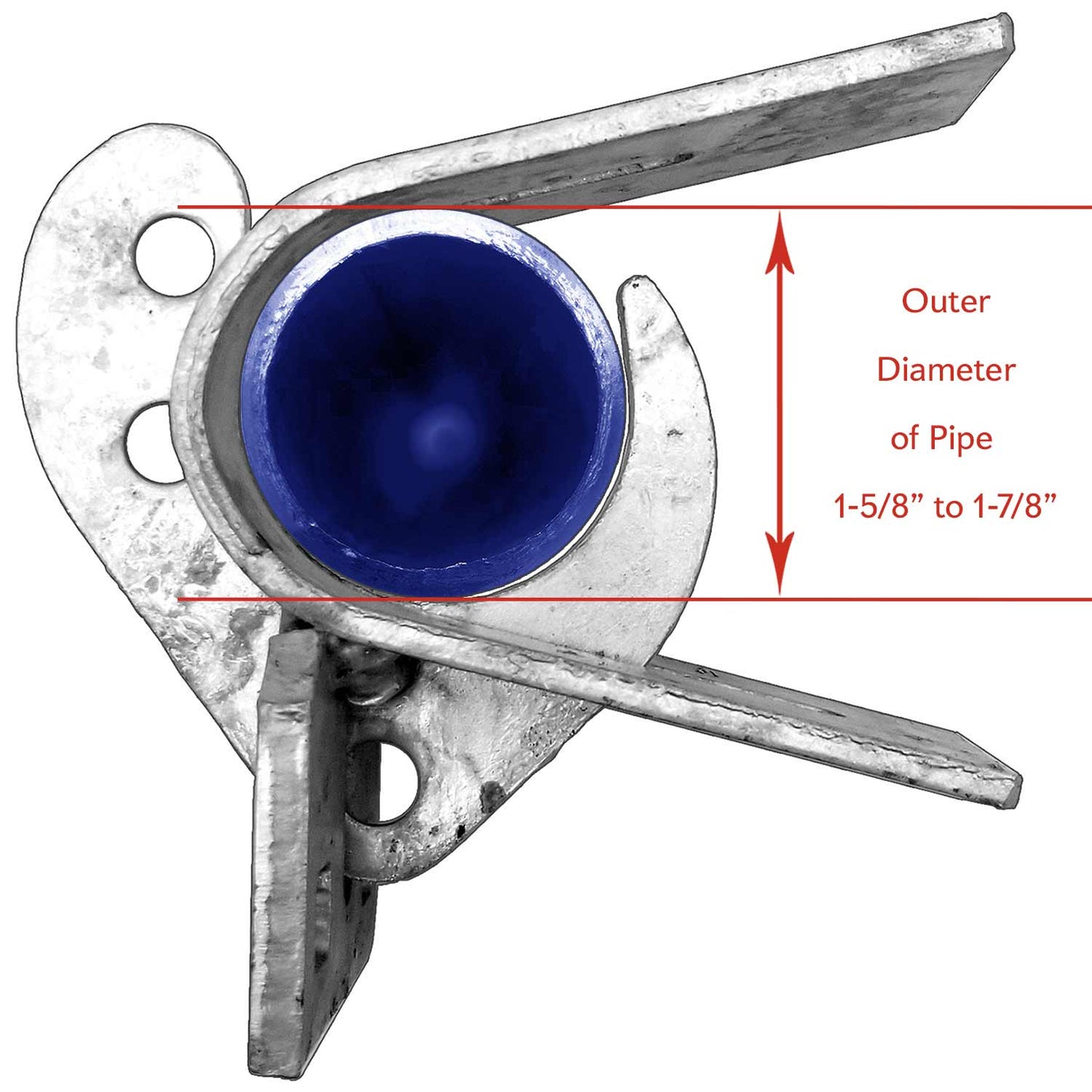

This offset gate latch fits chain link gate frame tubing from 1-5/8 to 1-7/8 inch outside diameter, covering the most common residential and light commercial rolling gate frame sizes.

Can the offset latch be installed on both left and right hand gates?

Check the product listing for reversibility. Many offset latch designs are reversible or available in left and right hand versions to accommodate gate configurations on either side of the opening.

Does the offset gate latch require a receiver post?

Yes. The latch body mounts to the gate frame; a separate receiver or strike mounts to the fence post or wall at the gate closed position. Both pieces must be installed and aligned for the latch to engage correctly.

How do I adjust the offset latch if it is not catching?

Loosen the receiver mounting hardware and reposition the receiver forward, backward, or side to side until the latch bar drops cleanly into the receiver as the gate closes. Retighten the receiver hardware and test the engagement.

Is the offset gate latch self-latching?

Yes. The Lock-N-Latch design is self-latching - the latch bar engages the receiver automatically when the gate slides to the closed position. This makes it suitable for applications requiring a self-latching gate such as pool enclosures.

What material is the offset gate latch made from?

Our offset gate latch is manufactured from galvanized steel for corrosion resistance in outdoor environments.

View full details

The offset gate latch is designed specifically for rolling, sliding, and cantilevered chain link gates where a standard drop latch will not work. The Lock-N-Latch design engages from the side as the gate slides into the closed position, catching automatically. Compatible with 1-5/8 to 1-7/8 inch chain link gate frames.

Rolling Gate Offset Latch ("Lock n Latch")

✔For Rolling, Sliding and Cantilevered Chain Link Fence Gates with 1-5/8" to 1-7/8" Gate Frames
✔Lock N' Latch Style Latch is an OFFSET Latch As Opposed to a Straight on Latch
✔Designed for Chain Link Fence Gates. Can Also Be Used as a Wood Gate Latch If It Latches to a Pipe
✔Latch is Galvanized Steel to Prevent Rust and Corrosion
✔Latch is Mounted to Fence Post Using Brace Bands Based on the Size of Your Latch Post
✔Latch is also Designed to Be Used With a Padlock For Security


Needing Brace Bands for Mounting?  Available Here - Follow the Link

Installation Instruction  Available Here
