1-3/8" x 1/2" Chain Link Gate Frame Hinge with Bolt – Galvanized Female Hinge

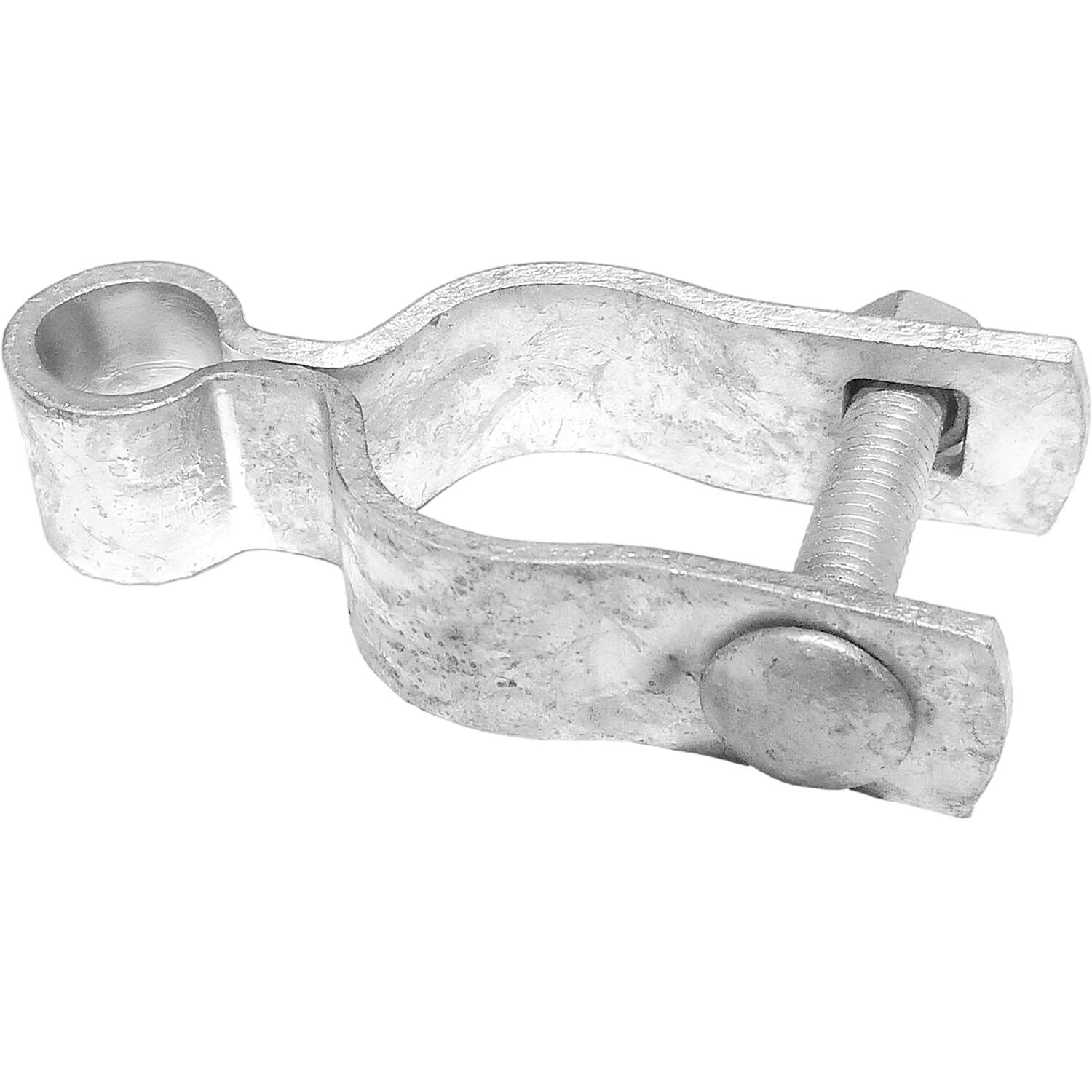

This 1-3/8" x 1/2" Gate Frame Hinge (also called a female gate hinge) is a essential hardware component for building or repairing chain link fence gates.

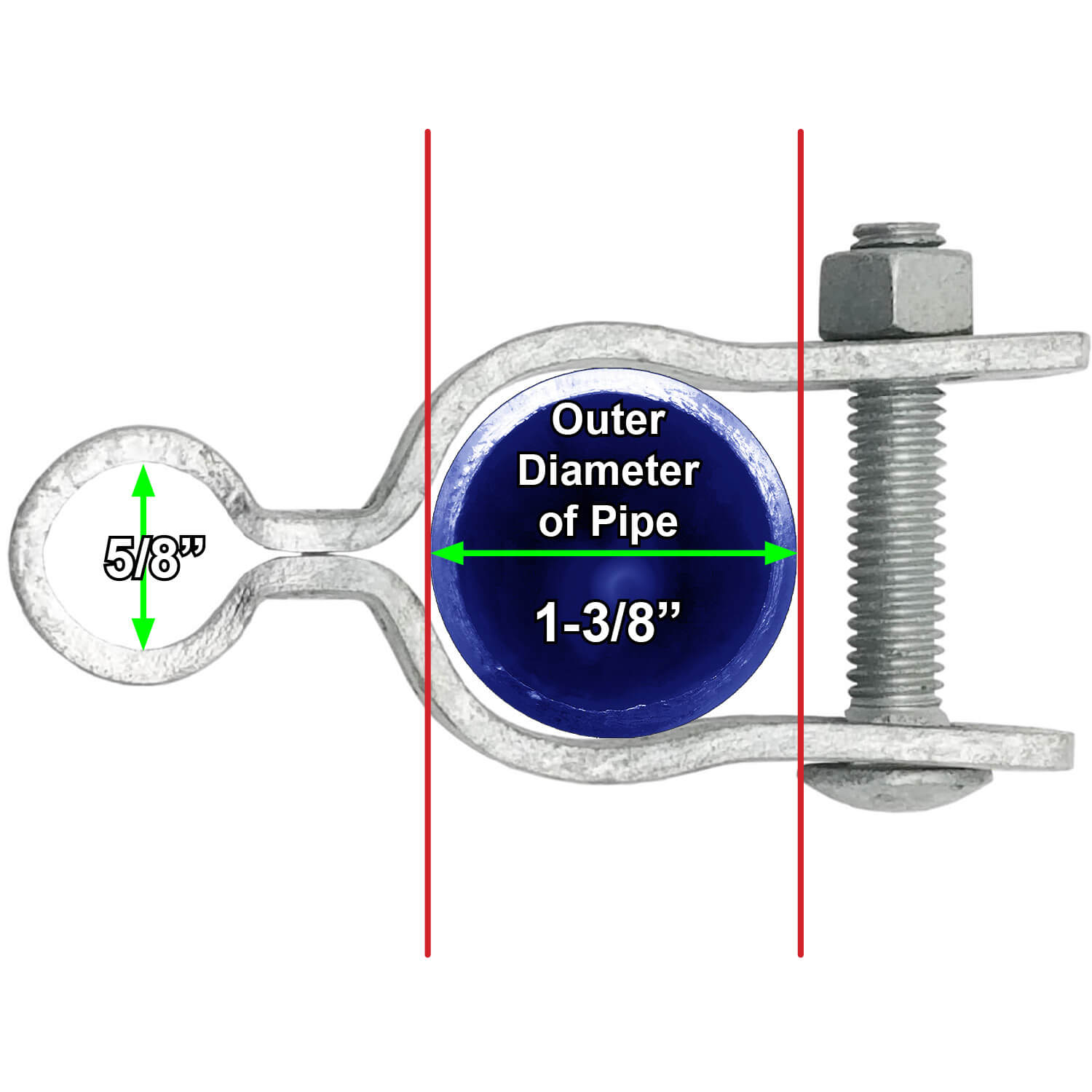

This gate frame hinge clamps onto standard 1-3/8" O.D. gate frame tubing and features a 1/2" pin/receptor hole that fits over a matching male gate post hinge pin. This allows your gate to swing freely and reliably.

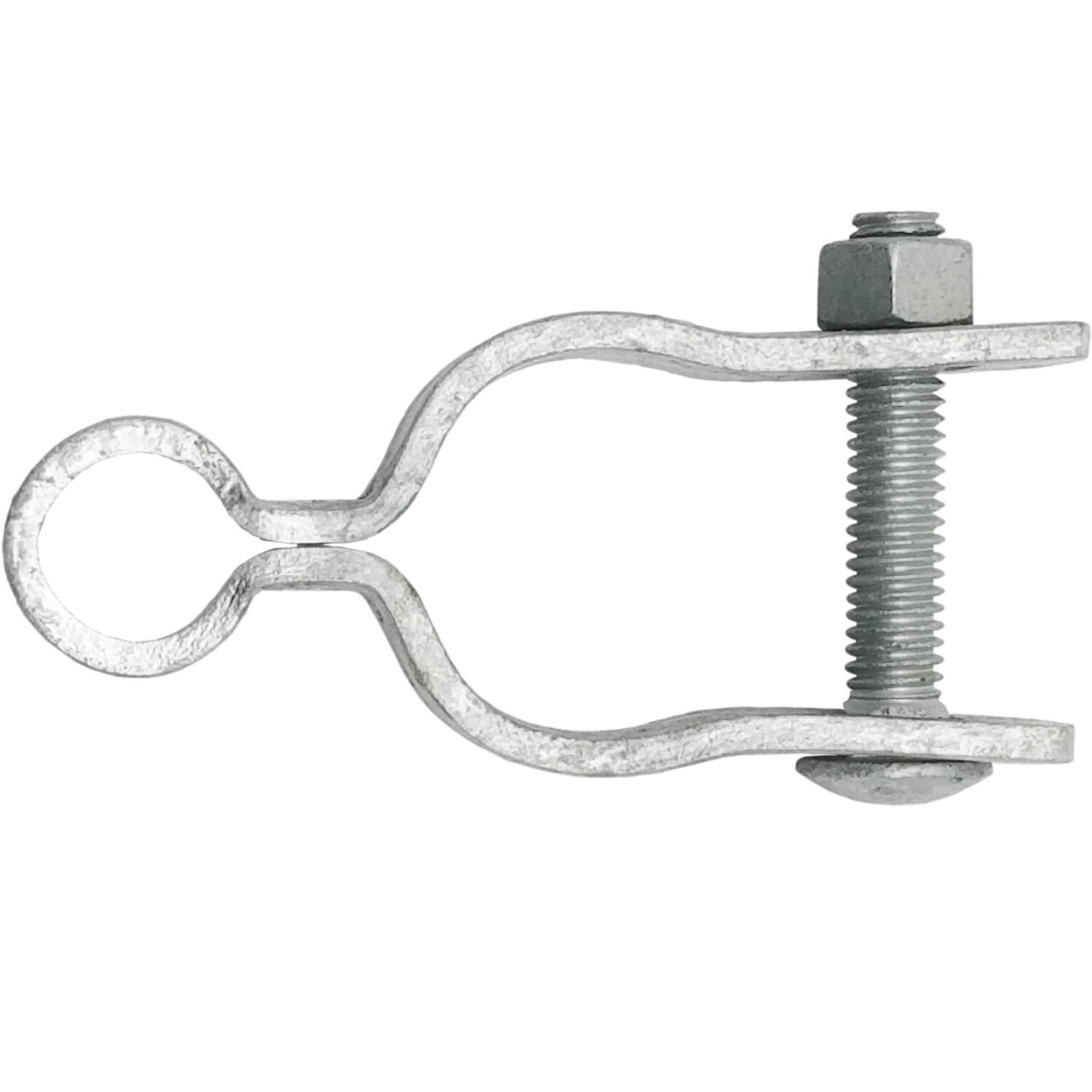

The hinge comes complete with a carriage bolt and nut for easy installation directly to the gate frame.

Key Features:

• Fits 1-3/8" outside diameter chain link gate frames
• 1/2" pin hole (receptor) – compatible with standard 1/2" male gate hinges/pintles
• Includes carriage bolt & nut for secure attachment
• Made of durable galvanized steel for rust resistance and long outdoor life
• Heavy-duty pressed steel construction

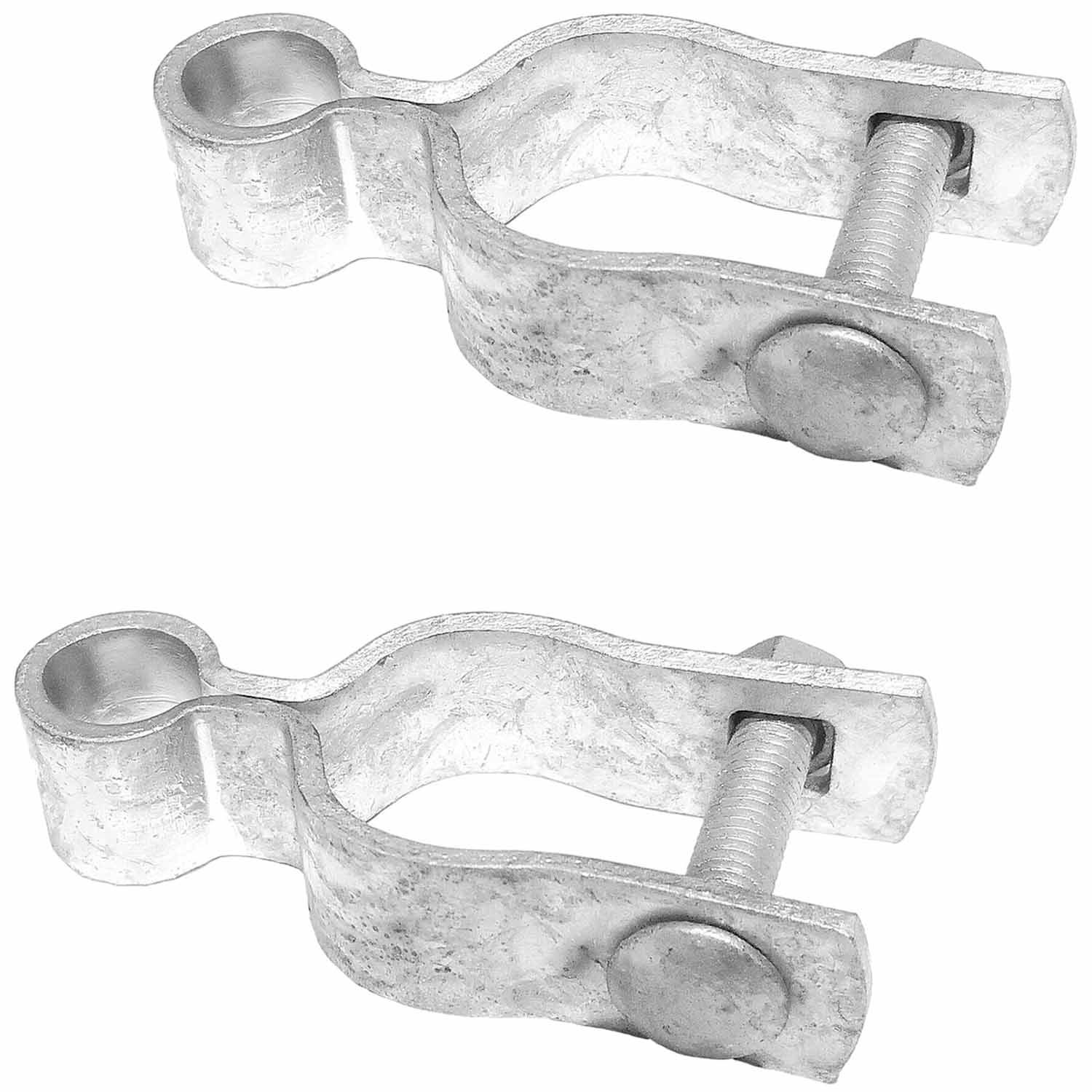

• Typically requires 2 hinges per walk gate (sold individually)

Common Uses:

• Chain link fence walk gates
• Residential and light commercial gate installations
• Replacing worn or damaged gate hinges
• Tubular framed gates on chain link systems

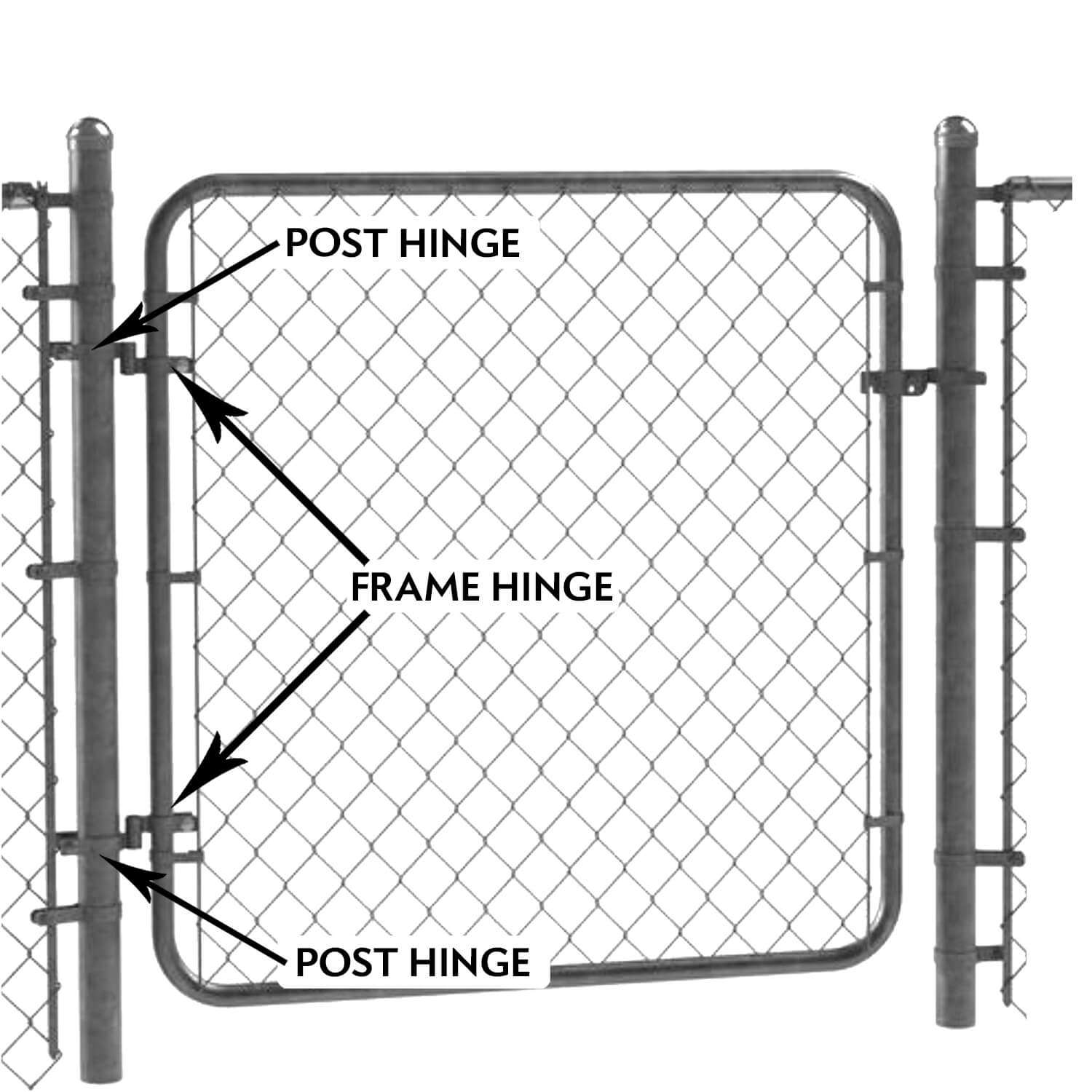

Note: This is the female (frame) hinge that attaches to the moving gate. You will also need a matching male hinge on the gate post.

Installation Tip: Use a 3/8" x 2" carriage bolt (included) to clamp the hinge firmly to the gate frame. Two hinges are recommended for proper support on most gates.

Technical Specifications:

• Gate Frame Size: 1-3/8" O.D.
• Pintle Hole Size: 1/2"
• Material: Galvanized Steel
• Includes: Hinge + Carriage Bolt & Nut
