Galvanized Hinge - Heavy Duty Wood Gate Strap Hinges
Galvanized Hinge - Heavy Duty Wood Gate Strap Hinges
8 INCH Each
GS1: 840129228097
Delayed Delivery Item
Couldn't load pickup availability
What is a strap hinge used for?
What is a strap hinge used for?
Strap hinges are used for wood gates and barn doors where a surface-mount hinge with a long arm is needed to support the gate weight. The long strap distributes load across multiple screws into the gate for more support than a butt hinge.
What is the difference between a hook and strap hinge and a regular strap hinge?
What is the difference between a hook and strap hinge and a regular strap hinge?
A hook and strap hinge has a separate hook that mounts to the post and a strap that hooks onto it, allowing the gate to be lifted off without removing screws. A regular strap hinge is permanently pinned and cannot be removed without tools.
How do I choose the right size strap hinge for my wood gate?
How do I choose the right size strap hinge for my wood gate?
Match the strap length to your gate width. A common rule is to use strap hinges at least 1/3 the width of the gate for adequate support. For a 4-foot gate, use strap hinges at least 16 inches long. Heavier and wider gates need longer, heavier-rated hinges.
What is the difference between lag screw and J-bolt mounting?
What is the difference between lag screw and J-bolt mounting?
Lag screw hinges use large lag screws that thread into the post for a secure hold without through-bolting. J-bolt hinges are embedded in the post foundation during concrete pouring for a permanent, non-removable installation.
Are hot-dip galvanized strap hinges rust-proof?
Are hot-dip galvanized strap hinges rust-proof?
Hot-dip galvanized hinges are highly corrosion resistant and suitable for decades of outdoor use under normal weather conditions. In coastal salt-air or continuously wet environments, stainless steel strap hinges provide longer corrosion-free service.
How many strap hinges do I need for a wood gate?
How many strap hinges do I need for a wood gate?
Use 2 strap hinges per standard residential wood gate up to 6 feet tall and 4 feet wide. For larger or heavier gates, 3 hinges provide better load distribution and reduce long-term sag.
What is the maximum gate weight a strap hinge can support?
What is the maximum gate weight a strap hinge can support?
Weight capacity depends on hinge size, mounting screw quality, and post material. Most residential strap hinges support gates up to 100 lbs per pair. For heavier gates, select hinges rated for the actual gate weight.
Can I use strap hinges for an arched gate?
Can I use strap hinges for an arched gate?
Strap hinges work on any gate style including arched gates, provided the strap mounts to the gate frame at the correct hinge positions and the post hinge pin aligns properly.
How do I lubricate galvanized strap hinges?
How do I lubricate galvanized strap hinges?
Apply a light oil or silicone spray to the hinge pin and pivot point annually to prevent squeaking and reduce wear. Avoid petroleum-based lubricants that can attract dirt and dry out over time.
What screws should I use with lag-mount strap hinges?
What screws should I use with lag-mount strap hinges?
Use the lag screws specified in the hinge installation instructions, typically 5/16 or 3/8 inch diameter, long enough to penetrate 2 to 3 inches into solid wood post material beyond the hinge plate.
Our galvanized hinges are heavy-duty strap hinges constructed from galvanized steel for maximum outdoor durability. The hook-and-strap design provides the large bearing surface needed for wood gates. The long strap arm distributes the gate weight across multiple screw points. Available with lag screw or J-bolt post mounting.

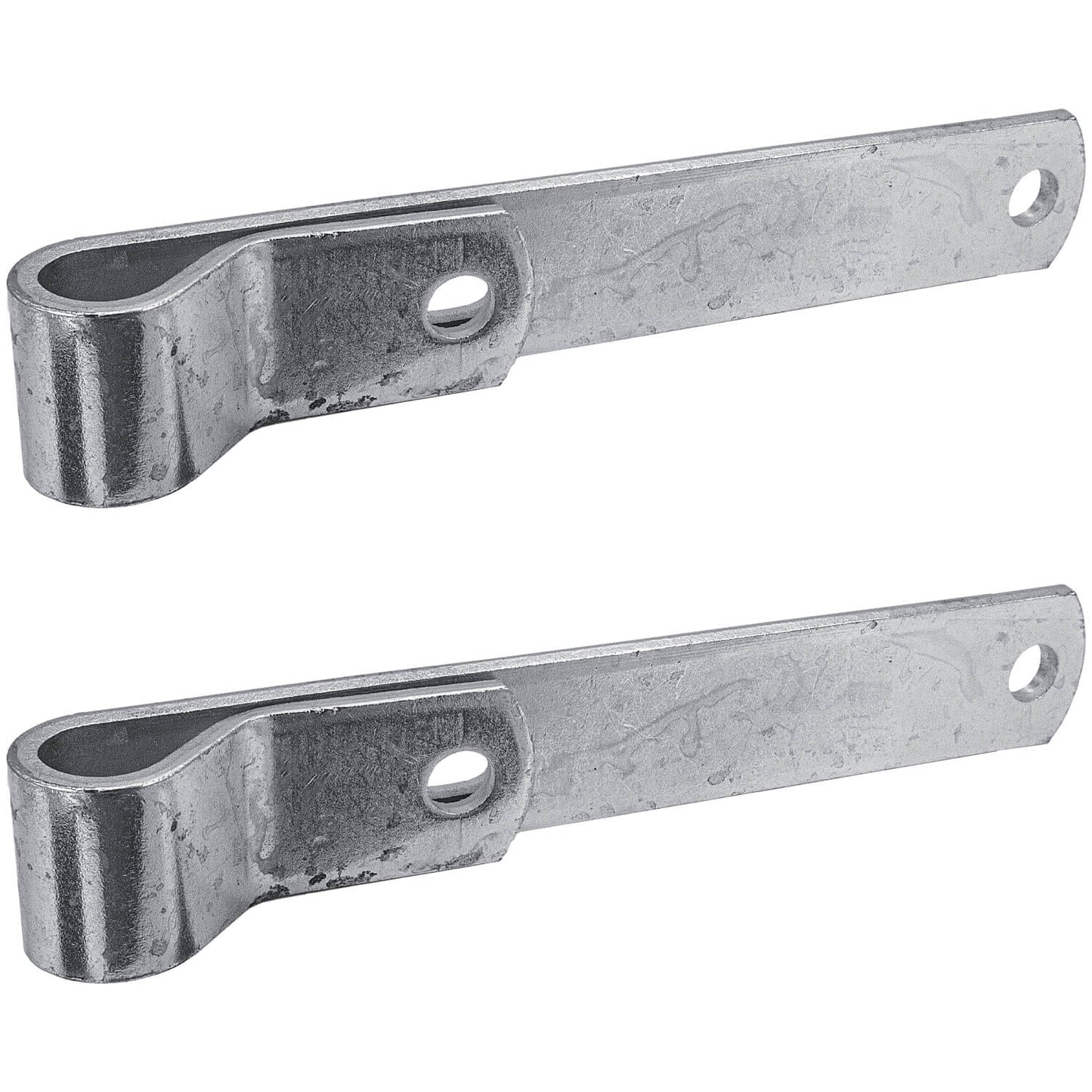

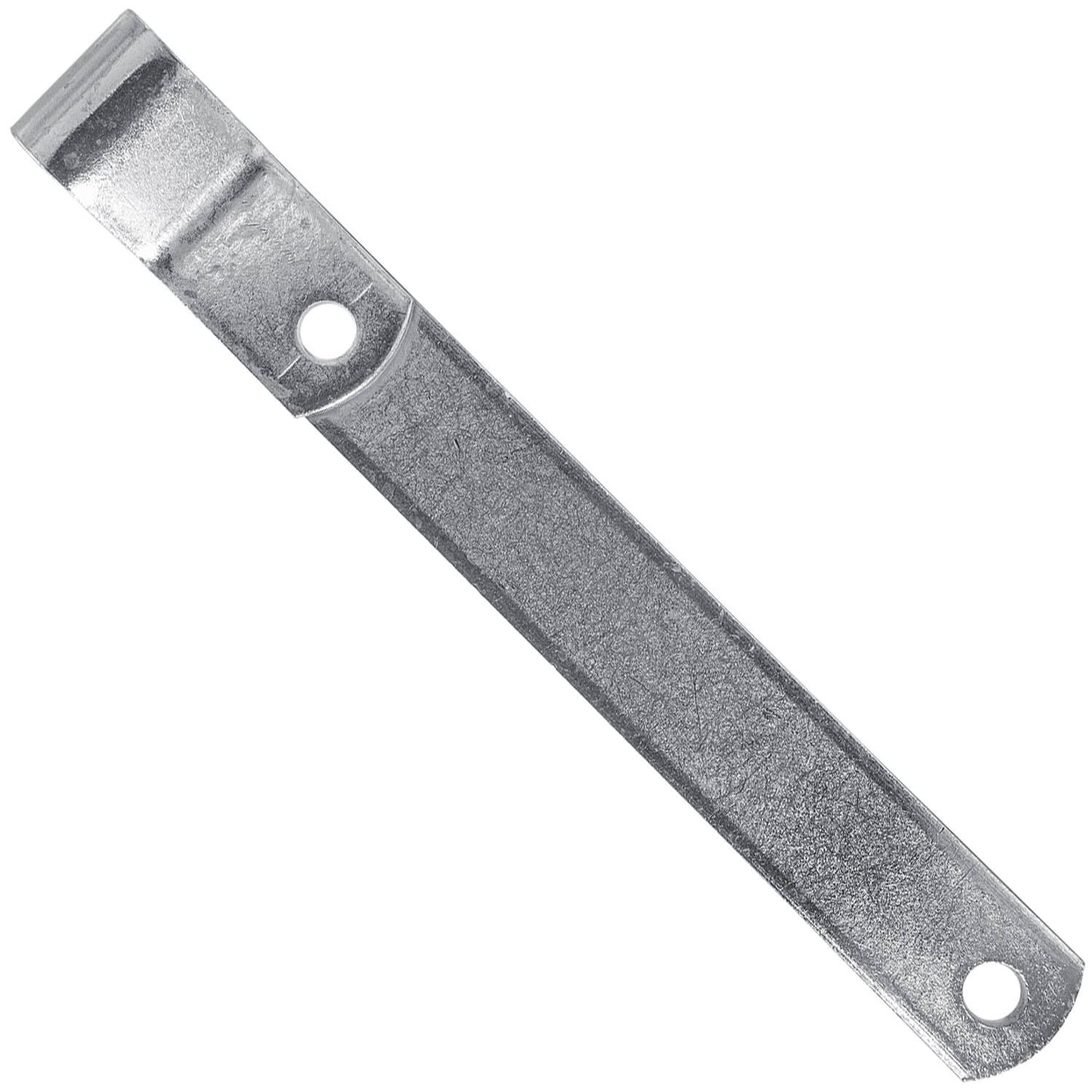

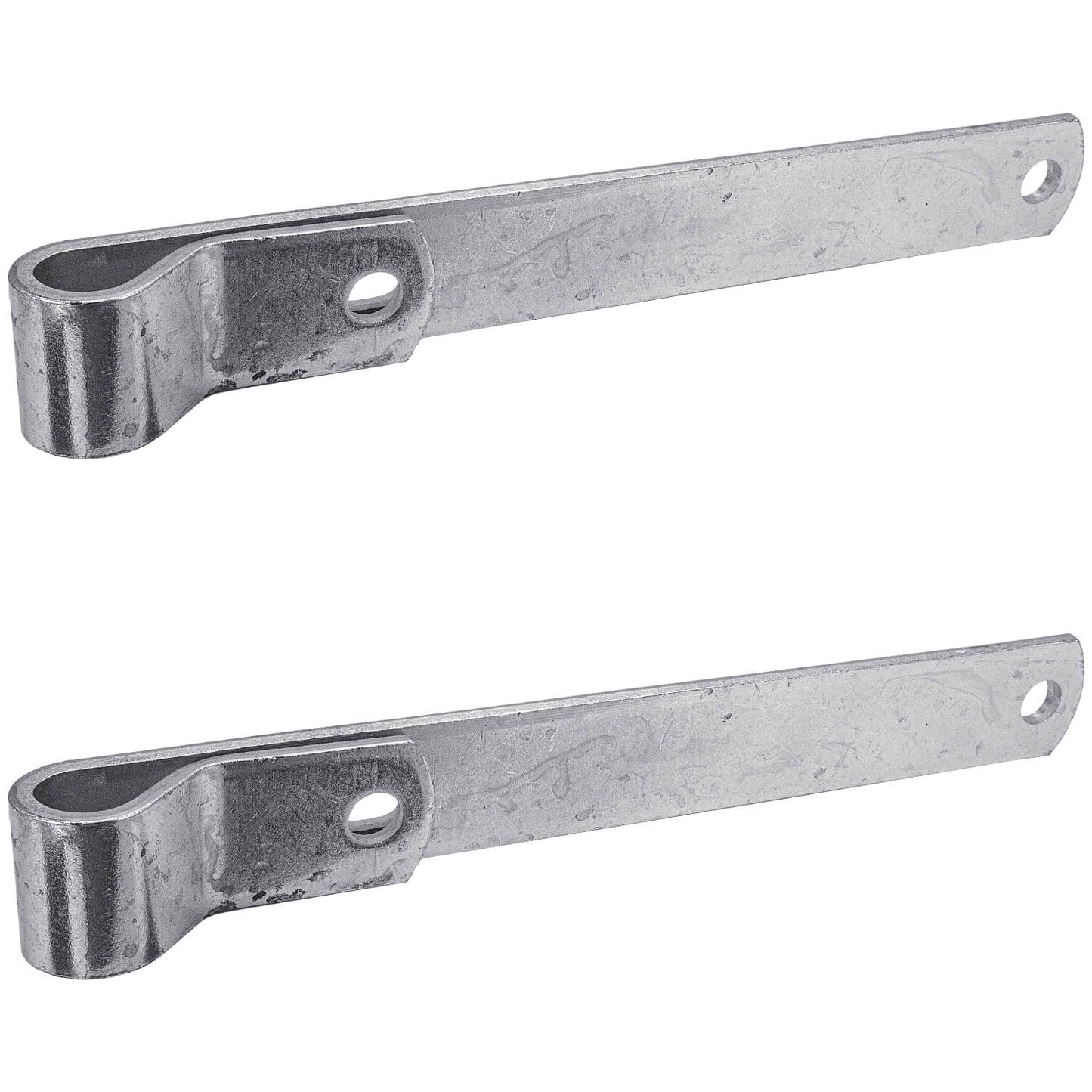

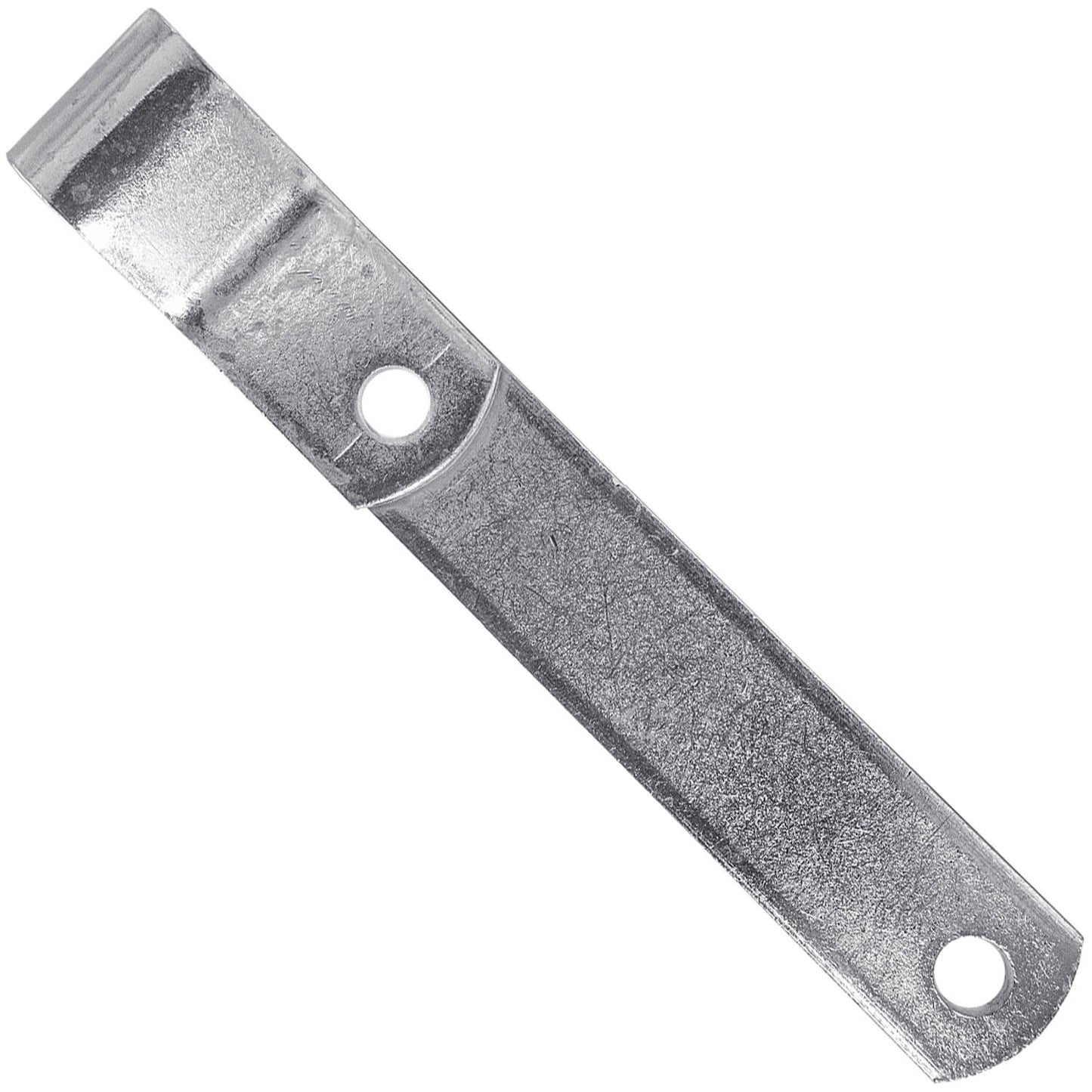

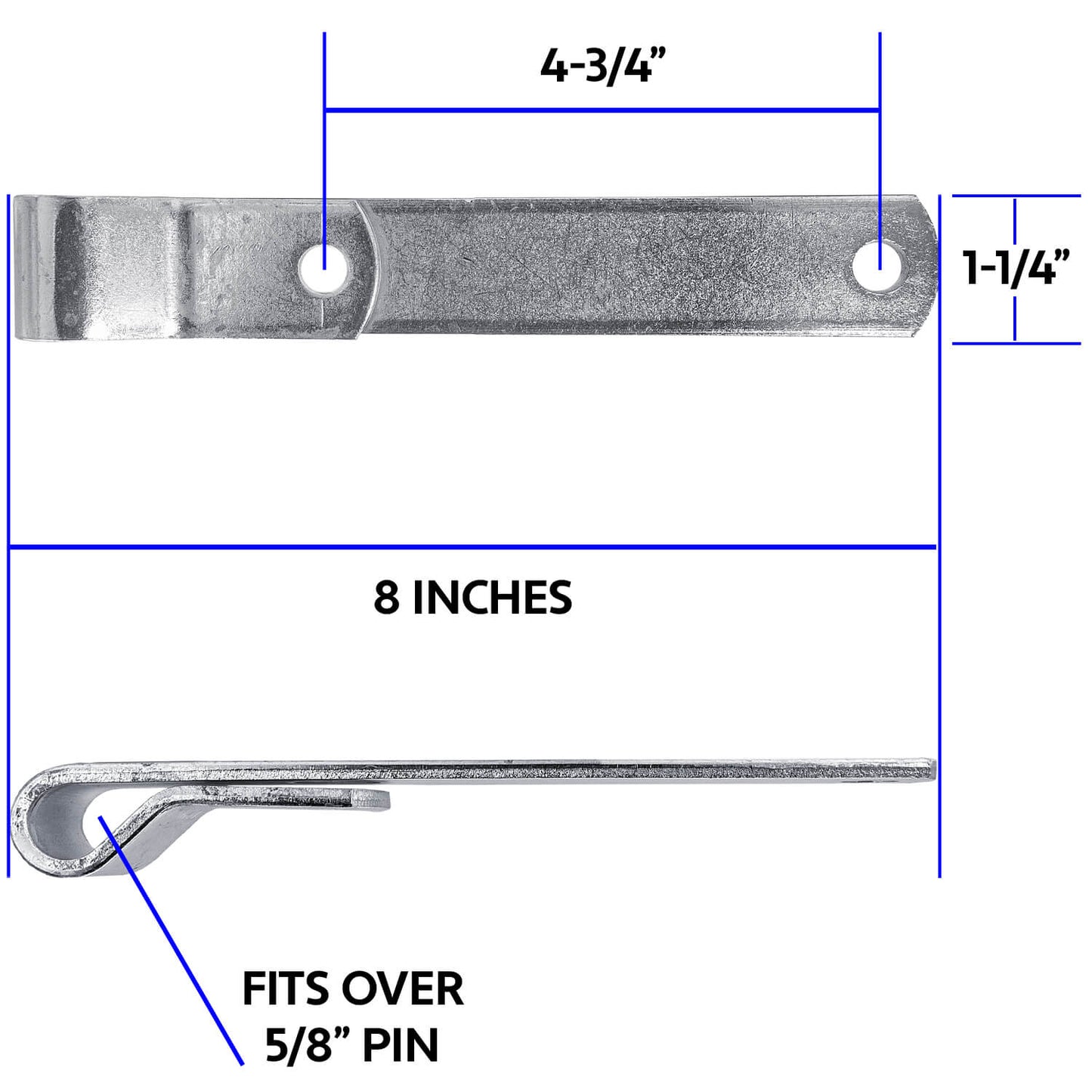

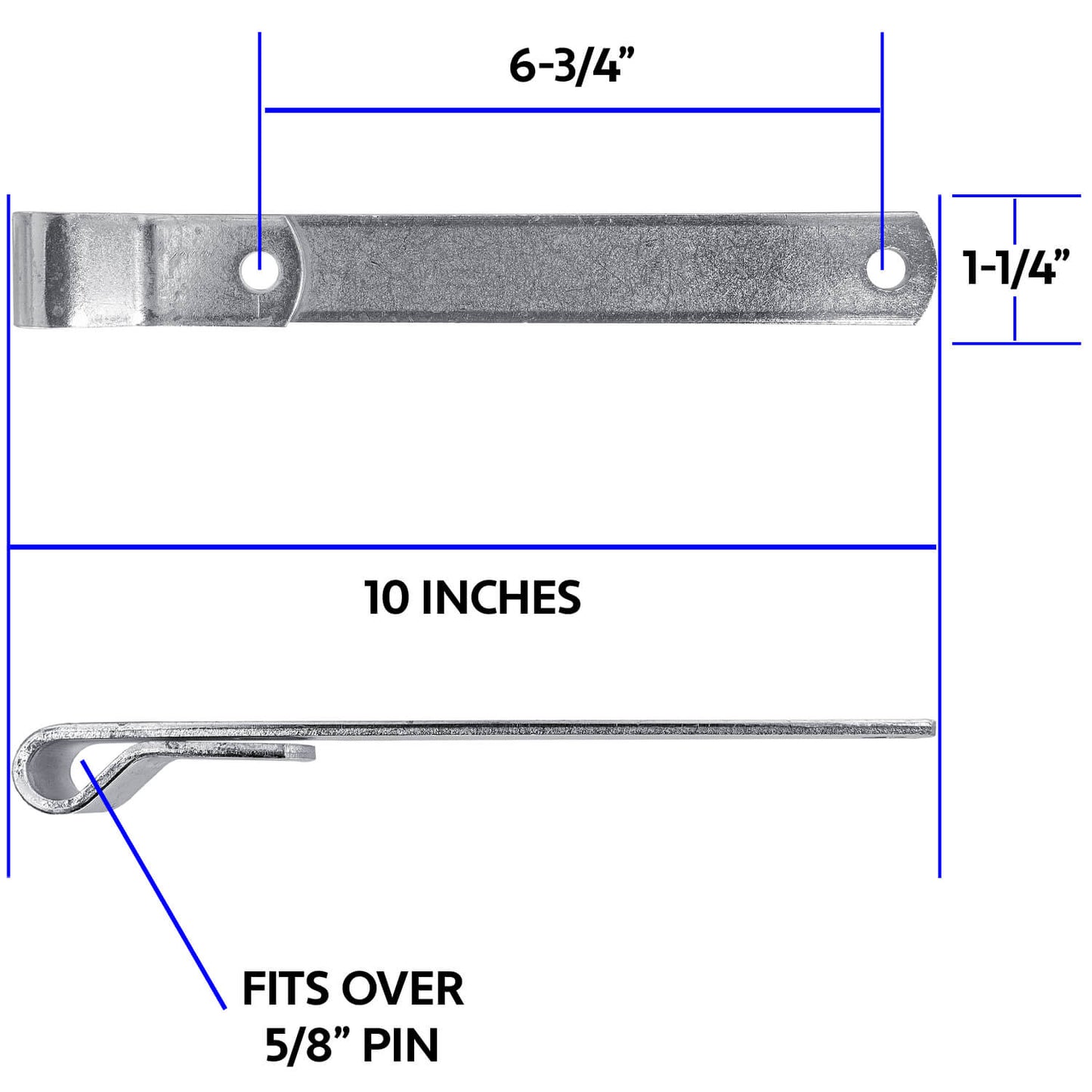

Heavy Duty Strap Hinge Galvanized in 8 Inch and 10 Inch Sizes
✔Heavy Duty Strap Hinge Made of Galvanized Steel to Prevent Corrosion and Rust
✔Use in Conjunction with Lag Screw or J-Bolt Post Hinge with 5/8" Mounting Pin

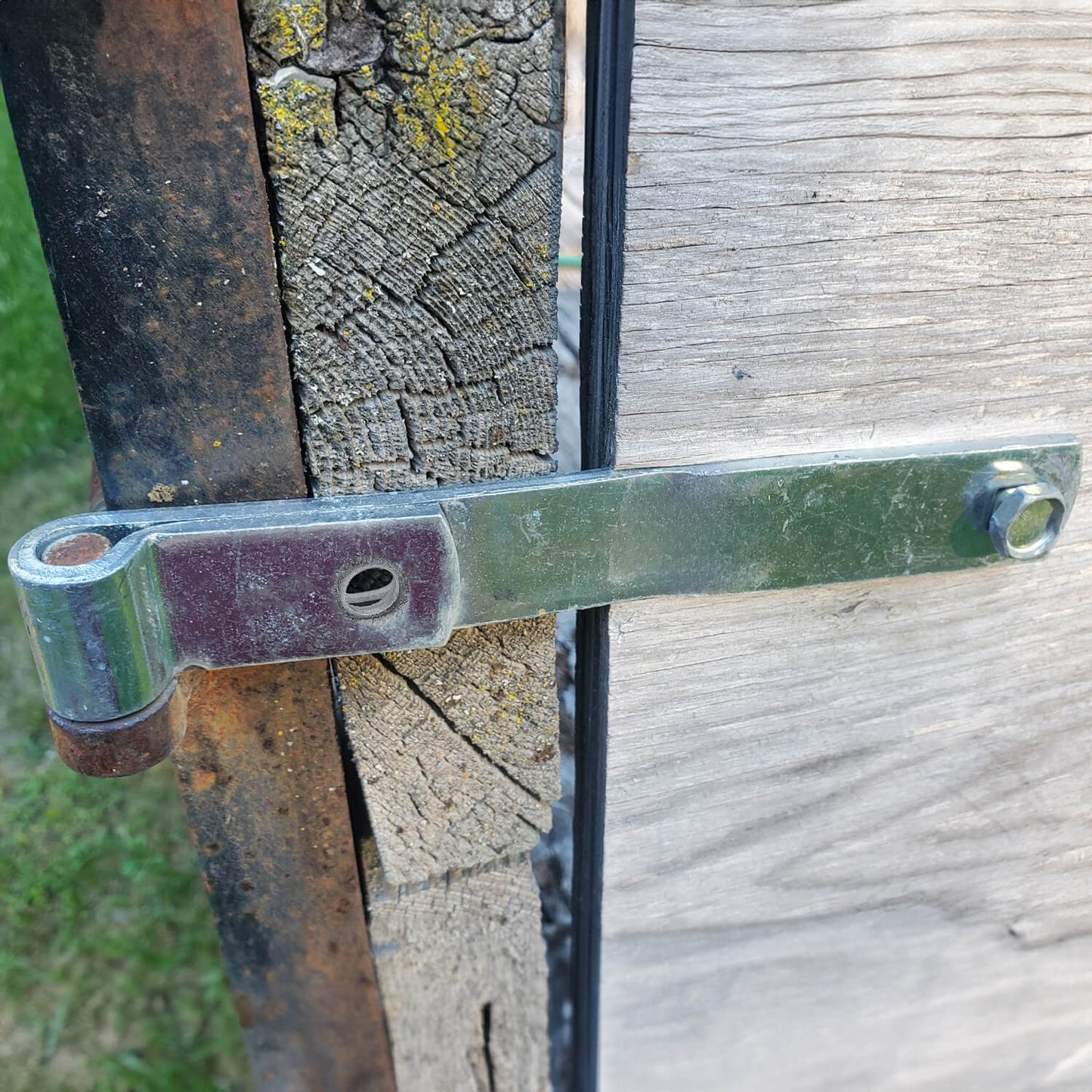

✔For Mounting Wood Gate to Post or Structure
Installation Instructions - Available Here
