Chain Link Fence T Connector - End Clamp Panel T-Clamp

Chain Link Fence T Connector - End Clamp Panel T-Clamp

1-3/8" x 1-3/8" Each

Regular price $21.95 USD
Regular price
Retail price
$28.99 USD
Sale price $21.95 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping Over $50

GS1: 840129212843

Delayed Delivery Item

PRODUCT SIZE: 1-3/8" x 1-3/8"
PACKAGE SIZE: Each
Quantity
In-Stock Orders Will Ship Within
0
Hours
0
Minutes
0
Seconds
Excluding Holidays

What is a chain link fence T connector?

A chain link fence T connector (end clamp/T-clamp) attaches a fence panel perpendicularly to an existing fence section, forming a T-intersection. It clamps around both pipes and bolts tight, creating a rigid connection without a separate terminal post.

What size T connector do I need?

T connector size must match the outside diameter of your fence tubing. Standard residential chain link uses 1-3/8 inch tubing; heavier residential and commercial uses 1-5/8 inch tubing. Measure the outside diameter of both pipes before ordering.

Can T connectors be used for dog kennel dividers?

Yes. T connectors are commonly used in dog kennel construction to attach divider panels to the main kennel perimeter fence without installing additional posts. They provide a clean, secure connection.

How is a T connector different from a regular fence clamp?

A regular fence clamp attaches hardware (tension bars, brace rails) to a single post tube. A T connector clamps two perpendicular fence tubes together, creating a structural connection between two fence sections.

How do I install a chain link fence T connector?

Position the connecting fence panel perpendicular to the existing fence run. Slide the T-clamp over both pipes at the intersection, insert the carriage bolt, and tighten the nut until the clamp is firmly secured and the panel does not move.

Can T connectors be used on both 1-3/8 and 1-5/8 inch tubing simultaneously?

No. T connectors are made in matched sizes (1-3/8 x 1-3/8 or 1-5/8 x 1-5/8). Both pipes must be the same size. If you need to connect tubing of different diameters, a custom adapter or different hardware is required.

Are chain link fence T connectors reusable?

Yes. T connectors can be unbolted, repositioned, and reinstalled. This makes them ideal for temporary fence configurations or dog kennels that need to be reconfigured periodically.

How many T connectors do I need per panel intersection?

Use one T connector at each height where the connecting panel meets the existing fence. For a 6-foot fence, use one T connector near the top and one near the bottom of the connecting panel for a secure, rigid joint.

Do T connectors require any special tools to install?

A wrench or socket set is the only tool required. The carriage bolt and nut tighten with standard hand tools. No welding, drilling, or power tools are needed.

Will a T connector work on curved fence sections?

T connectors are designed for perpendicular (90-degree) connections between straight fence sections. They are not suitable for angled connections on curved or diagonal fence runs where a custom solution would be needed.

View full details

Our chain link fence T connector (also called an end clamp or panel T-clamp) connects a chain link fence panel perpendicularly to an existing fence run, creating a T-intersection without requiring a traditional terminal post. Available in 1-3/8 x 1-3/8 and 1-5/8 x 1-5/8 inch sizes.

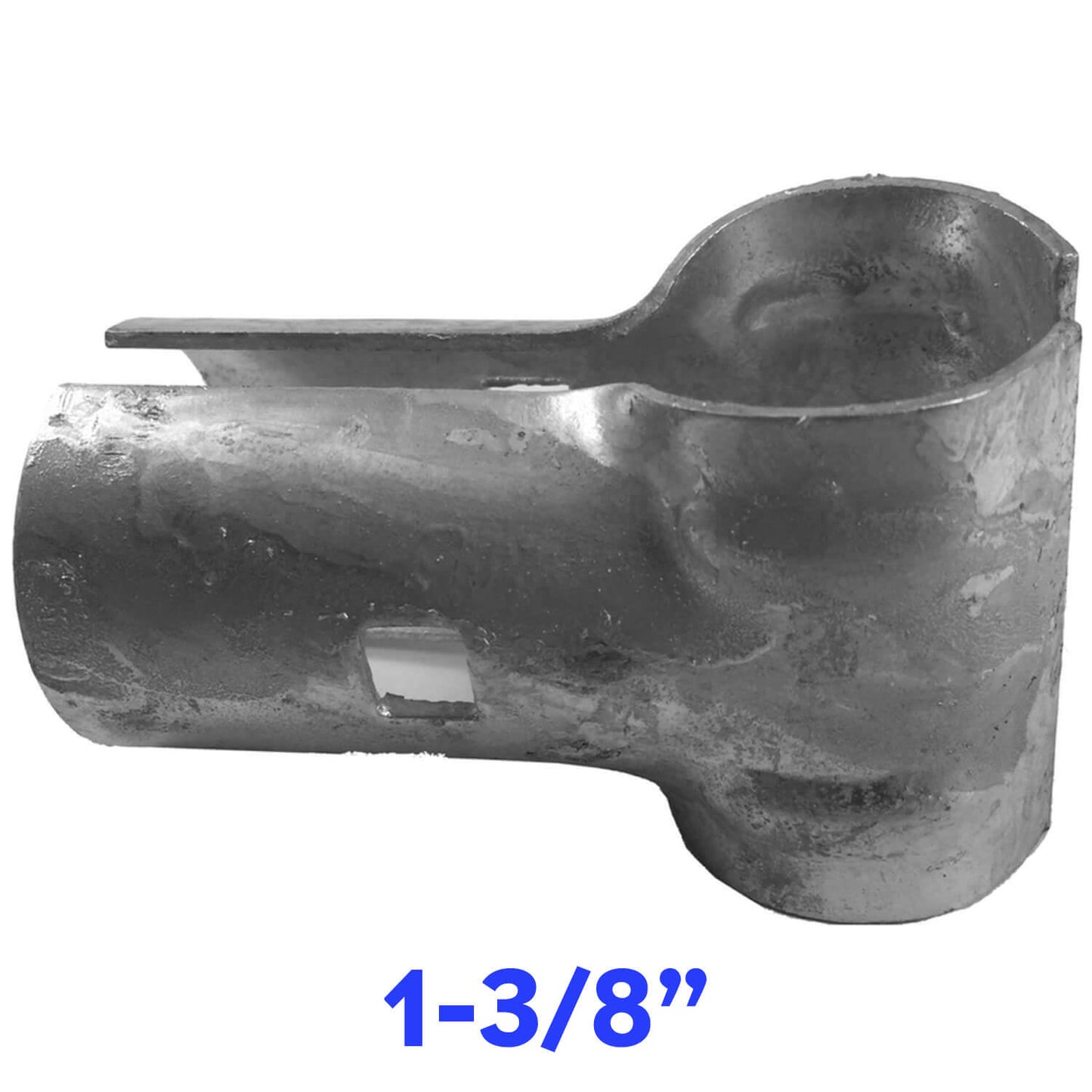

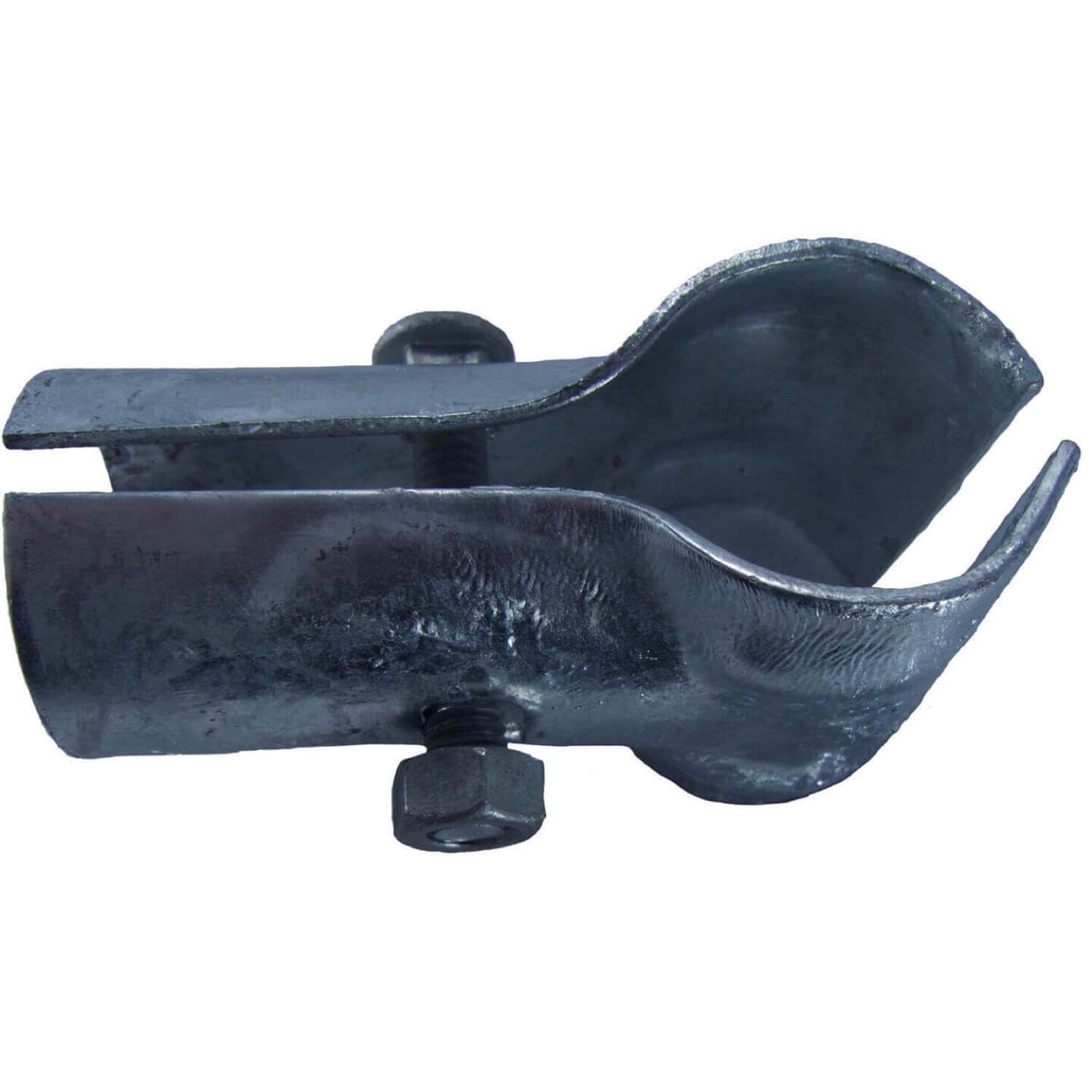

END CLAMP / PANEL T CLAMP - Chain Link Fence Clamp for T-ing into a pipe of exact dimensions. 1-3/8" x 1-3/8" or 1-5/8" x 1-5/8"

T-clamp allows you to "Tee" into a another chain link fence pipe of equal diameter
Use for making extensions to an existing fence, connecting chain link fence panels, and more.
These end clamps are galvanized for long term exterior use. End/T clamps are easy to install.
Depending on what you are making you might want to purchase these in pairs one for each pipe end.
Hardware (nut and bolt) is included


Measure The Outside Diameter of Your Chain Link Pipe Prior To Ordering. See Graphic on How to Properly Measure The Outer Diameter of Fence Pipe / Top Rail

Installation Instructions Available Here -
