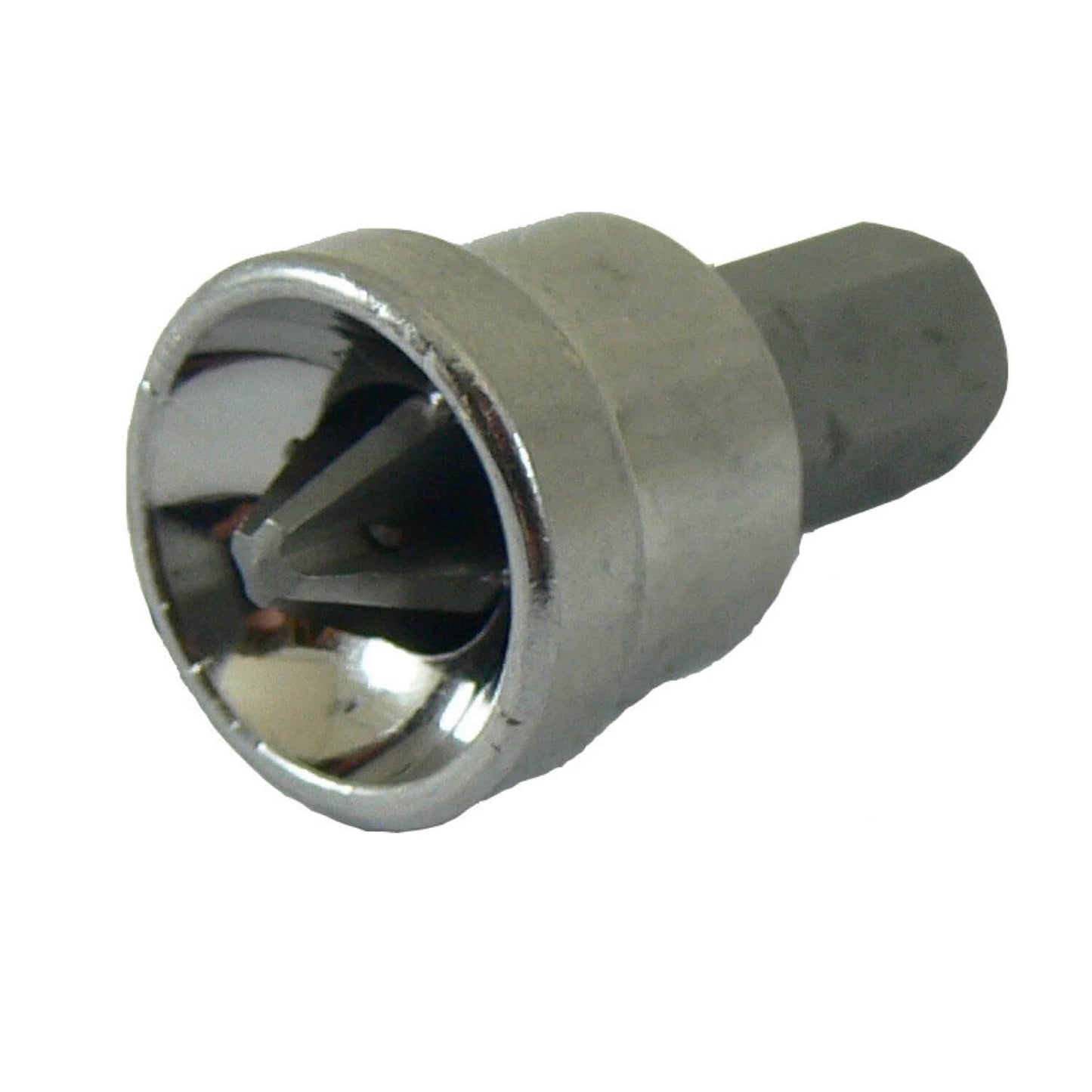

A drywall bit drives drywall screws to a precise depth, creating a small dimple just below the surface without breaking the paper facing. The dimple is then filled with joint compound for a smooth finish.

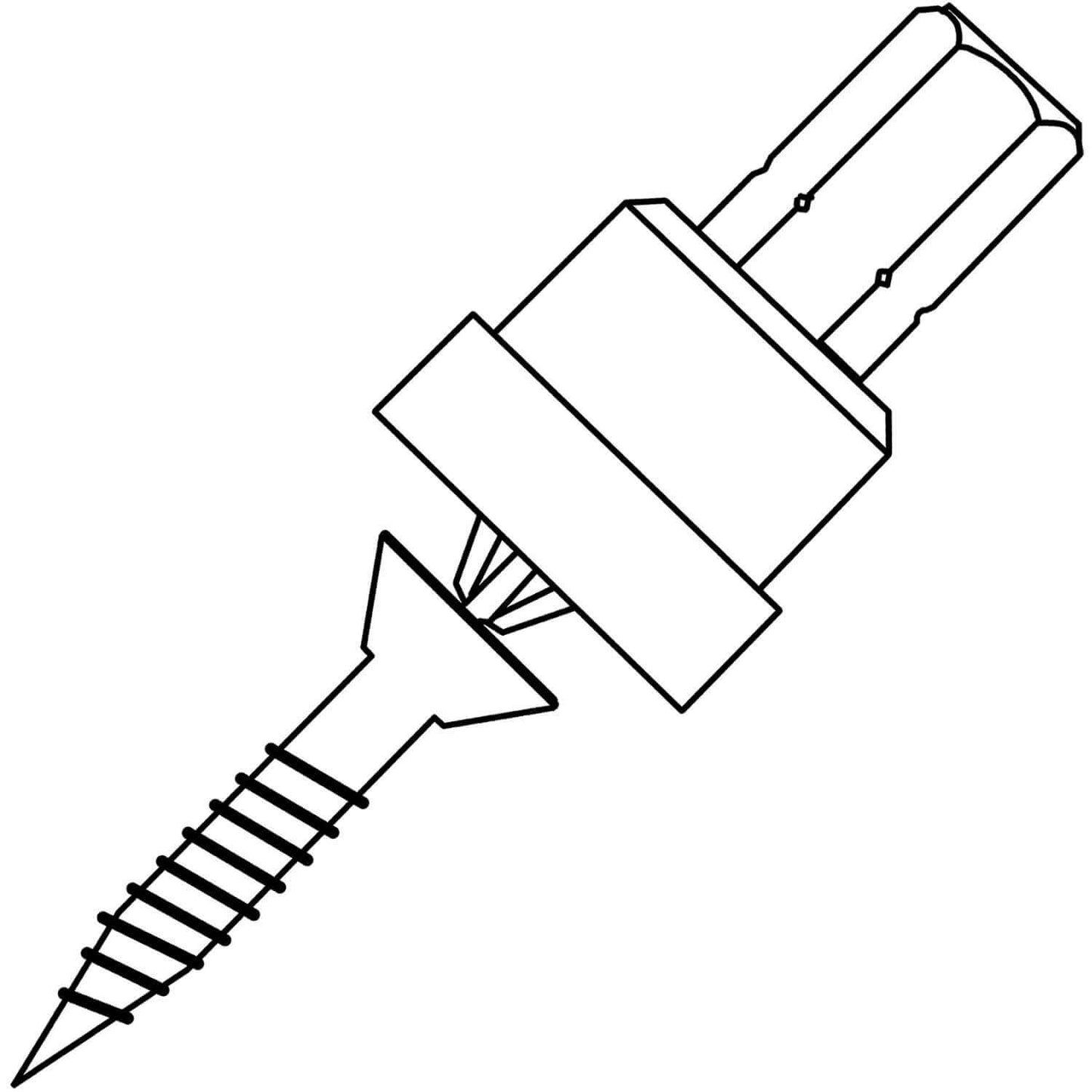

A drywall dimpler has a built-in depth collar that stops the screw at a set depth. A regular Phillips bit has no depth control and can easily overdrive or underdrive, damaging the drywall or leaving the head too high.

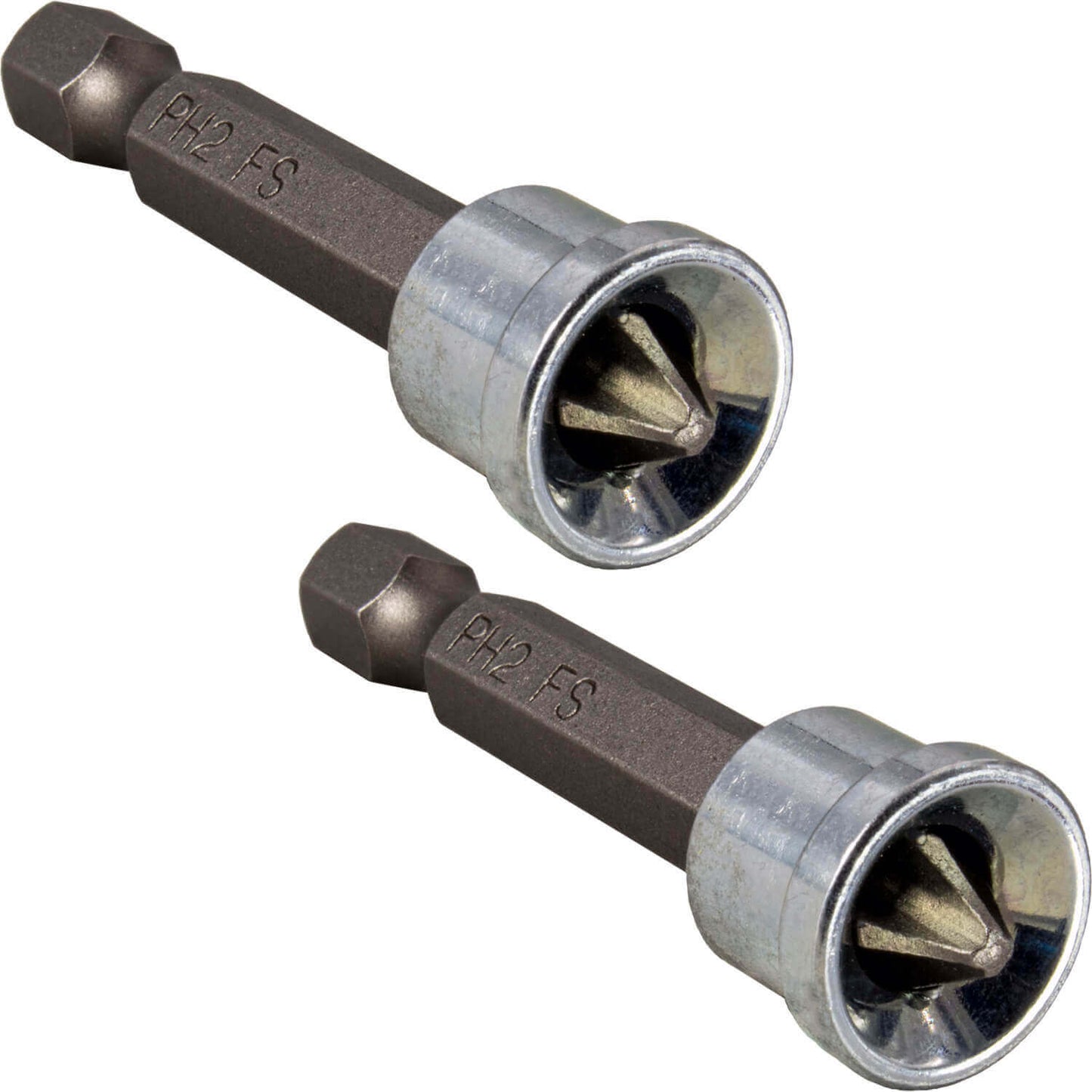

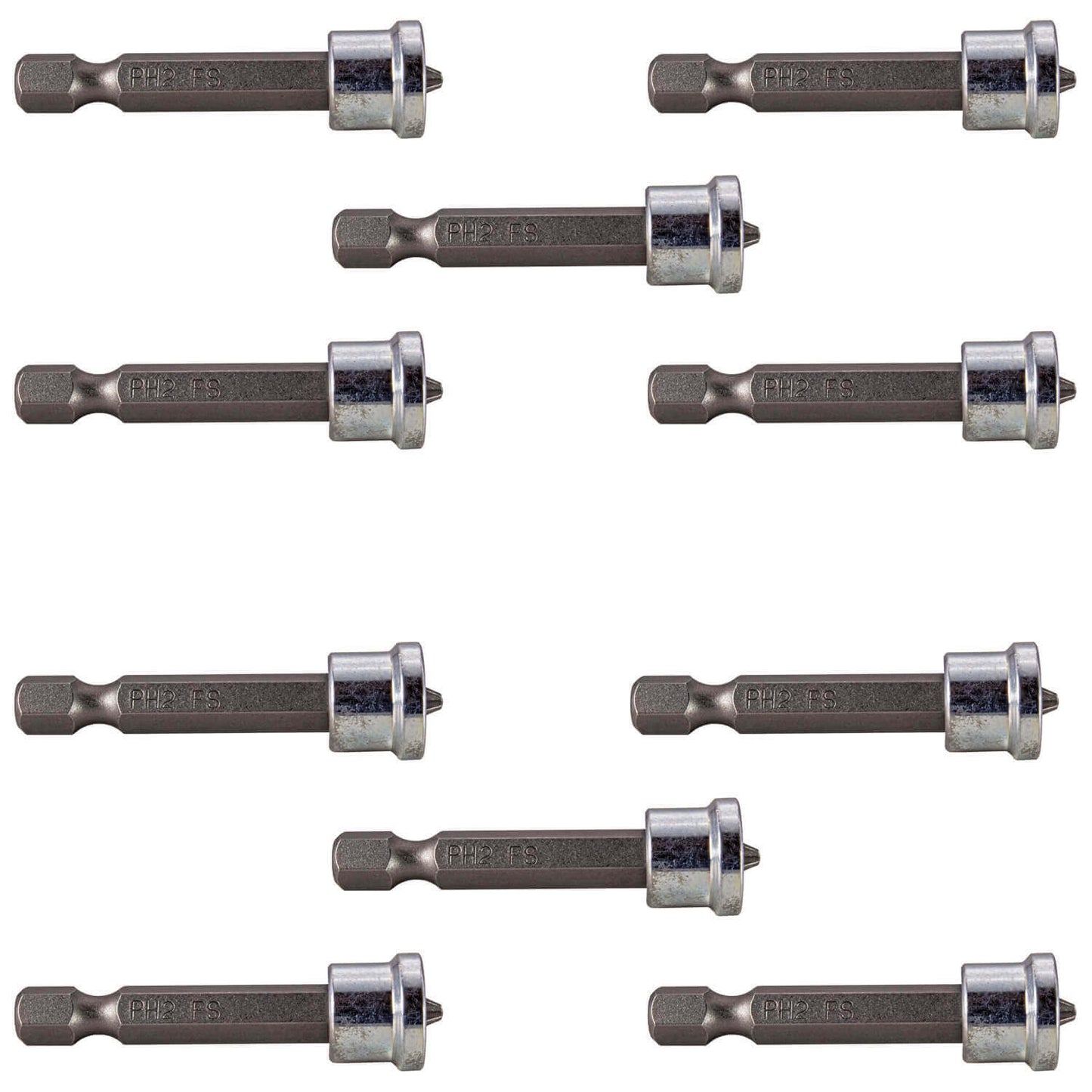

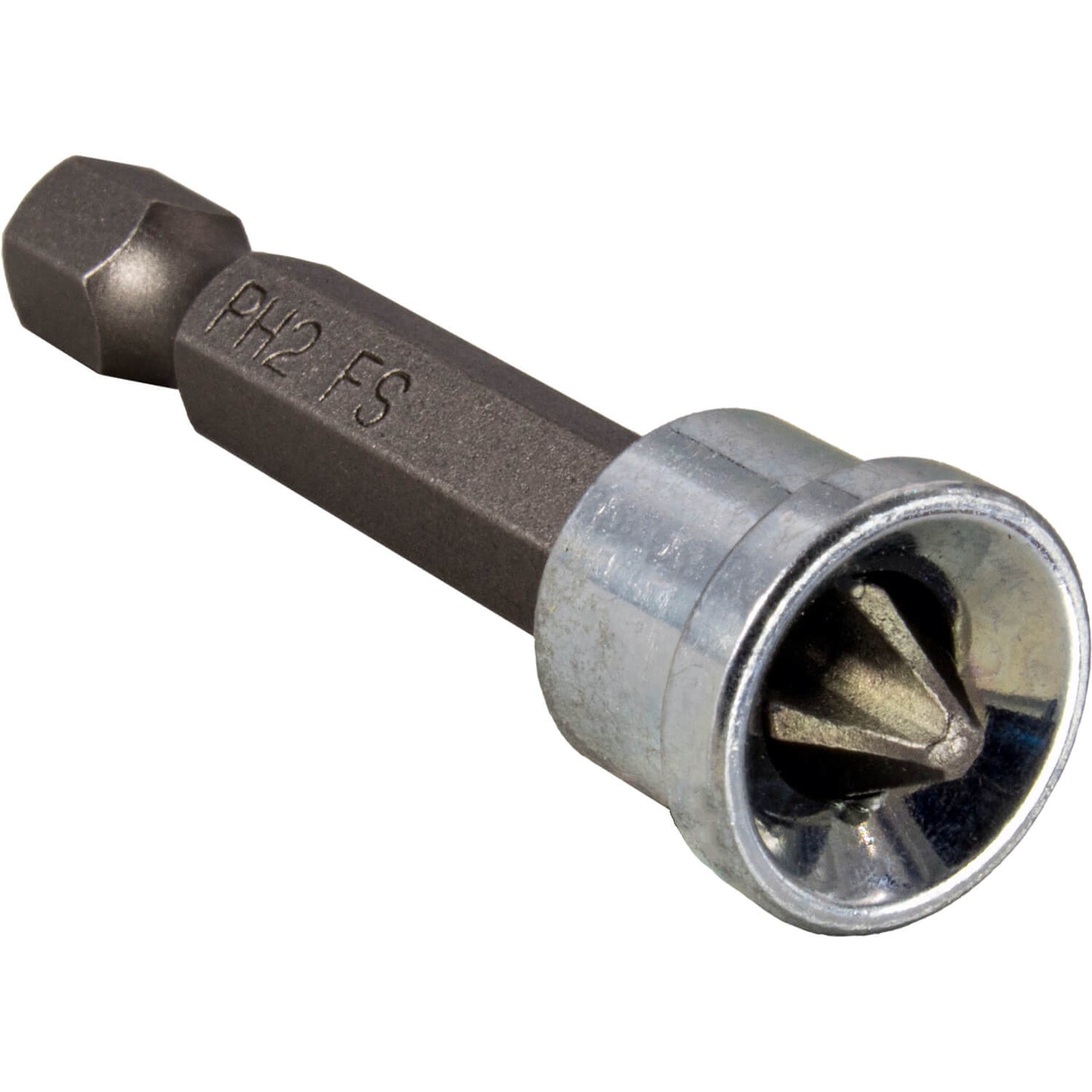

This drywall bit uses a 1/4 inch quick-change hex shank, compatible with all standard cordless drills and dedicated drywall screw guns.

Yes. Any drill that accepts a 1/4 inch hex shank bit can use a drywall dimpler. For high-volume drywall hanging, a dedicated drywall screw gun with a collated screw attachment is faster.

The standard #2 Phillips drywall dimpler works with #6 and #8 drywall screws, which are the two most common sizes for attaching 1/2 inch and 5/8 inch drywall to wood or metal studs.

Most drywall dimplers have a fixed depth collar set at the factory for the correct dimple depth. Some adjustable models allow you to thread the collar in or out to fine-tune the screw depth.

If the screw is too shallow, the head stands proud of the surface and creates a bump under the joint compound. If too deep, it tears the paper facing and loses holding power. The correct depth creates a clean dimple that fills perfectly.

The drywall dimpler is designed specifically for drywall screws. Using it for other applications is not recommended because the depth collar limits the screw depth in ways that may not be appropriate for other materials.

A quality drywall bit typically handles thousands of screws before the Phillips tip shows significant wear. Tip wear is visible as rounding of the four wings. Replace the bit when it begins slipping in screw heads.

The same drywall dimpler works for both wood and metal studs. However, self-drilling drywall screws (S-point) are required for metal studs, while standard sharp-point screws are used for wood.
