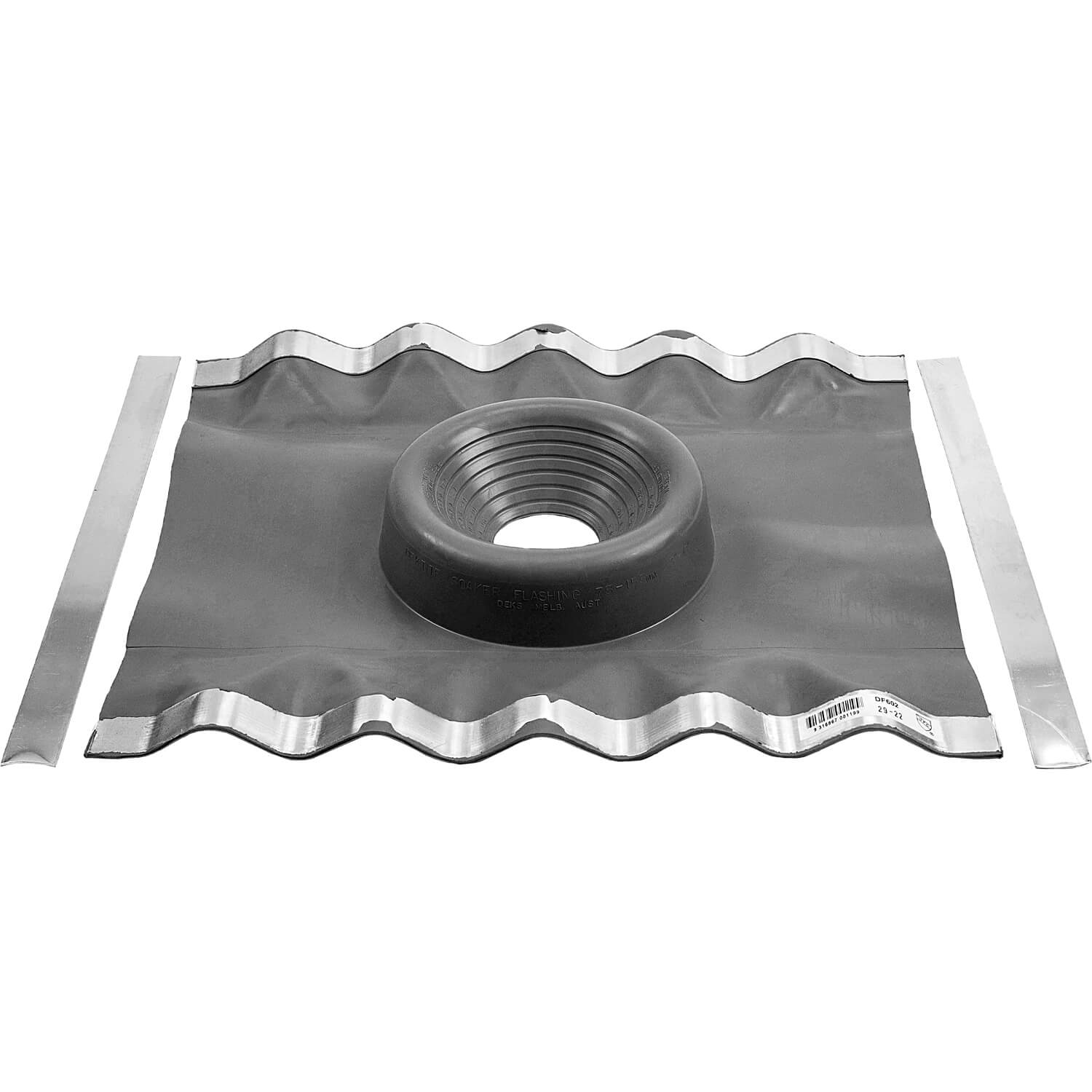

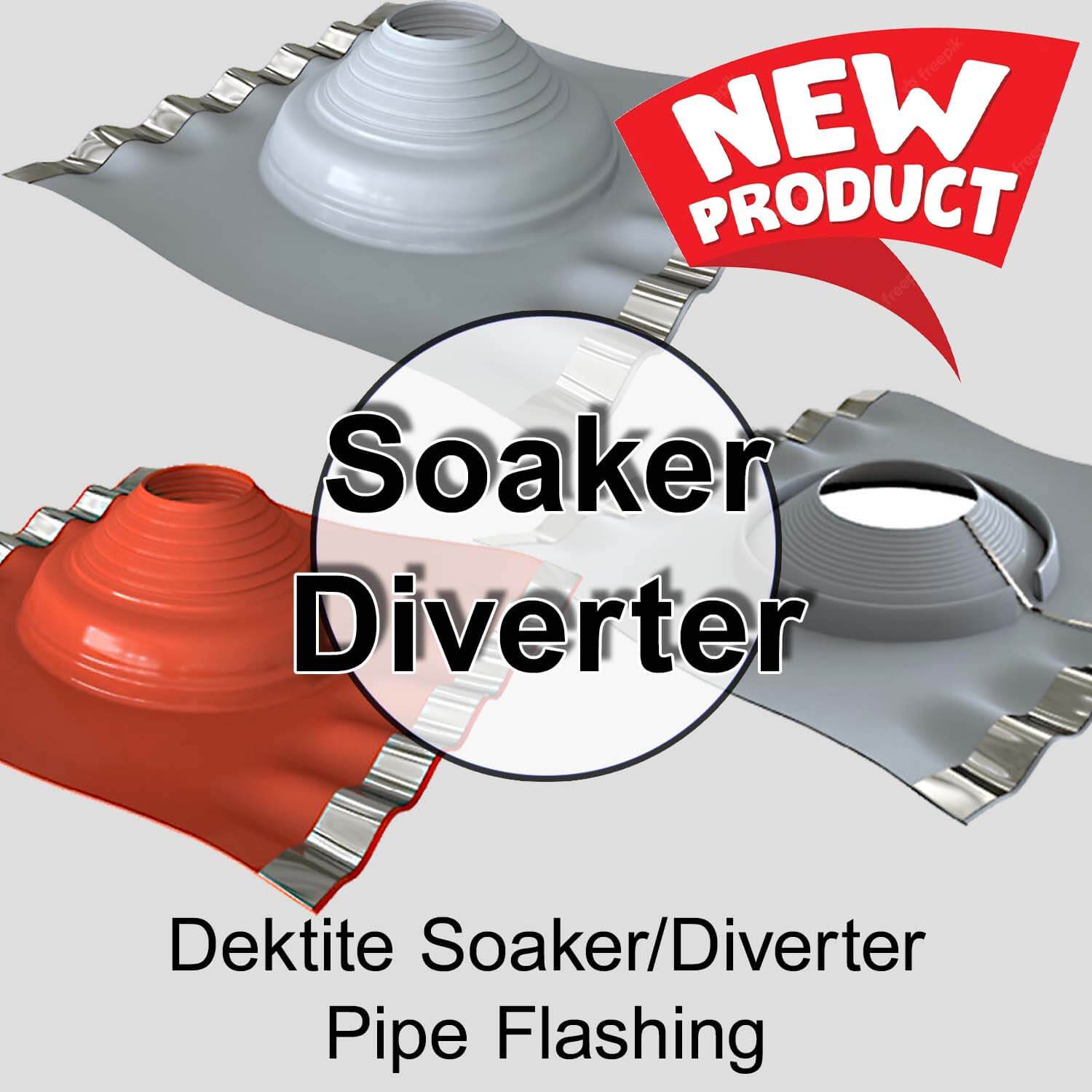

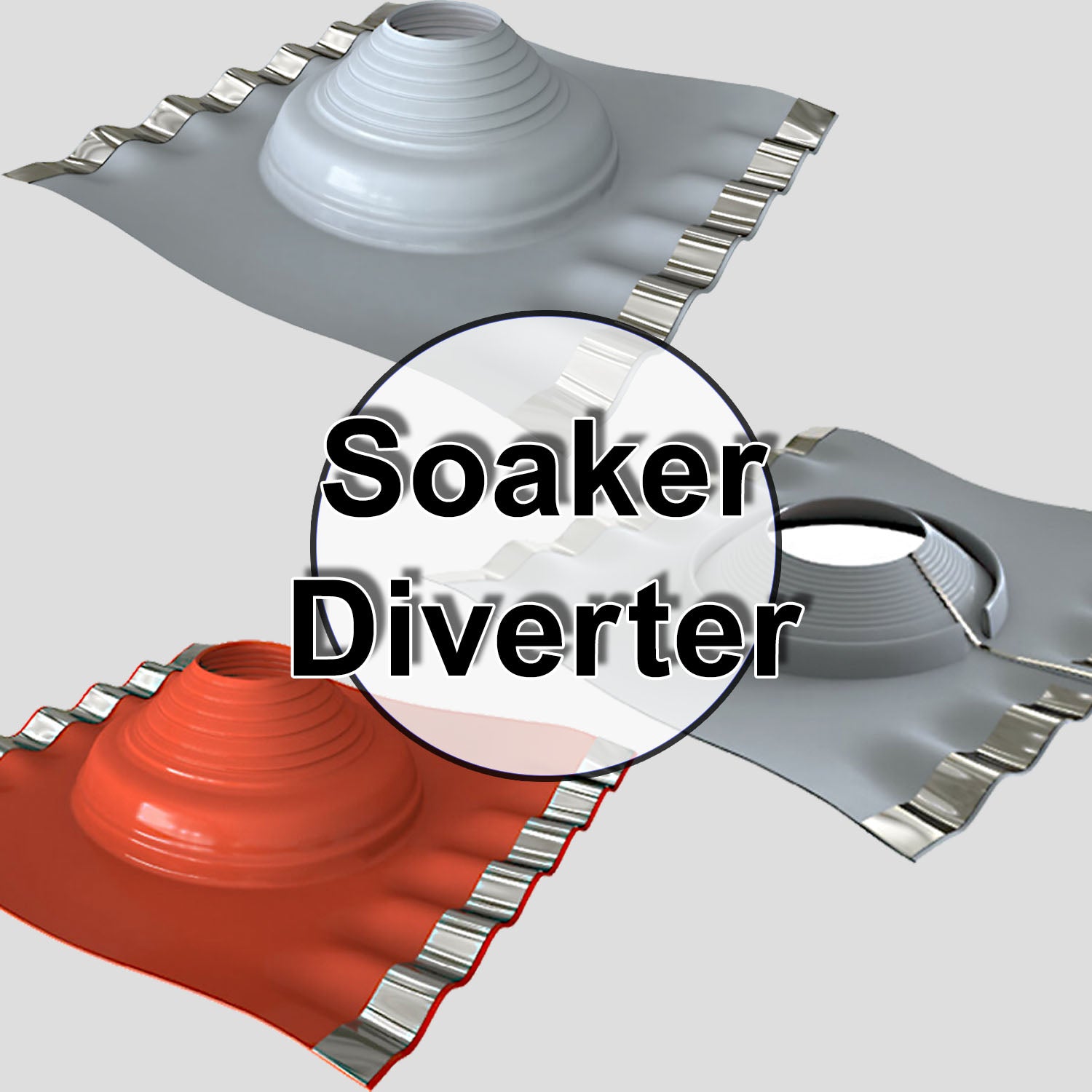

Dektite Low or High Profile R-Panel Roofing. High Temperature and Low Temperature (EPDM) Pipe Flashing For Deep Ribbed Roofing Profiles
For Pipe Dimensions by Product Number See Chart Below
✔Designed for High and Low Deep Ridge Roof Pitches - O to 60 Degrees or 18/12 - R-Panel Roofing

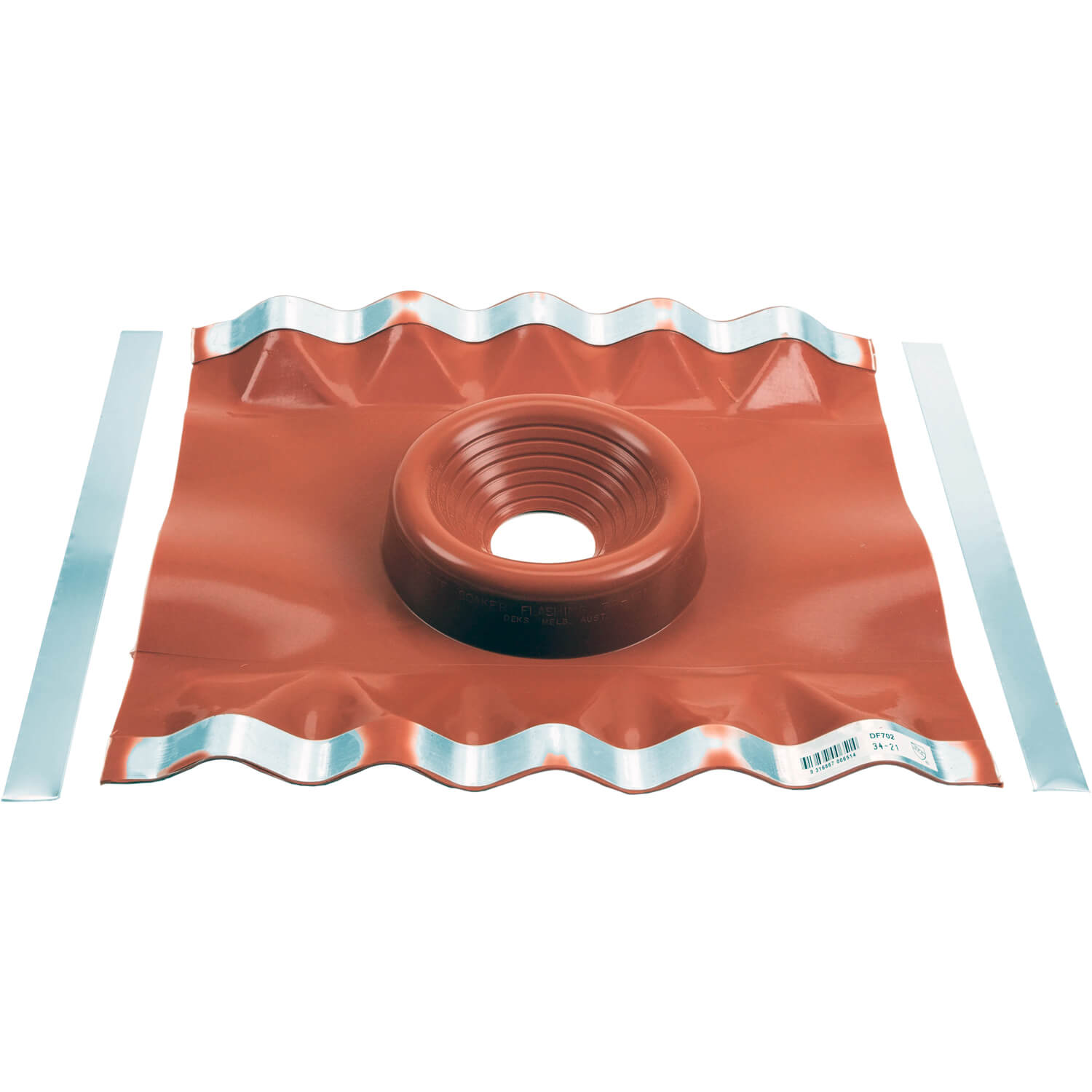

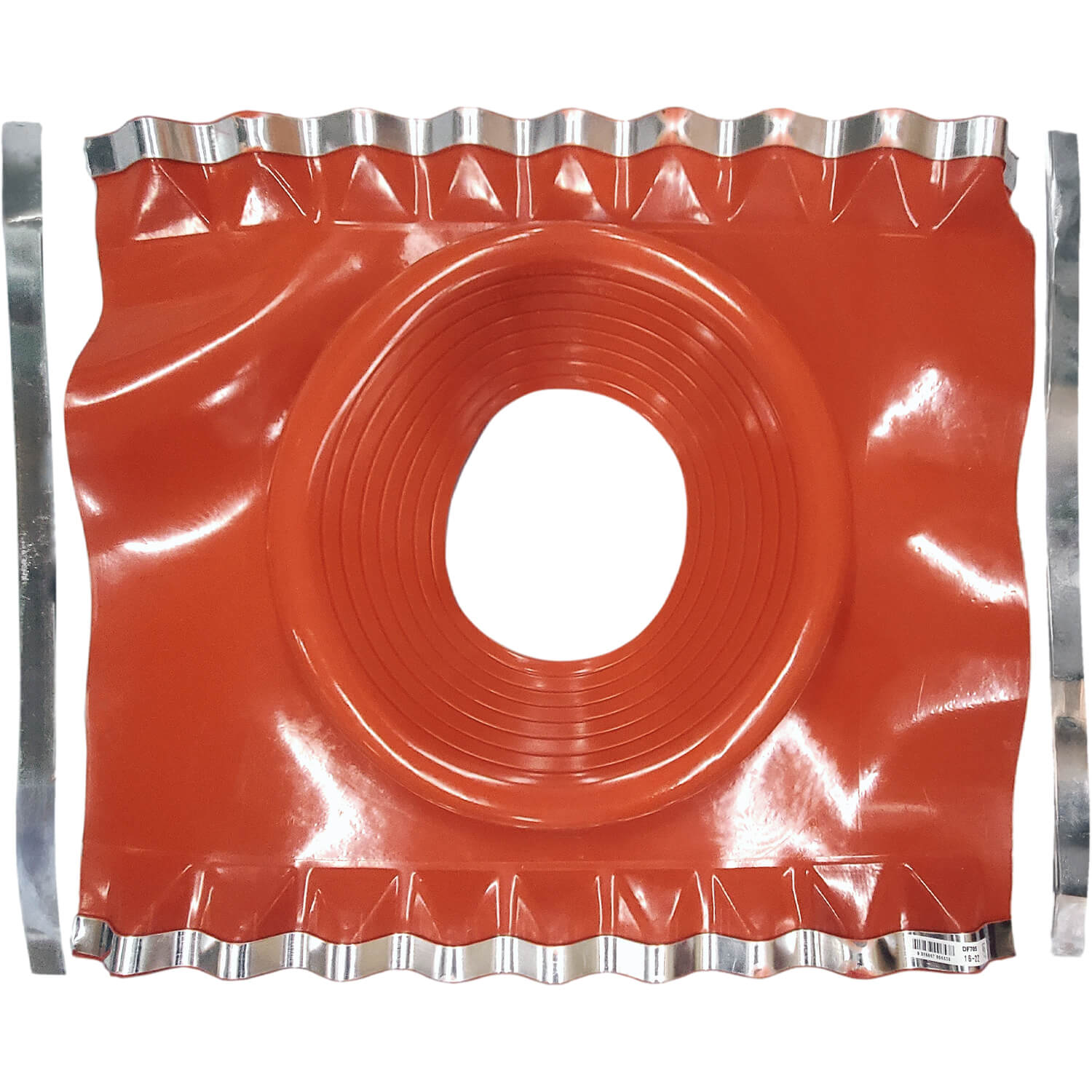

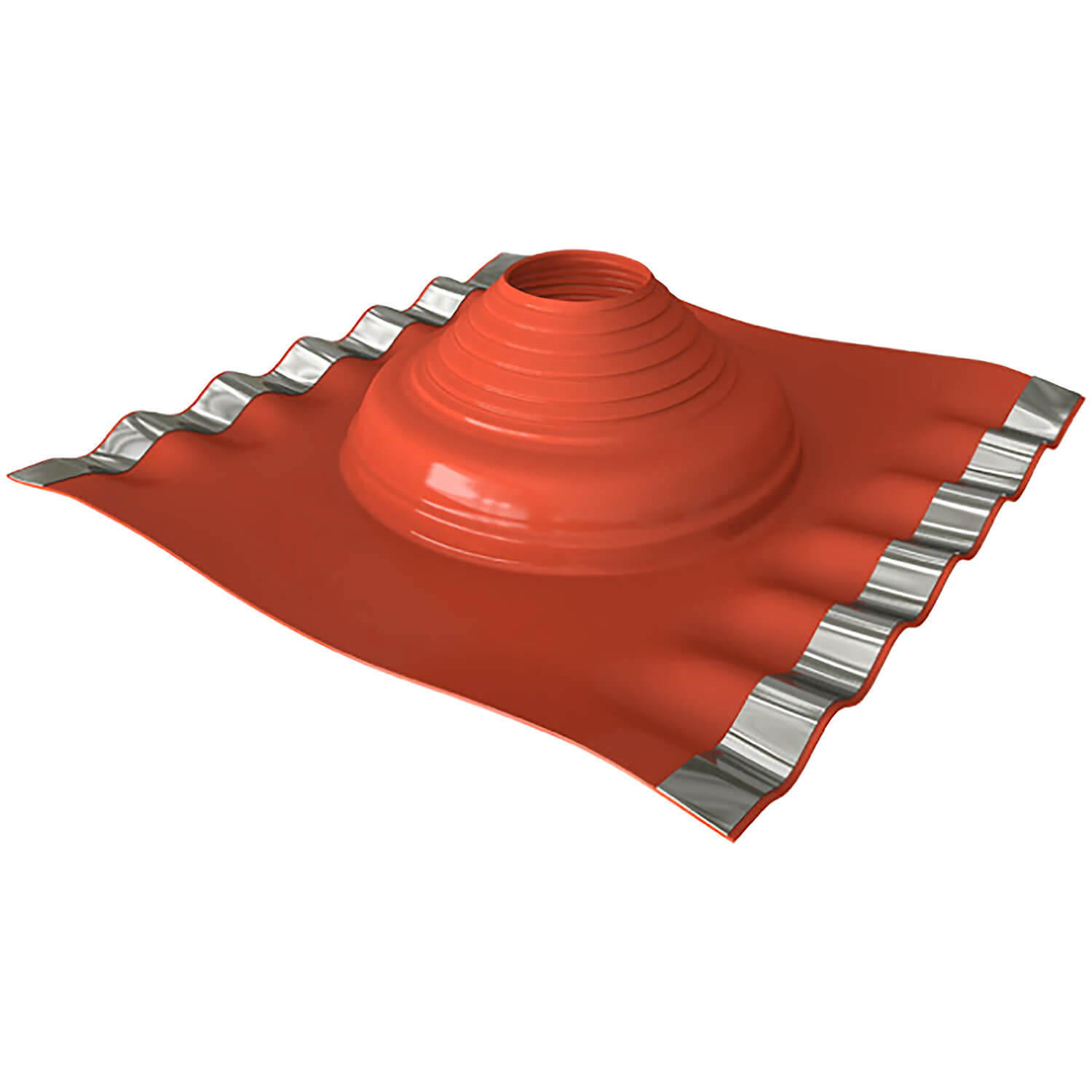

✔RED SILICONE will withstand constant temperatures at the roofline of -50C (-58F) to 200C ( 392F)

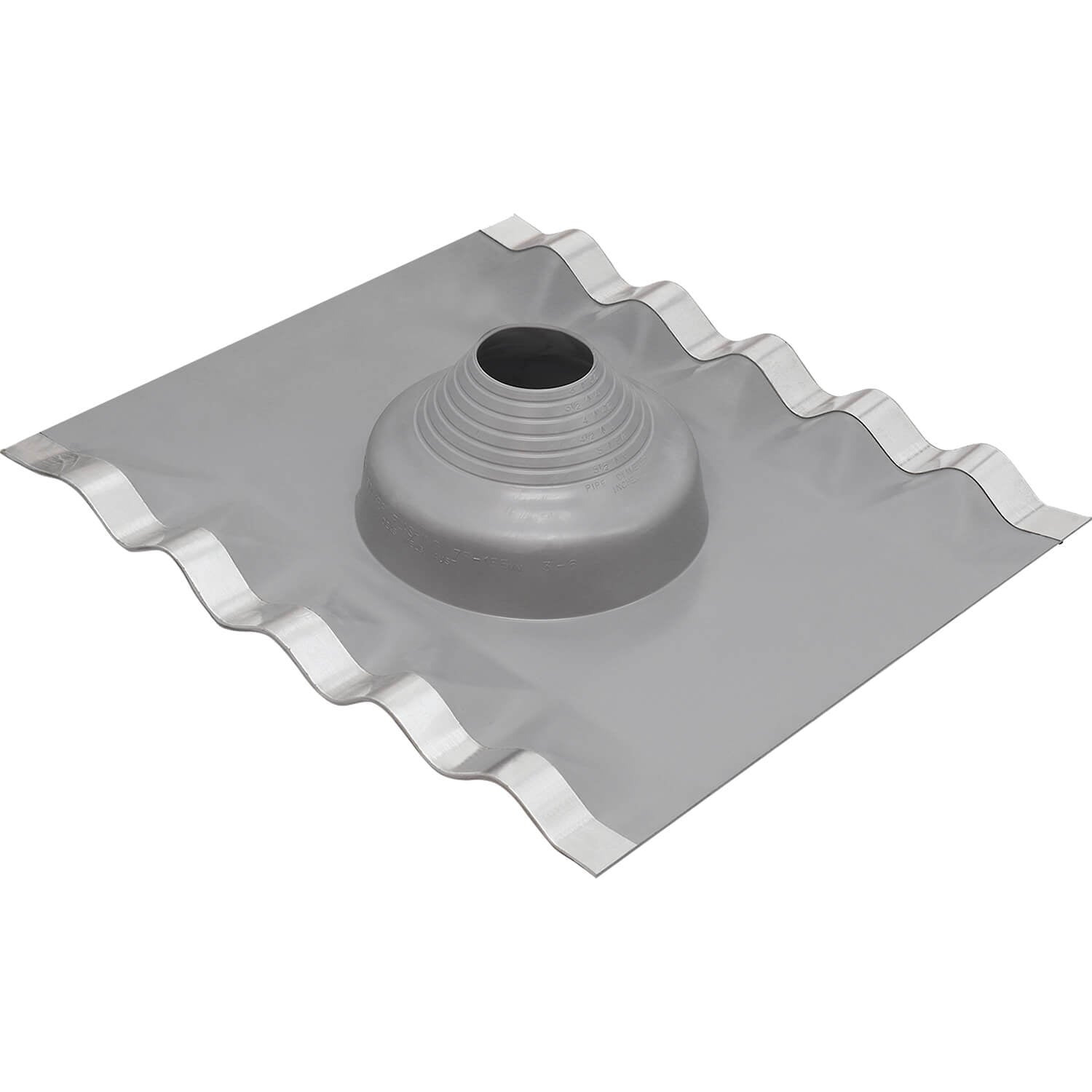

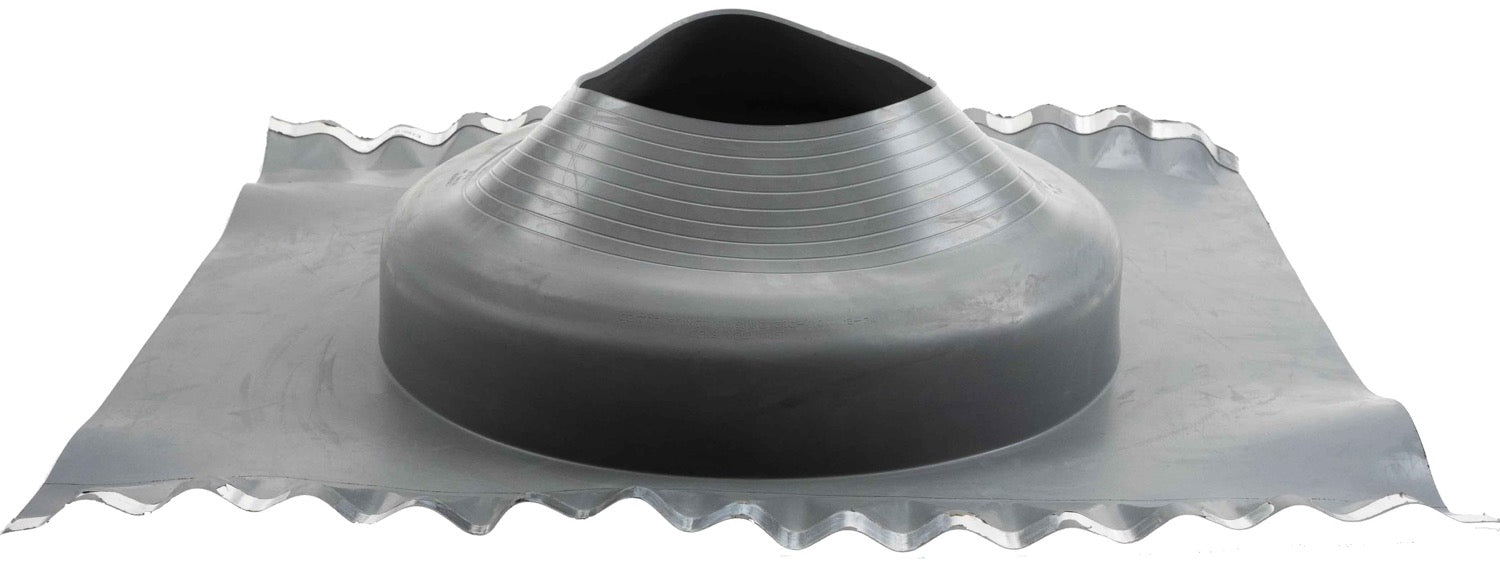

✔GRAY (EPDM) will withstand constant temperatures at the roof line of -58F to 239F
✔20 Year Warranty against manufacturing defects If measured and installed correctly
✔No ponding or damming - large base reduces rain and snow back up

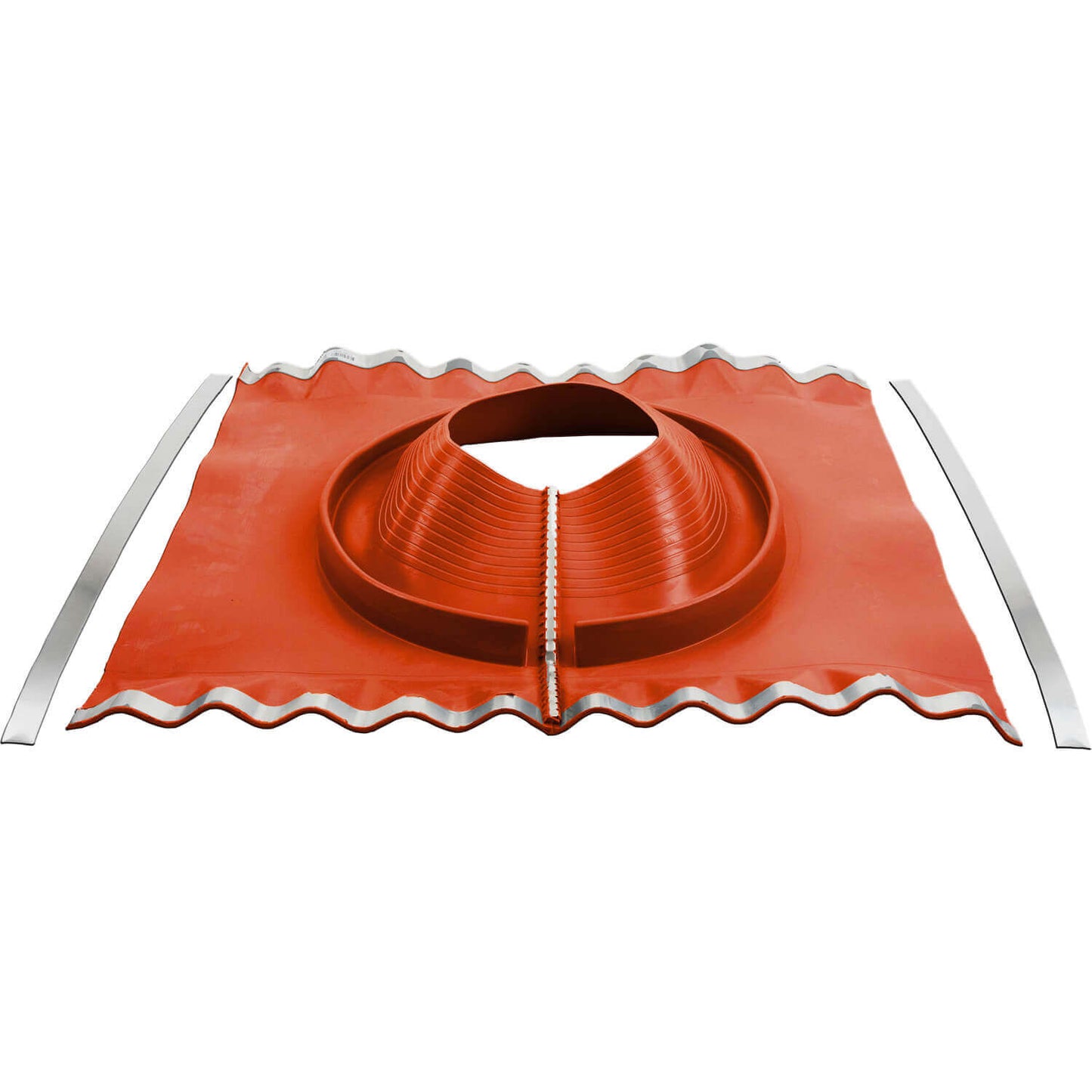

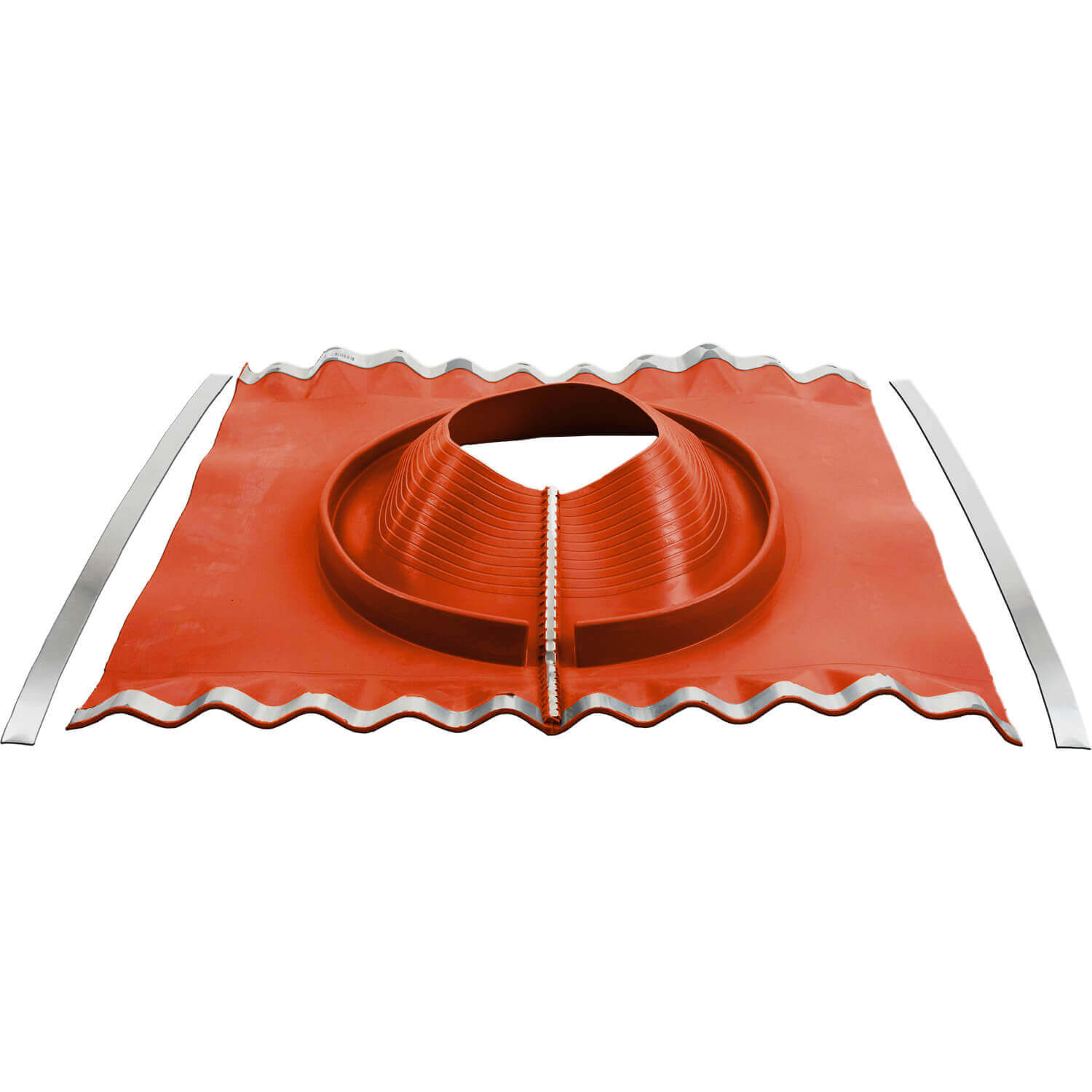

Retrofit Design for Flashing Around Existing Pipes with Protrusion or Cap. Where Going Over the Top of Pipe Is Not An Option
For Pipe Dimensions by Product Number See Chart Below
✔Designed for High and Low Deep Ridge Roof Pitches - O to 60 Degrees or 18/12 - R-Panel Roofing
✔RED SILICONE will withstand constant temperatures at the roofline of -50C (-58F) to 200C ( 392F)
✔GRAY (EPDM) will withstand constant temperatures at the roof line of -58F to 239F
✔20 Year Warranty against manufacturing defects If measured and installed correctly
✔No ponding or damming - large base reduces rain and snow back up

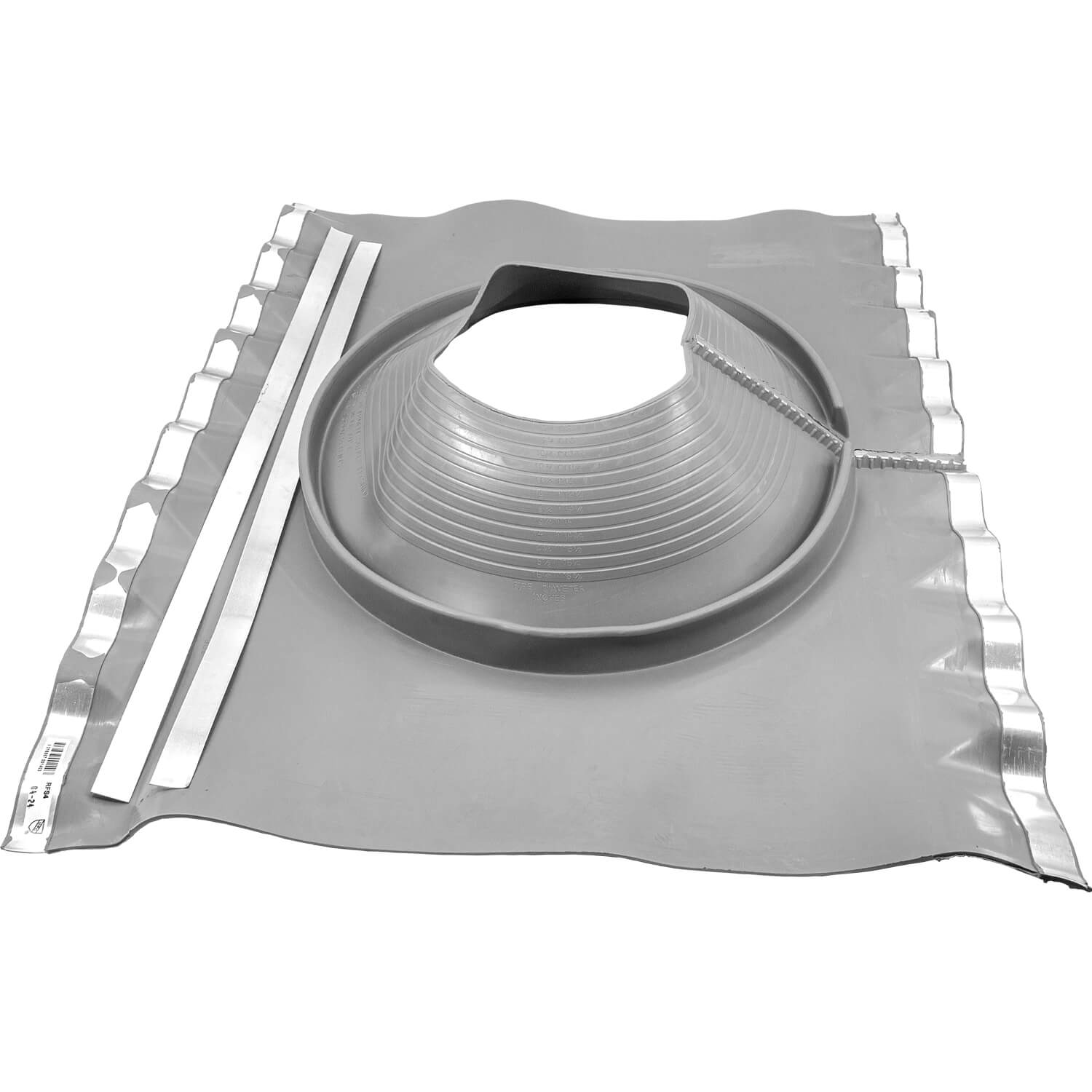

Retrofit Design for Flashing Around Existing Pipes with Protrusion or Cap. Where Going Over the Top of Pipe Is Not An Option
Product Number | Fits Pipe Outside Diameter | Base Size | Temperature Rating | Material |
---|---|---|---|---|
DF602 Diverter | 3" - 6" | 16" x 14" | -58F to 239F | EPDM |
DF603 Diverter | 4.50" - 10" | 19" x 18" | -58F to 239F | EPDM |
DF605 Diverter | 10" - 16" | 27.75" x 25" | -58F to 239F | EPDM |
DF606 Diverter | 15" - 24" | 39.25" x 35.5 | -58F to 239F | EPDM |
RFS4 Retrofit Diverter | 9-1/4" to 16-3/4" | 39-3/4" x 35-1/2" | -58F to 239F | EPDM |
DF702 Diverter | 3" to 6" | 16" x 14" | -50C (-58F) to 200C ( 392F) | Silicone |
DF703 Diverter | 4.5 to 10" | 19" x 18"- | -50C (-58F) to 200C ( 392F) | Silicone |
DF705 Diverter | 10" - 16" | 27-3/4" x 25" | -50C (-58F) to 200C ( 392F) | Silicone |
DF706 Diverter | 15" - 24" | 39.25" x 35.5" | -50C (-58F) to 200C ( 392F) | Silicone |
RFS24 Diverter/Retrofit | 9-1/4" to 16-3/4" | 39-3/4" x 35-1/2" | -50C (-58F) to 200C ( 392F) | Silicone |
