Gate Closer - Spring-Loaded Self-Closing Gate Spring for Chain Link

Gate Closer - Spring-Loaded Self-Closing Gate Spring for Chain Link

1-3/8" x 2-3/8" Each

Regular price $41.95 USD
Regular price
Retail price
$53.99 USD
Sale price $41.95 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping Over $50

GS1: 840129212065

Delayed Delivery Item

Quantity
In-Stock Orders Will Ship Within
0
Hours
0
Minutes
0
Seconds
Excluding Holidays

How does a spring gate closer work?

A spring gate closer uses a coil spring attached between the gate frame and the fence post. When the gate is pushed open, the spring stretches. When released, the spring tension pulls the gate back to the closed position automatically.

Is a self-closing gate closer required for pool gates?

Yes. Most local building codes and the International Swimming Pool and Spa Code require pool barrier gates to be self-closing and self-latching. A spring gate closer satisfies the self-closing requirement.

Can I adjust the closing speed on a spring gate closer?

You can adjust closing force by changing the spring mounting position. Moving the attachment point increases or decreases spring tension, changing how quickly and firmly the gate closes.

What gate frame sizes does this gate closer fit?

This spring gate closer is compatible with standard 1-3/8 inch and 1-5/8 inch chain link gate frames. These are the two most common residential and light commercial gate frame sizes.

Will a spring gate closer work in cold weather?

Yes, but very cold temperatures can temporarily stiffen the spring and reduce closing force. In climates with severe winters, inspect the closer in early spring and re-tension if needed.

How long does a spring gate closer last?

A quality spring gate closer lasts many years under normal residential use. Inspect annually for spring corrosion or fatigue. High-cycle commercial use shortens lifespan.

What is the difference between a spring gate closer and a hydraulic gate closer?

A spring gate closer uses mechanical spring force and closes at a fixed speed. A hydraulic gate closer uses fluid resistance to control closing speed for a smoother, adjustable, more controlled movement. Hydraulic closers are preferred for heavy or high-traffic gates.

Does the gate closer include installation hardware?

Yes. Mounting bolts and brackets are included with this spring gate closer. Basic hand tools are the only additional items needed for installation.

Can a spring gate closer be installed on a double gate?

Each leaf of a double gate needs its own spring gate closer. For double gates, install one closer per leaf and use a drop rod or bolt to secure the first-closing leaf in place.

Will a gate closer keep my gate closed in high wind?

A spring gate closer will pull the gate closed after each use but is not a gate latch. Pair the gate closer with a self-latching gate latch to keep the gate secured against wind once it closes.

View full details

Our chain link gate closer uses a heavy-duty coil spring to automatically pull your gate closed after each use. The self-closing gate spring mounts directly to the gate frame and post, providing consistent closing force that can be adjusted by tightening or loosening the spring tension. Installation hardware is included. Ideal for pool gates, backyard gates, and anywhere a self-closing gate is required by code. Works on single swing gates and is compatible with standard 1-3/8 inch and 1-5/8 inch chain link gate frames. Durable galvanized finish handles outdoor exposure year-round.

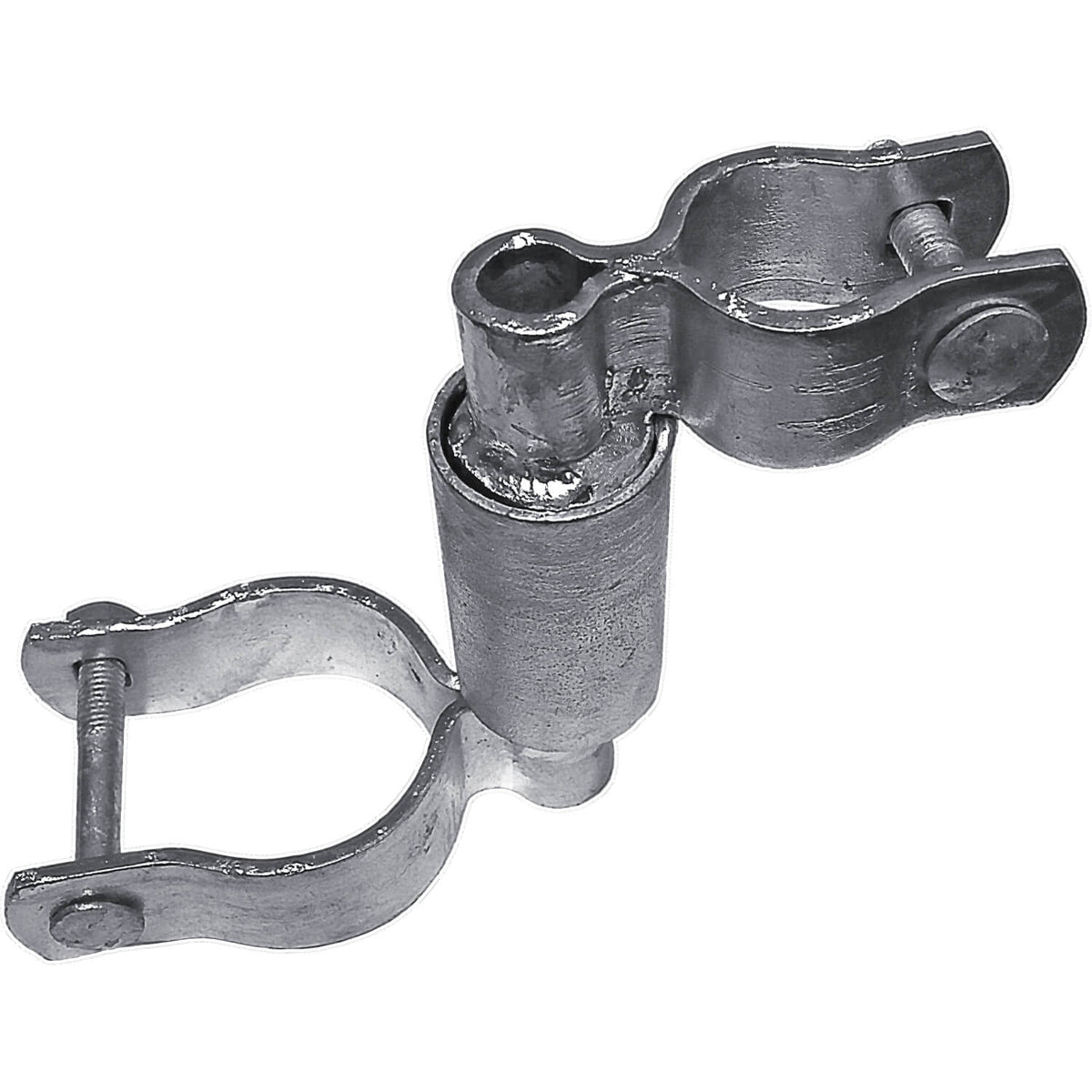

Chain Link Gate Spring Closer - Self Closing Gate Spring Closer - Gate Closer Includes Bolts

✔Minimum Gap between Gate Frame and Gate Post must be 2 Inches for spring to work effectively
✔Instructions for installation, maintenance and measuring chain link fencing included on this page
✔Spring Tension Wound - closes with more force the further open the gate is - no more than 90 Degrees
✔Occasional lube of gate hinges and closer with silicone recommended
✔Chain Link Gate Closer includes necessary bolts/nuts for installation

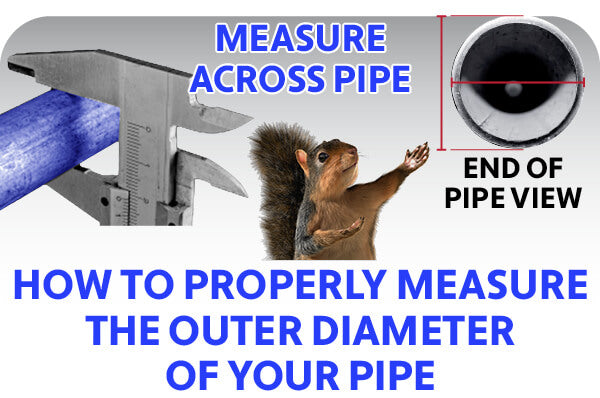

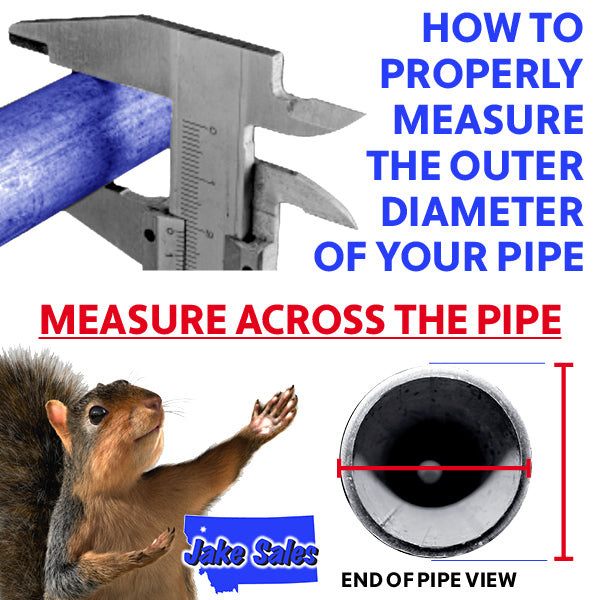

✔You Need to Measure both gate post and gate frame prior to purchase, to ensure proper fit

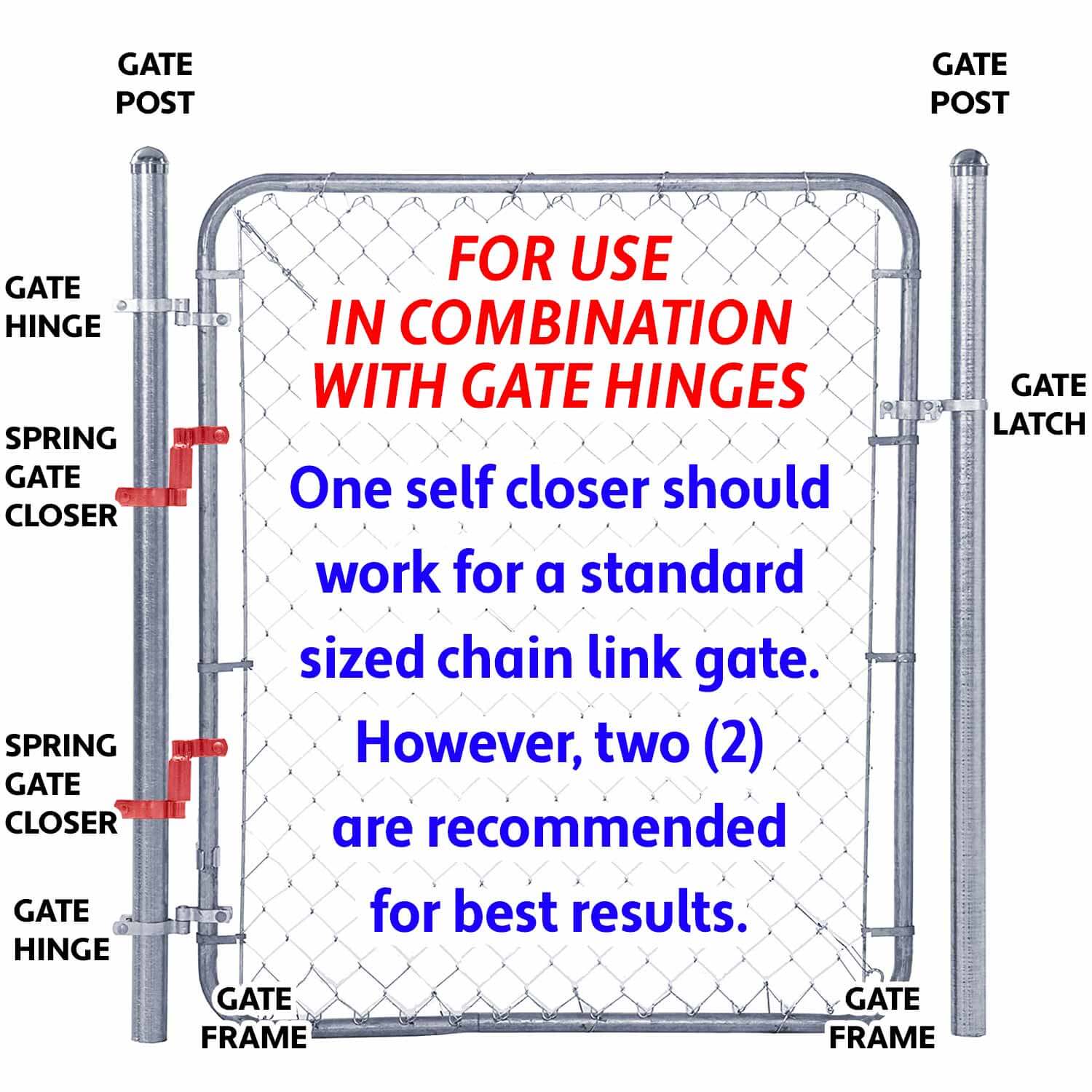

✔One Self Closer will work for 36" Standard Chain Link Gate, Two (2) are Recommended for Best Result


For Use in Combination with Gate Hinges. Please Check Your Local Regulations for Pool Gate Requirements. Regulations Vary From Area To Area

Installation Instructions   Available Here

Product Size - Link Measured By Galvanized Steel
1-3/8" x 1-7/8" Outside Diameter Yes
1-3/8" x 1-7/8" Econ Outside Diameter Yes
1-3/8" x 2-3/8" Outside Diameter Yes
1-3/8" x 2-3/8" Econ Outside Diameter Yes
1-5/8" x 2-3/8" Outside Diameter Yes
1-5/8" x 2-7/8" Outside Diameter Yes
