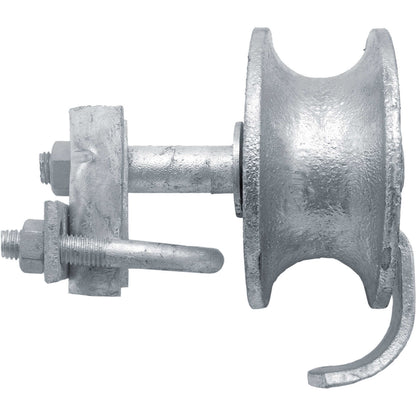

Chain Link Fence Rolling Gate Track Wheel - Steel and Nylon Options
Chain Link Fence Rolling Gate Track Wheel - Steel and Nylon Options

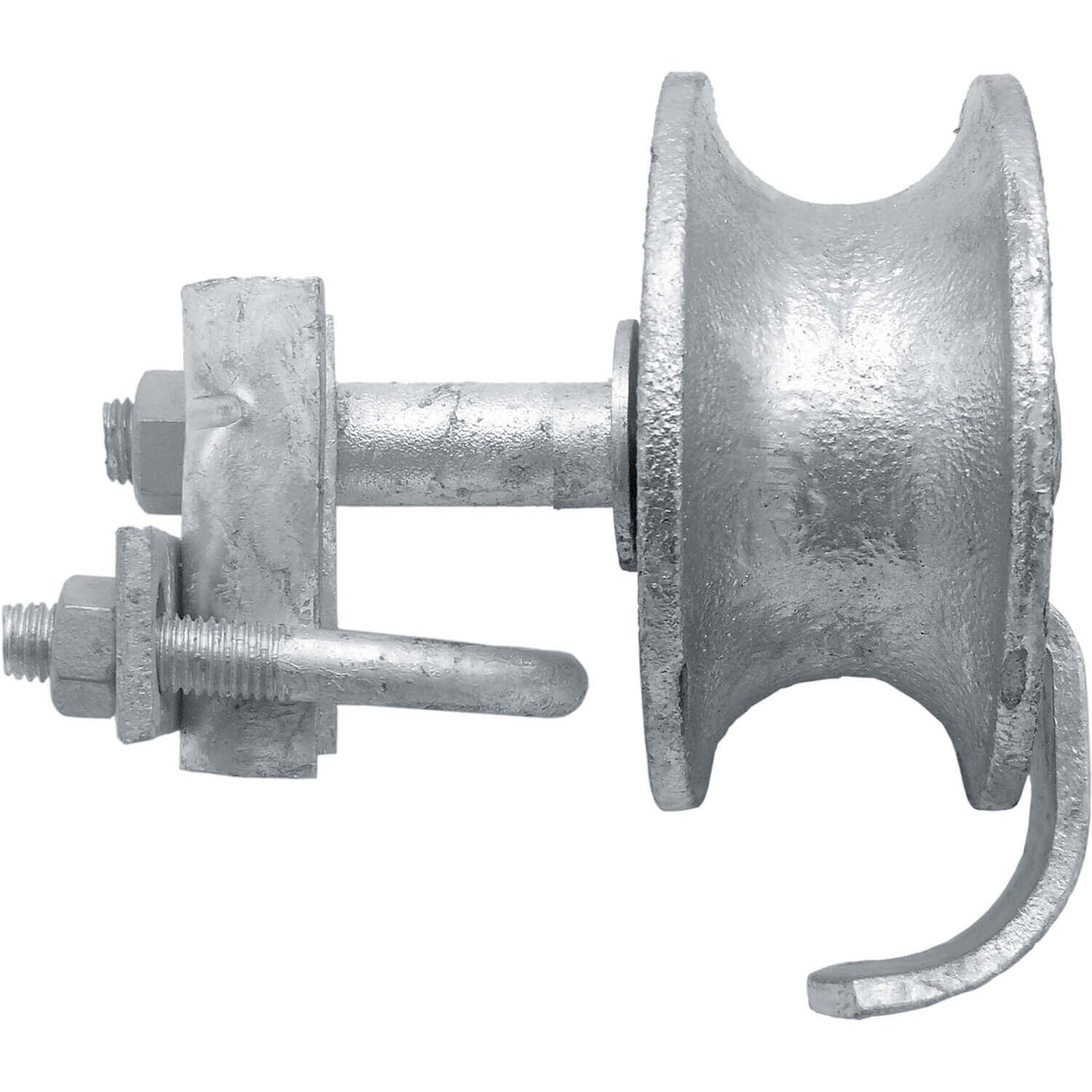

TRACK WHEEL - STEEL Each
GS1: 840129212393
Delayed Delivery Item
Couldn't load pickup availability
What is a V-groove gate wheel?
What is a V-groove gate wheel?

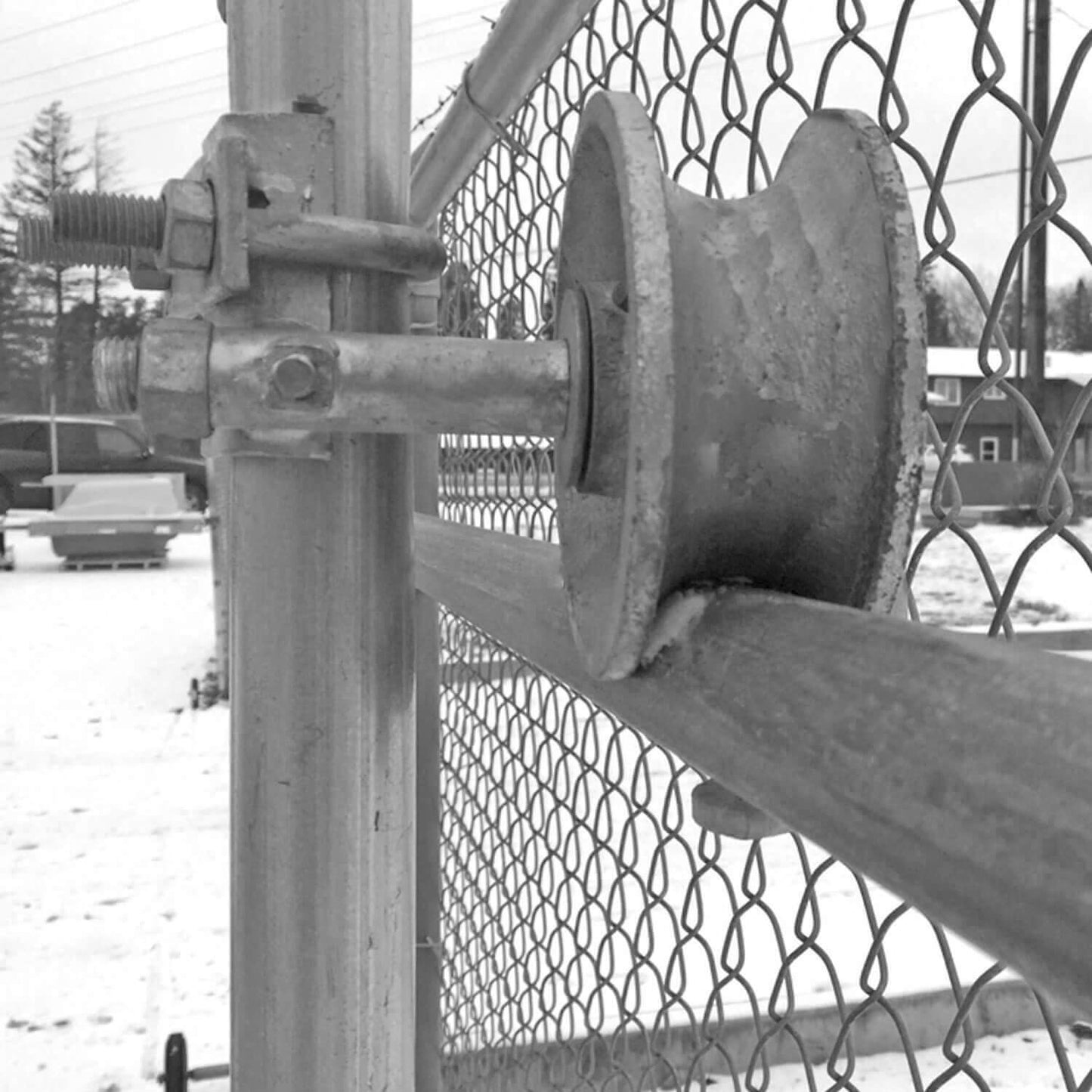

A V-groove gate wheel has a V-shaped groove in its running surface that rides along a round pipe track, such as a 1-5/8 inch pipe. The V-groove grips the pipe and keeps the wheel on track, guiding the gate smoothly along the pipe.
Steel or nylon gate track wheels - which is better?
Steel or nylon gate track wheels - which is better?
Steel wheels are more durable and support heavier gates (300 lbs or more). Nylon wheels operate quietly, will not scratch paved driveways, and are sufficient for residential gates under 200 lbs.
How do I know if my rolling gate wheel needs replacement?
How do I know if my rolling gate wheel needs replacement?
Replace rolling gate wheels when the V-groove shows visible wear, when the gate is difficult to roll or makes grinding noises on the track, or when the gate drifts sideways out of alignment during operation.
What gate frame sizes do these track wheels fit?
What gate frame sizes do these track wheels fit?
Our rolling gate track wheels are designed for 1-7/8 inch outside diameter gate frame tubing, with the wheel riding along a 1-5/8 inch track pipe.
Can I mix steel and nylon track wheels on the same gate?
Can I mix steel and nylon track wheels on the same gate?
Mixing wheel materials on the same gate is not recommended, as the different hardness and rolling resistance can cause uneven tracking and gate misalignment. Use matched pairs of the same material.
Do rolling gate track wheels require lubrication?
Do rolling gate track wheels require lubrication?
Nylon wheels generally require minimal lubrication. Steel wheel bearings benefit from periodic light machine oil or grease to maintain smooth operation and extend bearing life.
How do I install a rolling gate track wheel?
How do I install a rolling gate track wheel?
The wheel assembly mounts to the gate frame tubing with a U-bolt clamp. Position the wheel on the track, set the correct height, and tighten the U-bolt. The gate should roll smoothly with no binding or side-to-side wobble.
What is the rolling gate track that these wheels run on?
What is the rolling gate track that these wheels run on?
Rolling gate track is a steel channel or rail with a raised V-edge profile installed in the driveway or ground. The V-groove wheel rides along this raised edge, keeping the gate aligned and supported.
How far apart should rolling gate track wheels be spaced?
How far apart should rolling gate track wheels be spaced?
Position the front wheel near the front edge of the gate and the rear wheel near the back edge to provide maximum stability. The exact spacing depends on gate width, with wheels typically 2/3 of the gate width apart.
Can rolling gate track wheels be used without a ground track?
Can rolling gate track wheels be used without a ground track?
No. V-groove track wheels require a matching ground track to function. For a gate system without a ground track, use cantilevered gate rollers instead, which support the gate from posts without any ground contact.

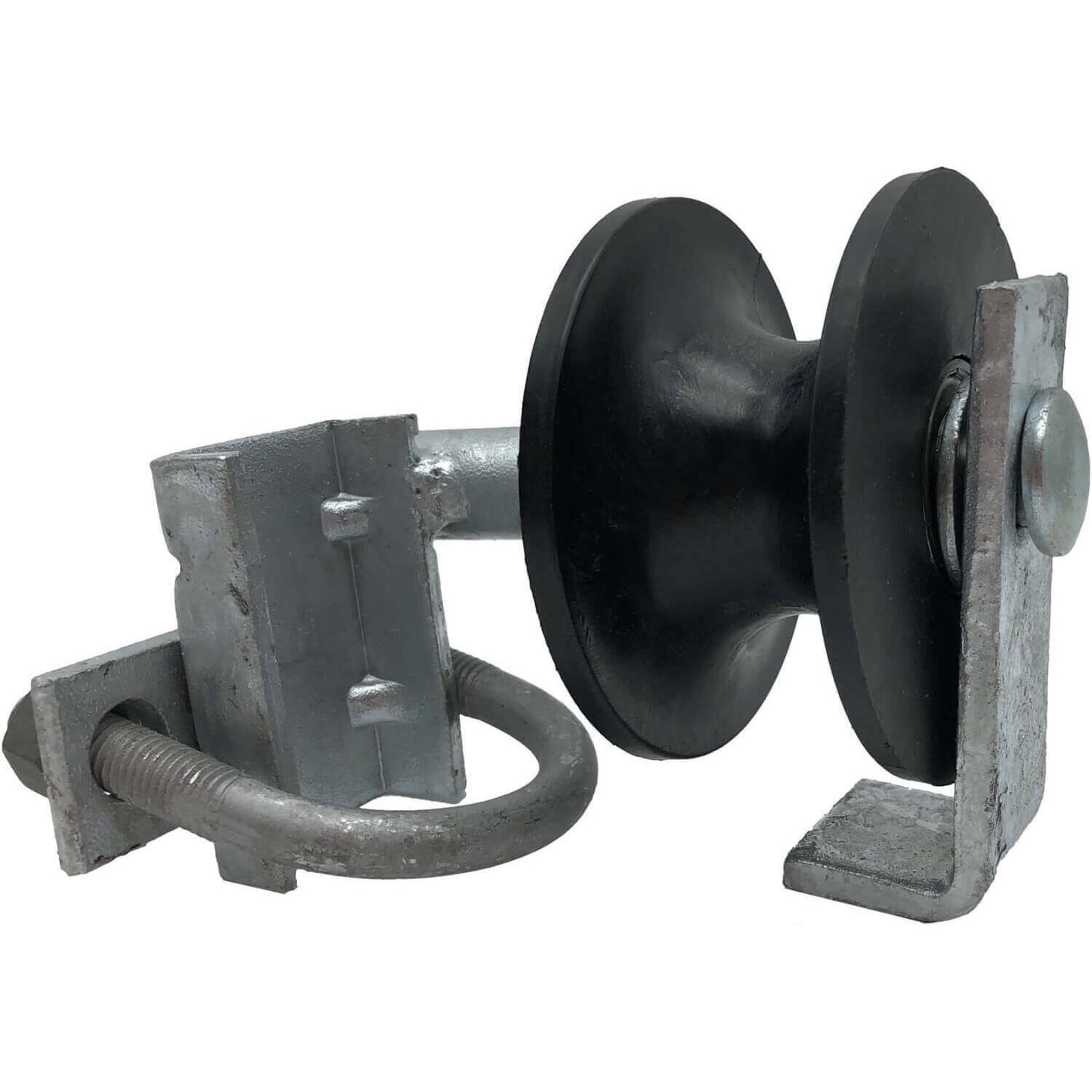

Our chain link fence rolling gate track wheel provides the rolling interface between a sliding gate and its ground-level V-groove track. Available in steel and nylon versions. Steel wheels handle heavier commercial gates and high-cycle applications, while nylon wheels run more quietly and are suitable for most residential sliding gates.

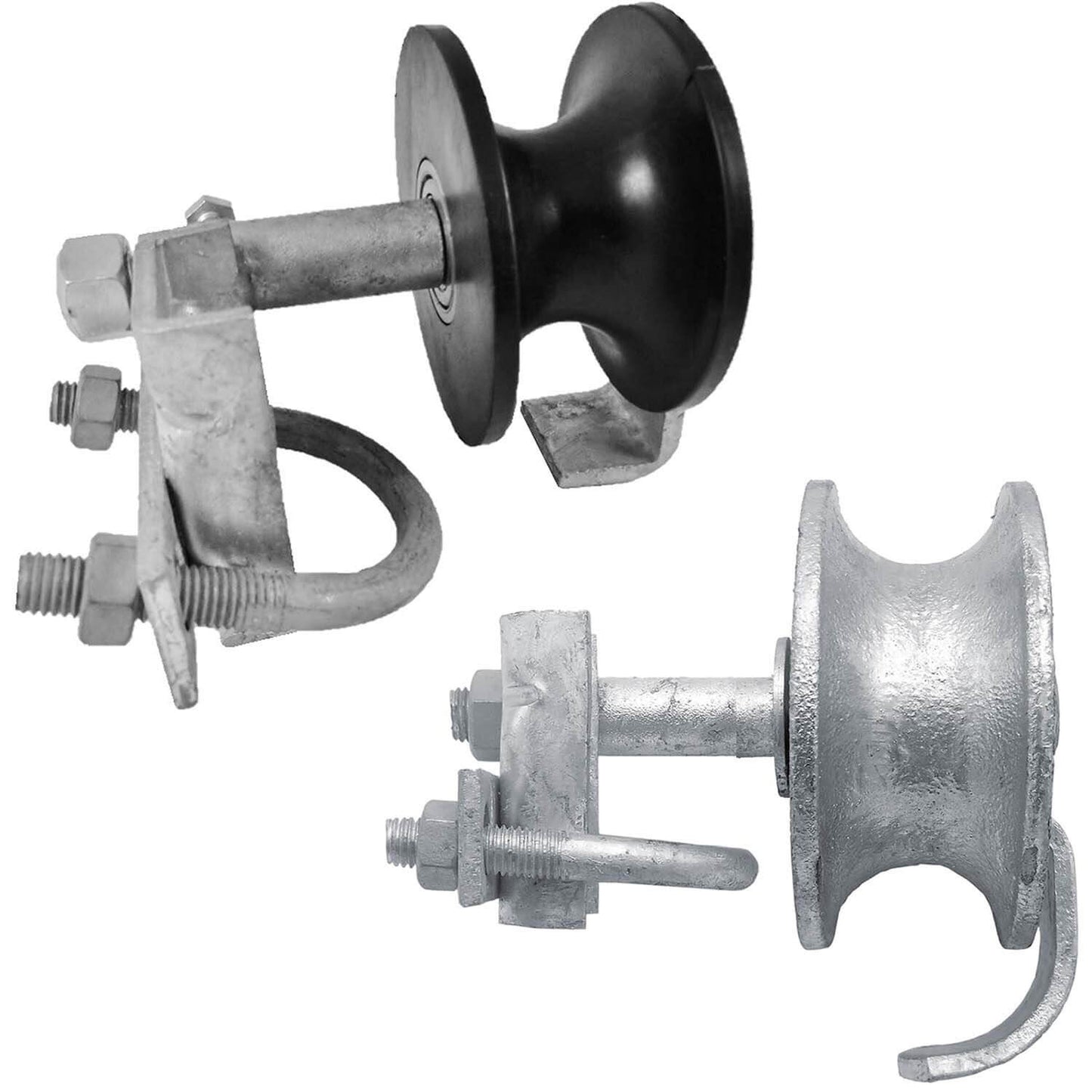

Chain Link Fence Rolling Gate Track Wheel Roller in Steel and Nylon Versions
Measures: 1-7/8" Gate Frame x 1-5/8" Track Pipe. Will Not Fit Other Sizes
Rollers are commercial and industrial strength, come with a manufacturer's limited lifetime warranty
One piece wheel is sturdier than the split, two-piece style offered by other vendors
These are the safety track wheels with a curved retainer to keep gate on track

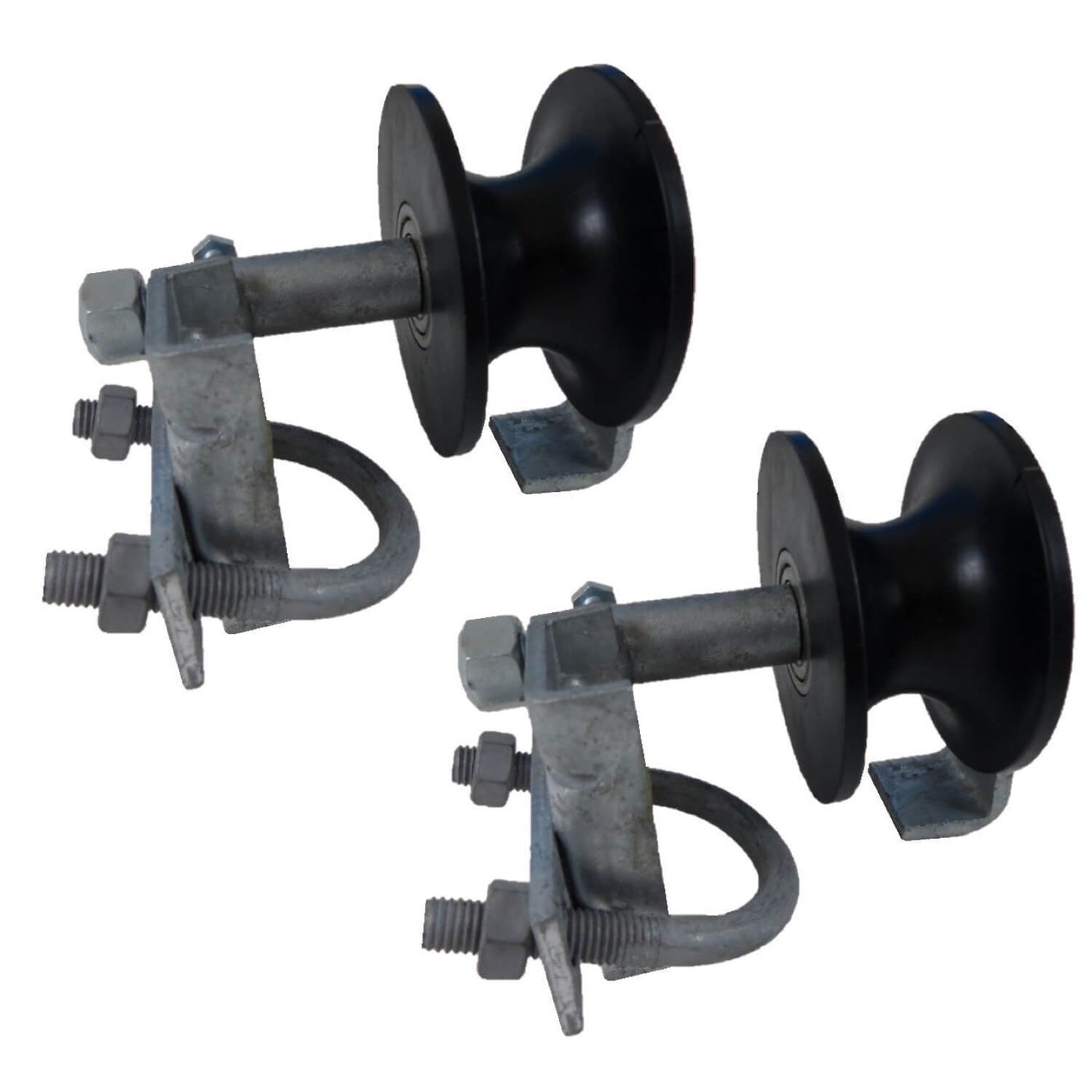

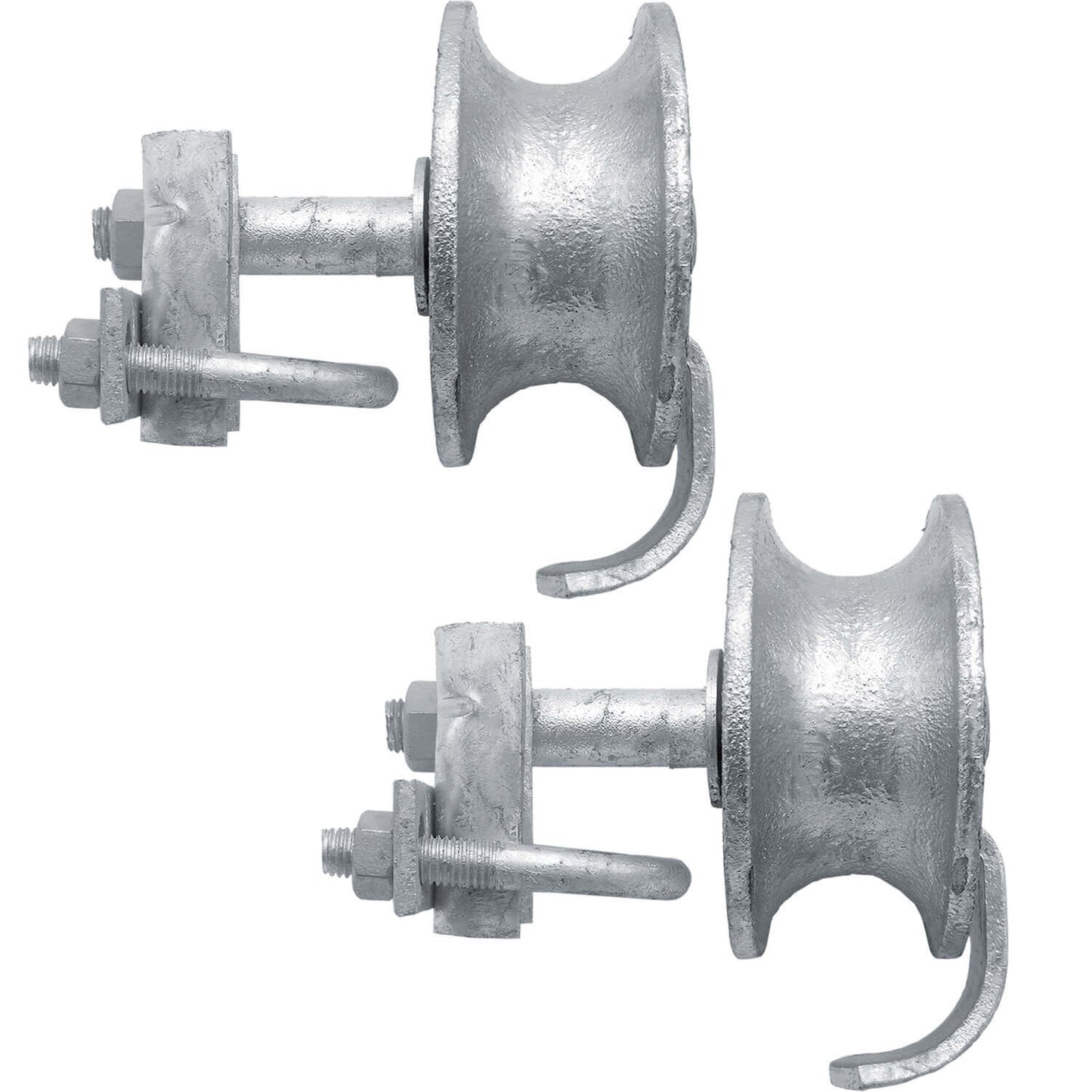

Each rolling chain link gate will require 2 of these Track Wheels
Nylon Rollers have less friction and binding compared to steel wheels due to better quality ball bearing

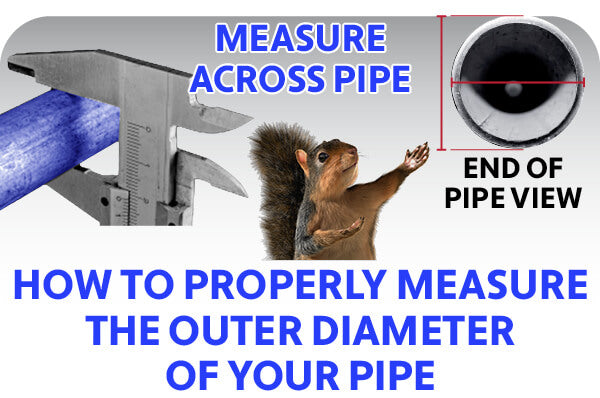

Installation Instructions and How To Properly Measure Fence Pipe Included on This Page
Installation Instructions Available Here
