6" CHAIN LINK WALL MOUNTED ROLLING GATE HARDWARE KIT: (Chain Link Fence Gate Parts) (6" Rut Runner, 2 Track Wheels, 6 Wall Mounted Track Brackets, 1 Rolo Latch)

6" CHAIN LINK WALL MOUNTED ROLLING GATE HARDWARE KIT: (Chain Link Fence Gate Parts) (6" Rut Runner, 2 Track Wheels, 6 Wall Mounted Track Brackets, 1 Rolo Latch)

Regular price $172.85 USD
Regular price
RETAIL PRICE
$217.99 USD
Sale price $172.85 USD
Sale Sold out

GS1: 840129213031


In-Stock Orders Will Ship Within
Hours
Minutes
Seconds

HOURS

MINUTES

SECONDS

View full details

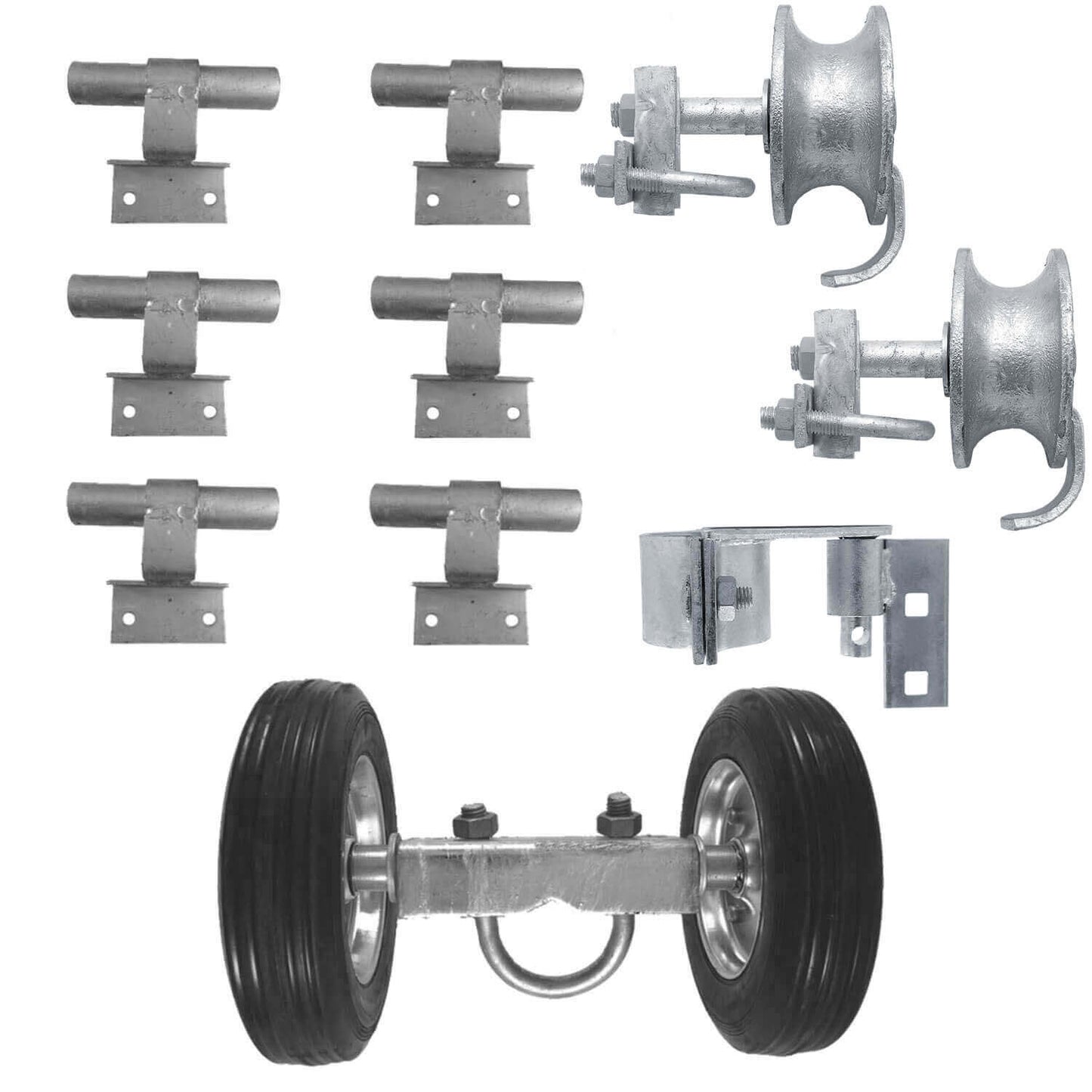

Chain Link Wall Mounted Rolling Gate Hardware KIT

✔ Complete kit for mounting Rolling/Sliding Gate Wall Mounted System using 1-5/8" Top Rail Fence Pipe
✔ All products are of heavy duty galvanized steel manufacturing to prevent rust and corrosion
✔ The Track Wheels are a Solid One Piece design and are about 5-1/4" Heavy Duty Cast style
✔ Includes 6" wheel carrier and ROLO gate latch in addition to two 2" x 1-5/8" track wheels
✔ Products are easy to install and come with U-bolts and nuts needed to install most items

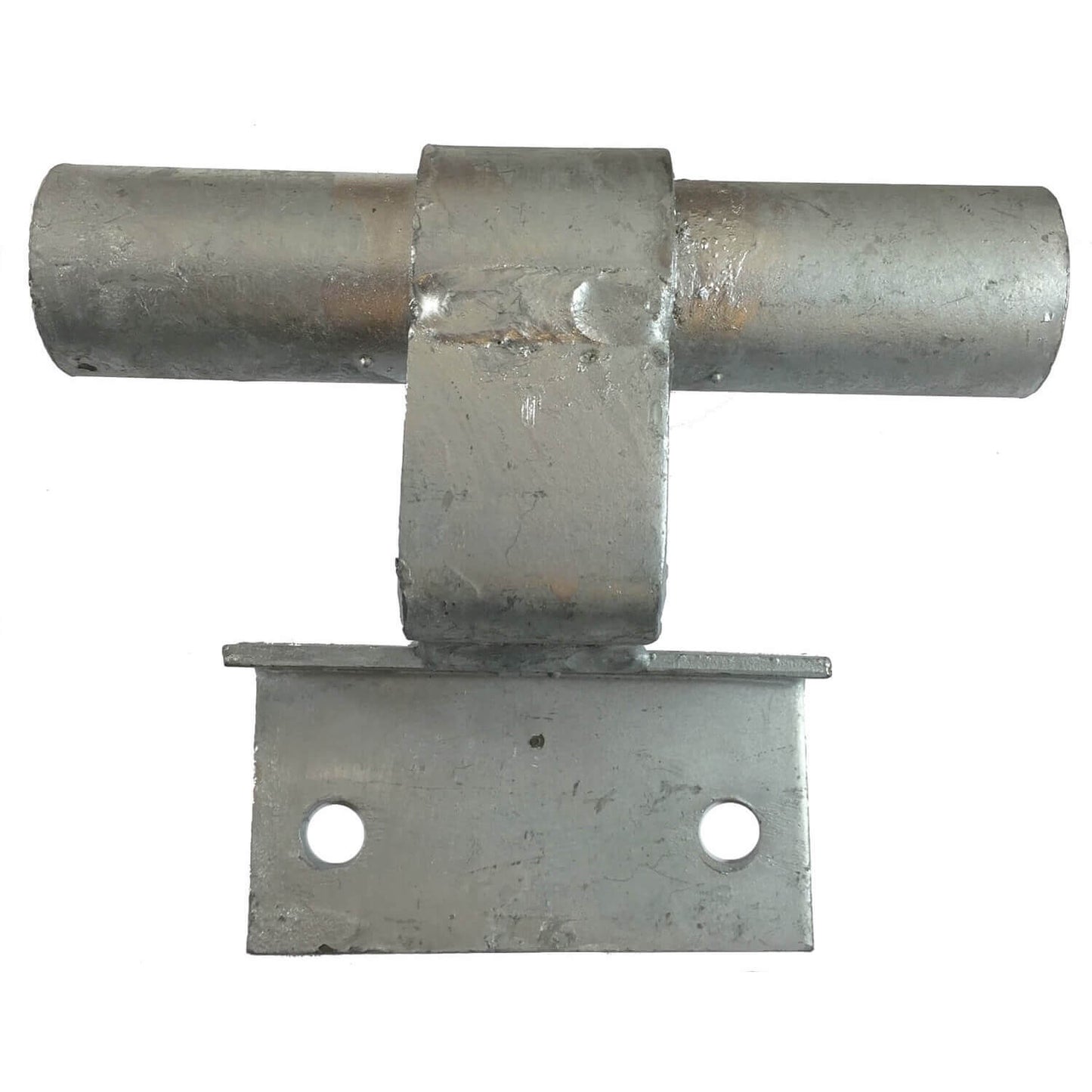

1-5/8" Track Pipe Track Bracket for a rolling or a sliding chain link Fence Gate. The typical rolling gate track system will require 6 of these track brackets. Brackets are galvanized chain link fence hardware. Use with Track Wheels that mount to 1-5/8" track.

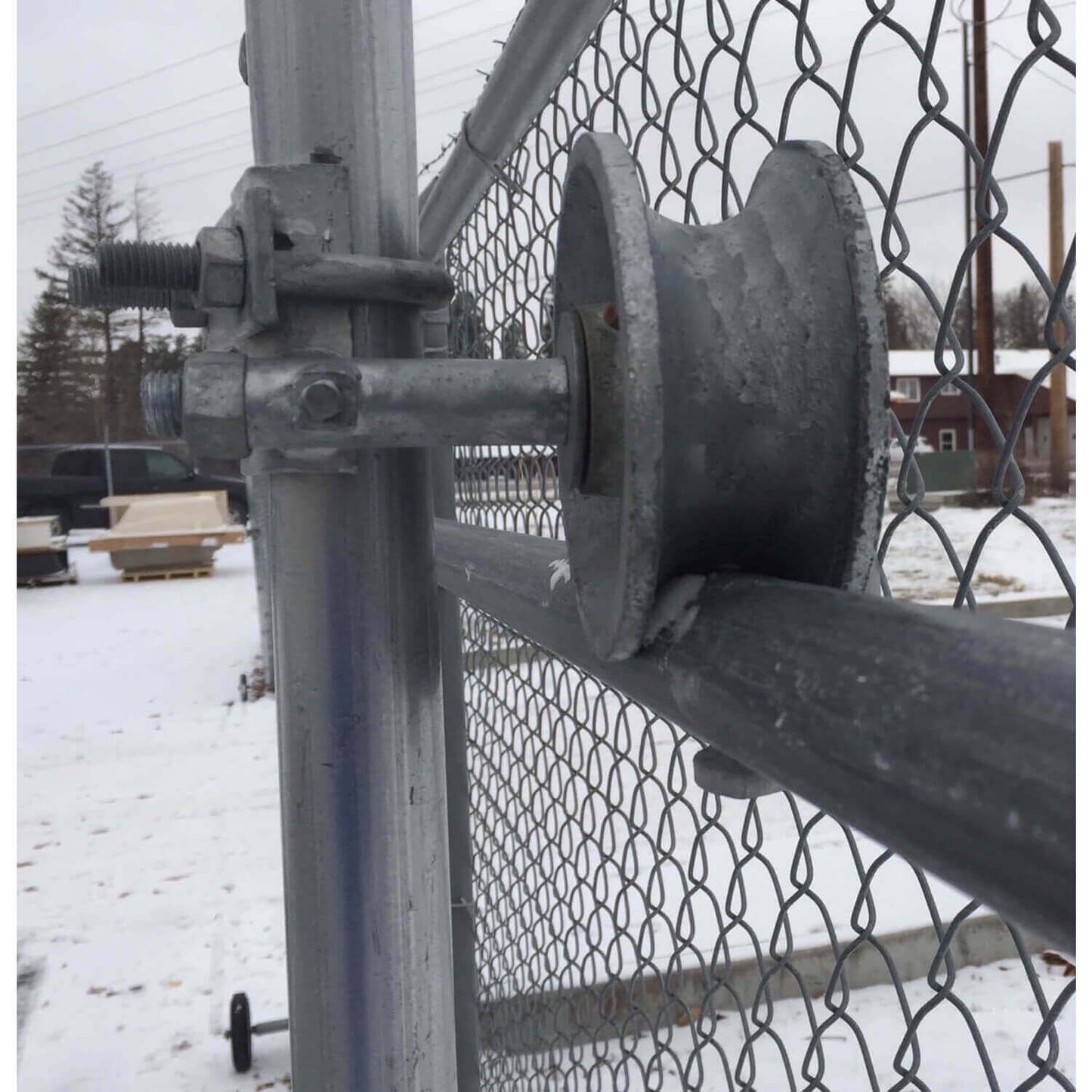

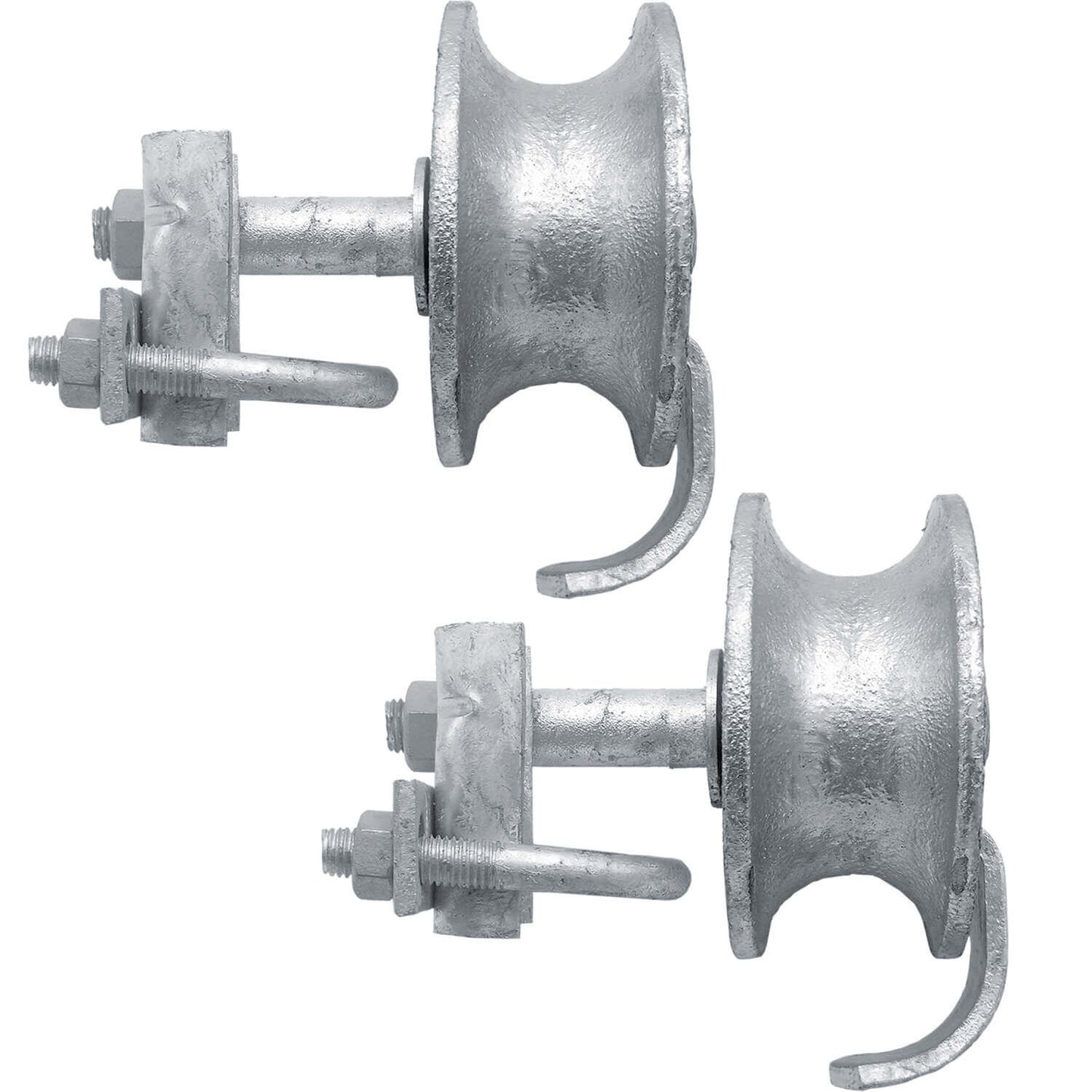

Track Roller for 1-7/8" Gate Frame and 1-5/8" Track Pipe. The Track Wheels are a Solid One Piece design and are 5-1/4" Heavy Duty Cast. These are the safety track wheel type with a curved retainer to keep gate on track. Use CQ20 1-5/8" outside diameter pipe (we recommend DQ40) for the roller to roll on. We do not recommend using tubing in place of track pipe. Rollers are commercial and industrial strength, come with a manufacturers limited lifetime warranty

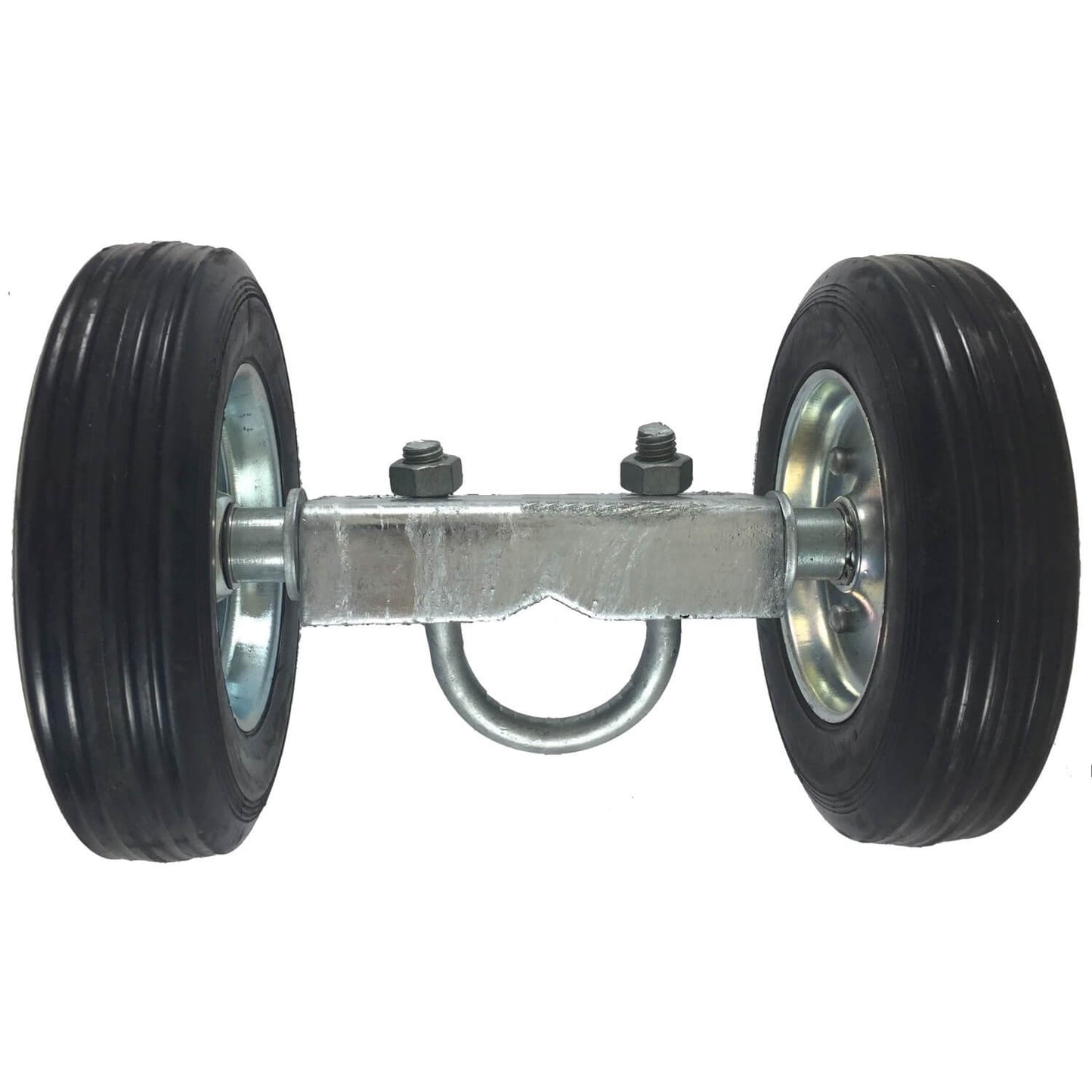

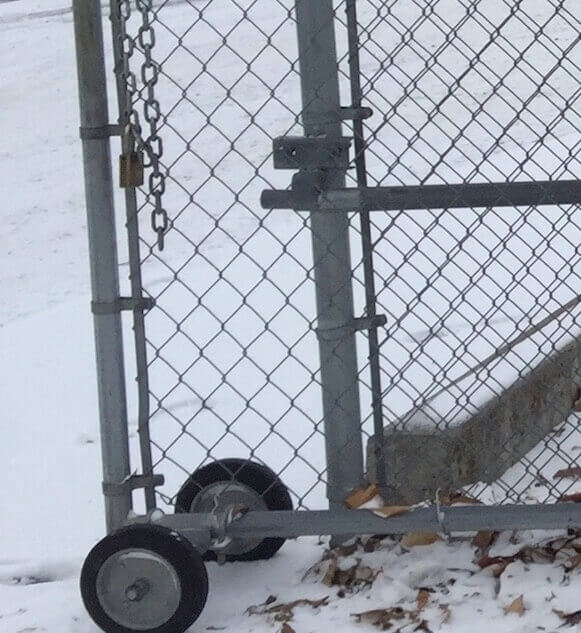

Gate Wheel Carrier works with a horizontal rolling gate or "sliding gate". Works in conjunction with the typical chain link track roller gate system. Galvanized to prevent rust and corrosion. Hard Rubber wheels are 6" in diameter with a total width of 10" wheel axle length. Includes U-bolts to Accommodate Rolling Gate-Sliding Gate Frames Sizes 1-5/8" thru 1-7/8". Easy to Install, for New or Existing Gates

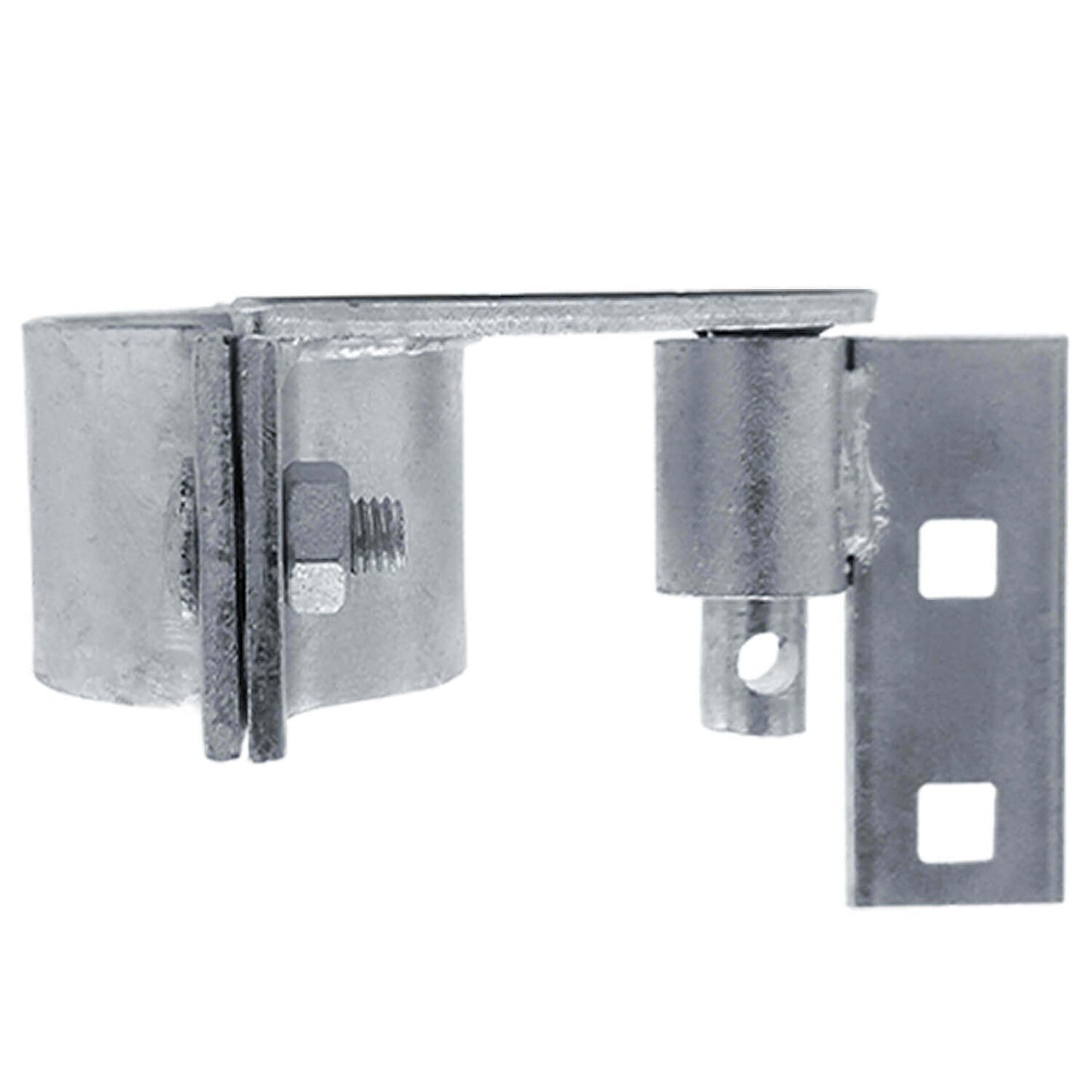

ROLO latch For 1-5/8" to 1-7/8" Gate Frame and Latch Post. Use with rolling chain link gates, sliding gates, and cantilevered rolling gates. The ROLO can be padlocked for security. Requires two brace bands to attach to the "Latch Post" - purchase brace bands based on the size of your post (Not Included)

Cost of kit is less expensive than purchasing individual items separately. Gate Frame and Gate Posts measurements are "outside diameters" - See graphic for How Properly Measure Outside Diameter of Fence Pipe

Installation Instructions Available Here

ROLO Gate Latch Instructions Available Here

Rolling Gate Wheel Instructions Available Here

Need Brace Bands for Installing the ROLO? Available Here
