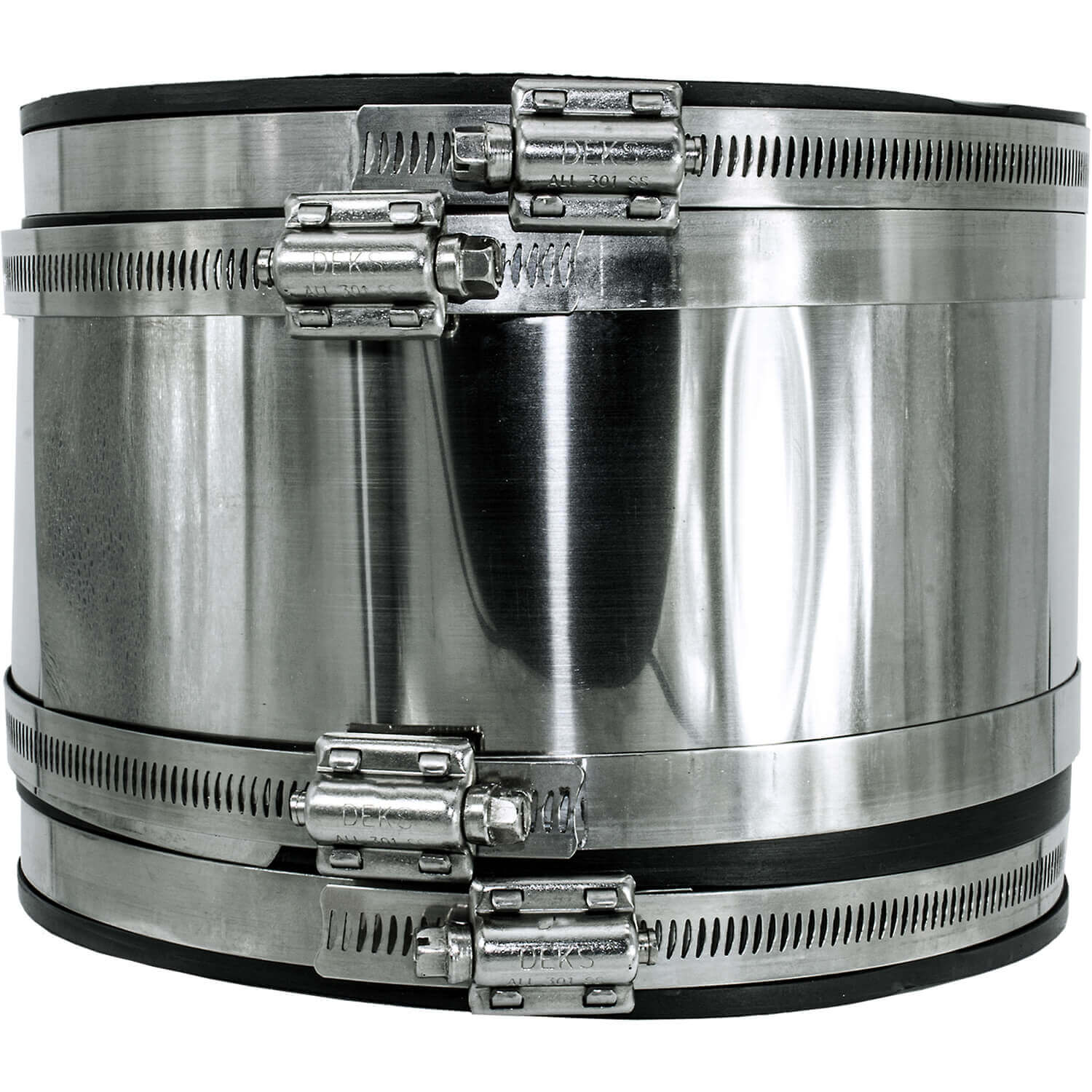

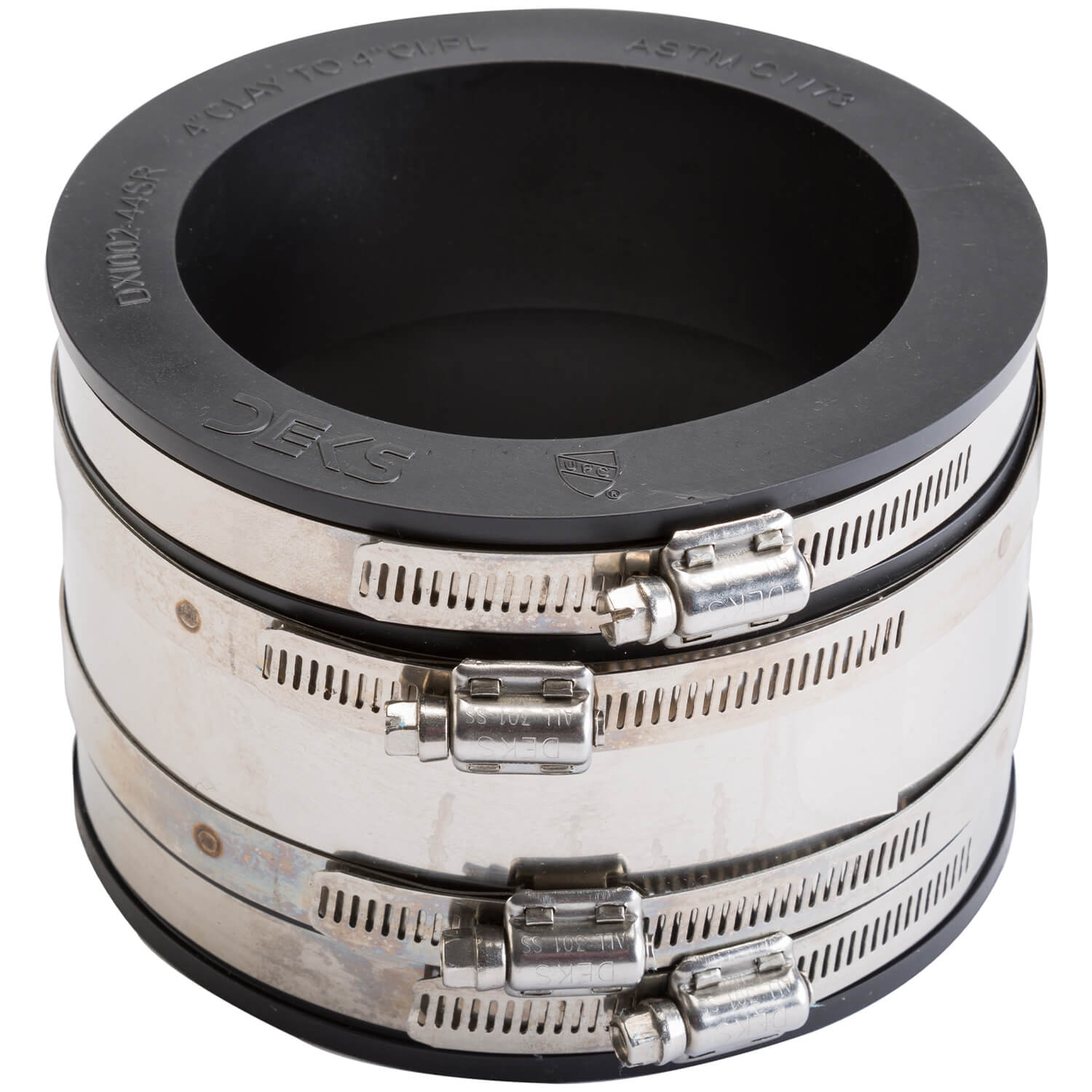

4" x 4" DEKS Series 1002 SR Stainless Steel Non-Shear Coupler – DX1002-44SR (CLEARANCE)

The DEKS Series 1002 SR Stainless Steel Non-Shear Coupler (DX1002-44SR) is designed to create a strong, leak-resistant connection between 4" clay and plastic (PVC) pipe in non-pressure drain, waste, and vent (DWV) systems. Featuring a heavy-duty stainless steel shear ring and four stainless steel gear bands, this shielded transition coupling provides added joint strength, improved pipe alignment, and superior resistance to shear forces in above and below-ground installations.

The flexible neoprene gasket forms a reliable seal while accommodating slight differences in pipe materials and outside diameters. Resistant to chemicals, ultraviolet rays, sewer gases, and root intrusion, the DX1002-44SR is an excellent choice for residential, commercial, municipal, and retrofit plumbing applications.

Features

• Connects 4" clay pipe to 4" plastic (PVC) pipe
• Heavy-duty stainless steel non-shear shield for increased joint strength
• Four corrosion-resistant stainless steel gear bands
• Flexible neoprene gasket provides a secure, leak-resistant seal
• Helps maintain proper pipe alignment and resists shear movement
• Resistant to chemicals, UV exposure, sewer gases, and root intrusion
• Quick and easy installation
• Ideal for non-pressure drain, waste, and vent (DWV) applications

Ideal Applications

• Sewer and drain systems
• Drain, Waste & Vent (DWV) piping
• Residential and commercial plumbing
• Retrofit repairs
• Roof drains
• Pipe cut-ins and system modifications

Specifications

• Part Number: DX1002-44SR
• Brand: DEKS
• Series: 1002 SR
• Size: 4" x 4"
• Connection: Clay to Plastic (PVC)
• Shield Material: Stainless Steel
• Bands: 4 Stainless Steel Gear Bands
• Application: Non-pressure drain, waste, and vent piping
