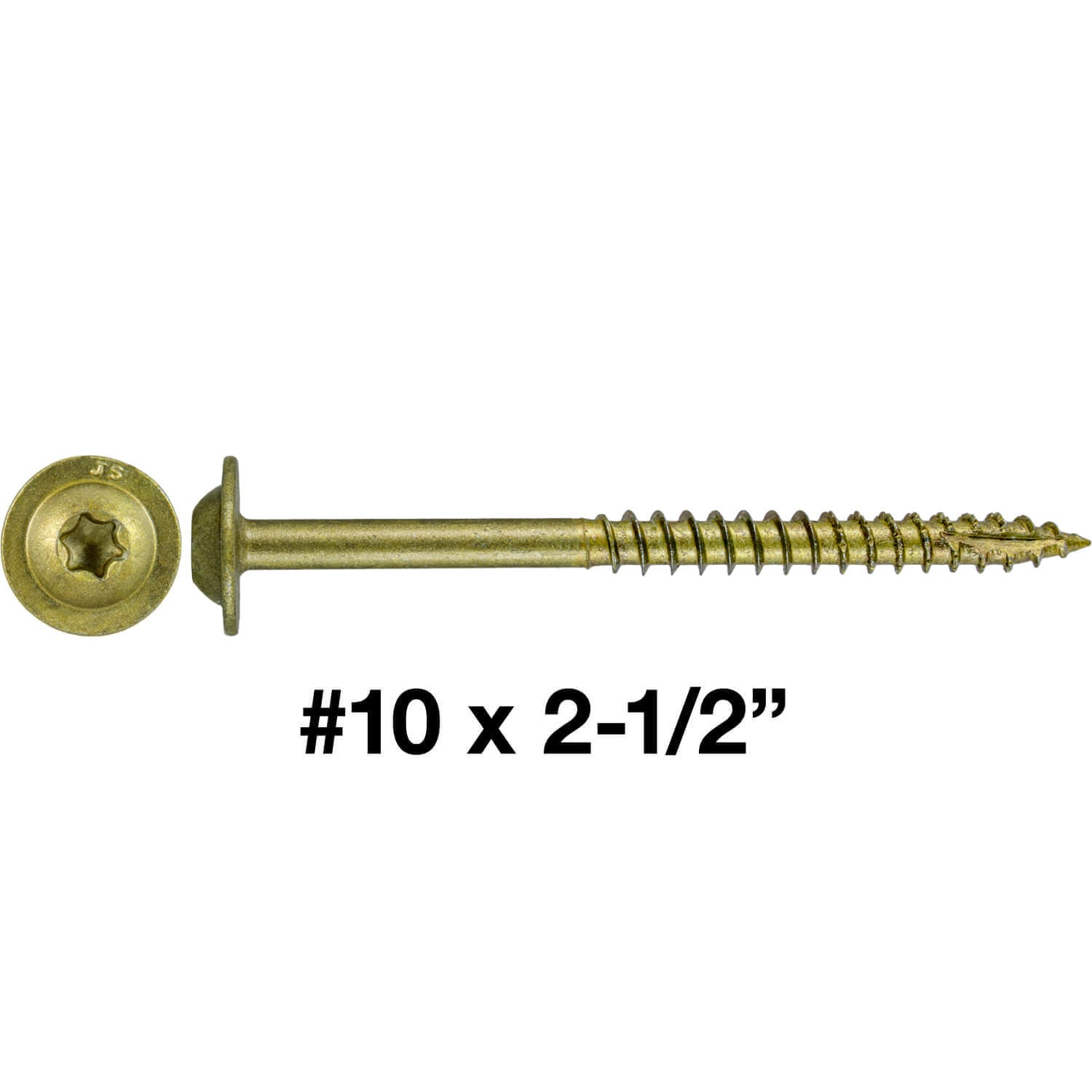

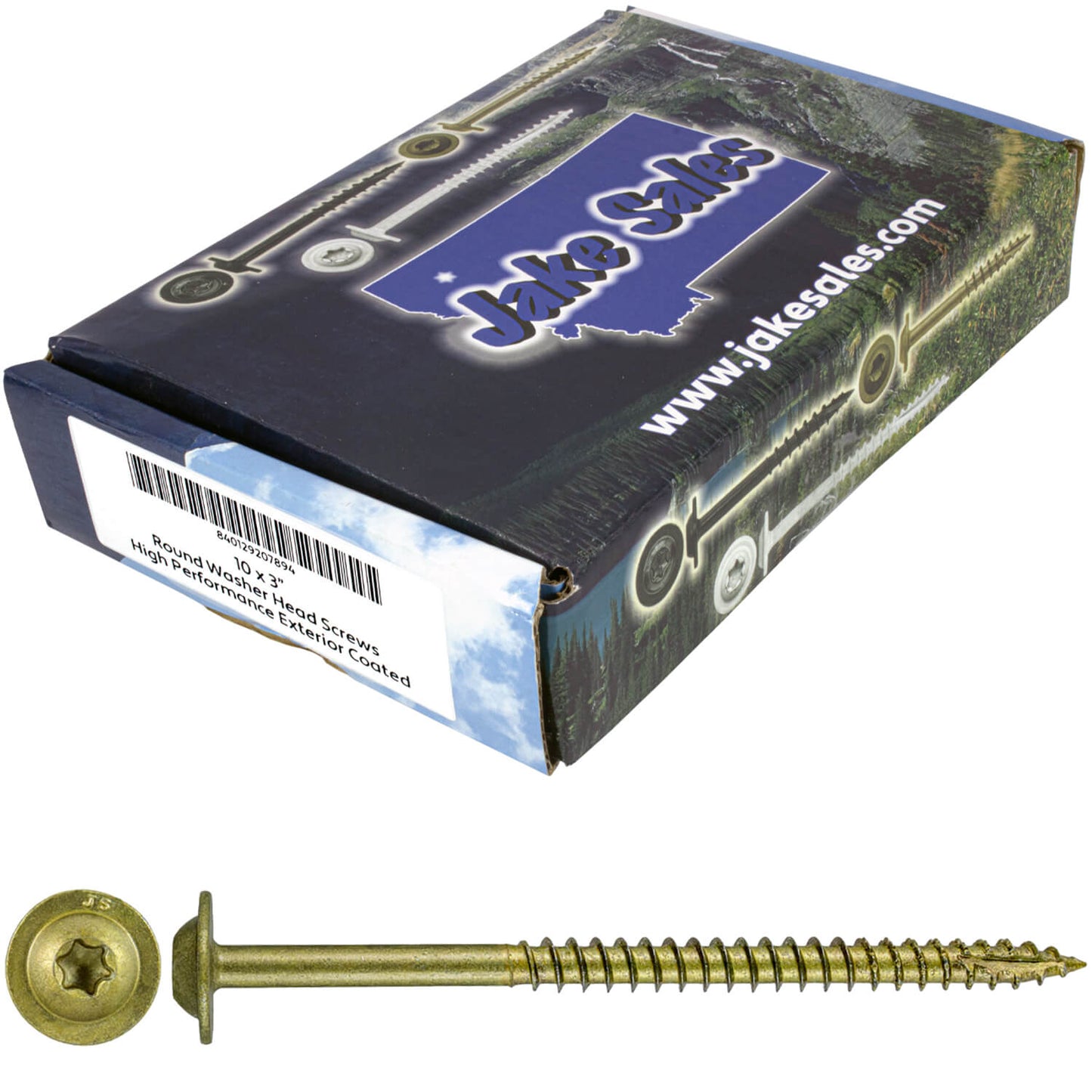

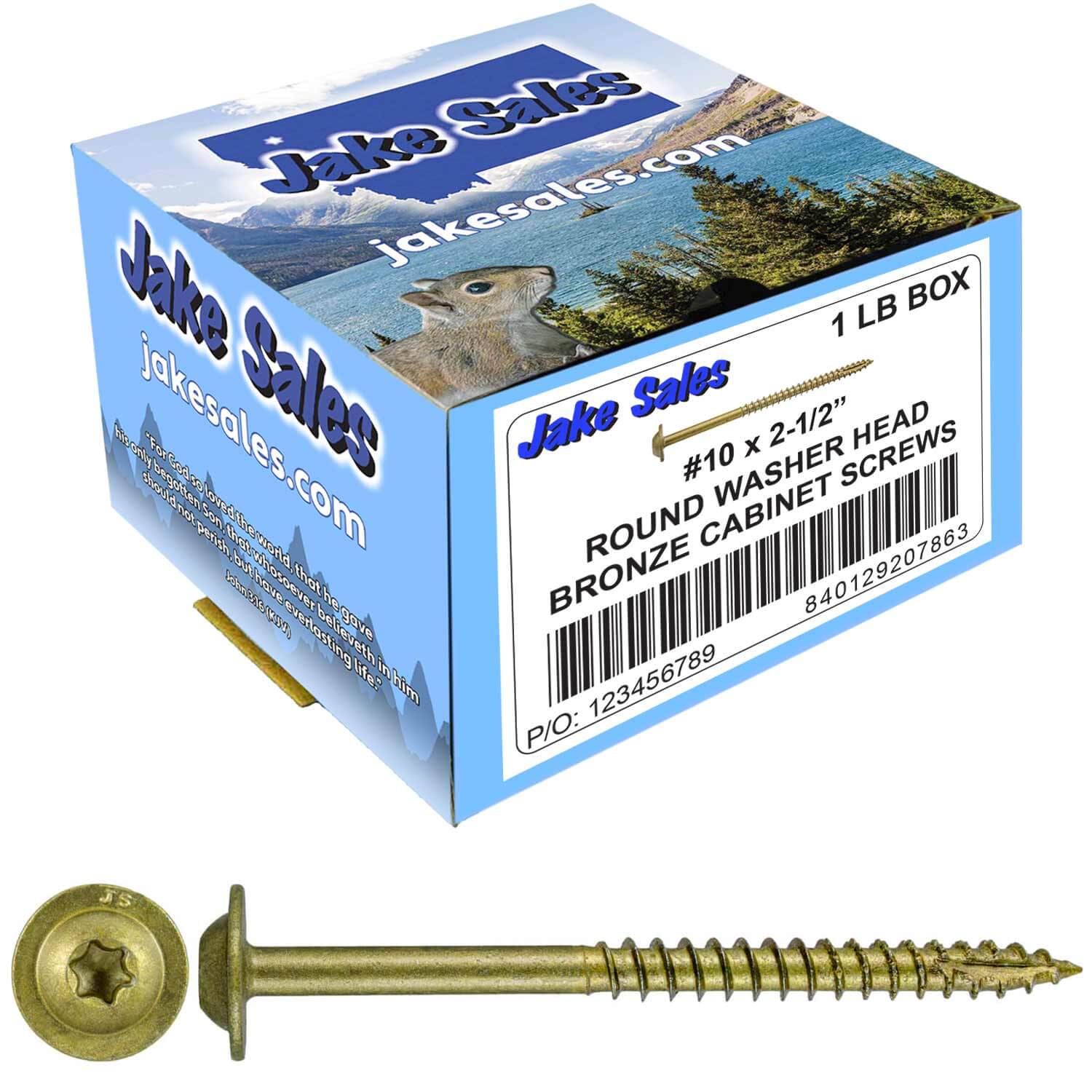

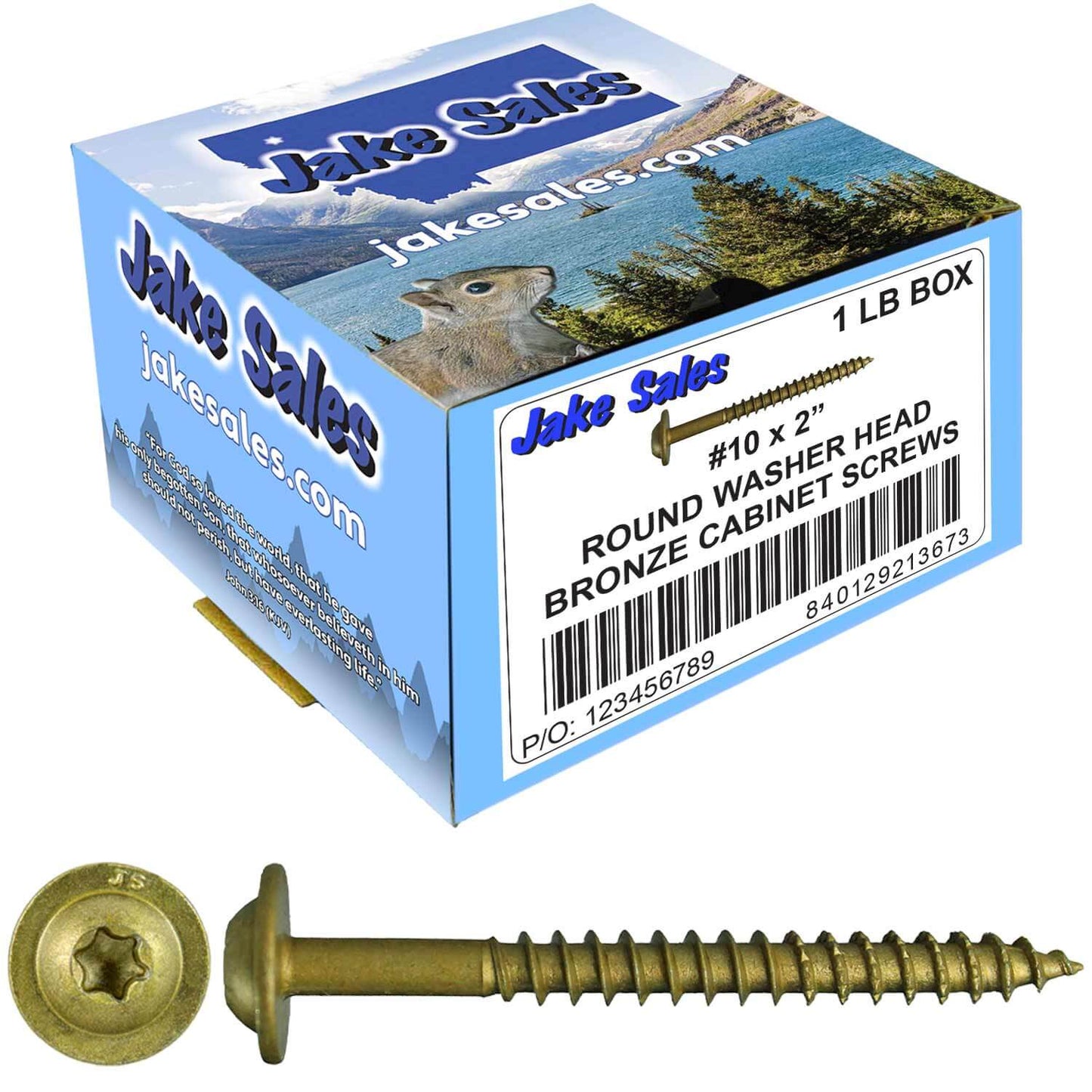

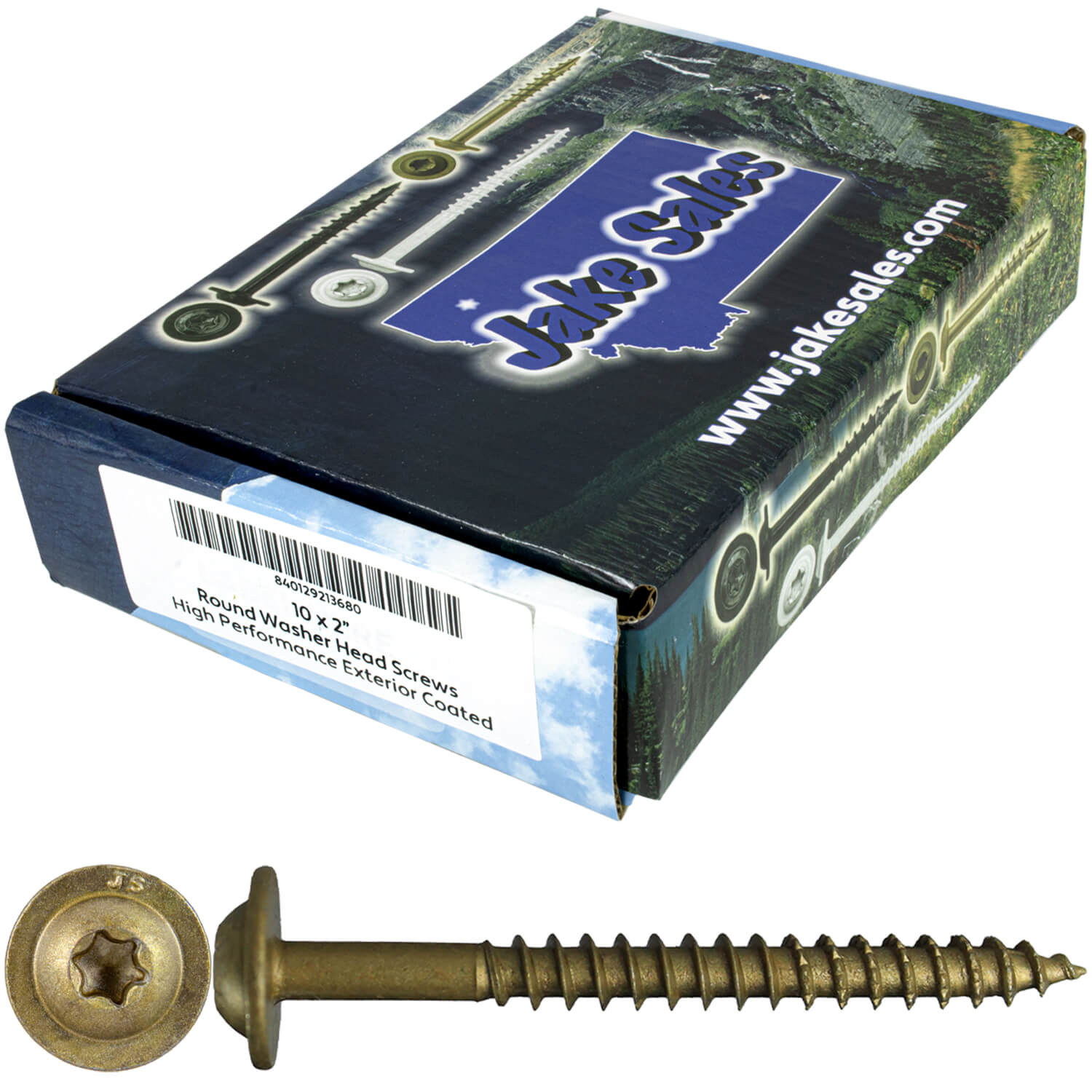

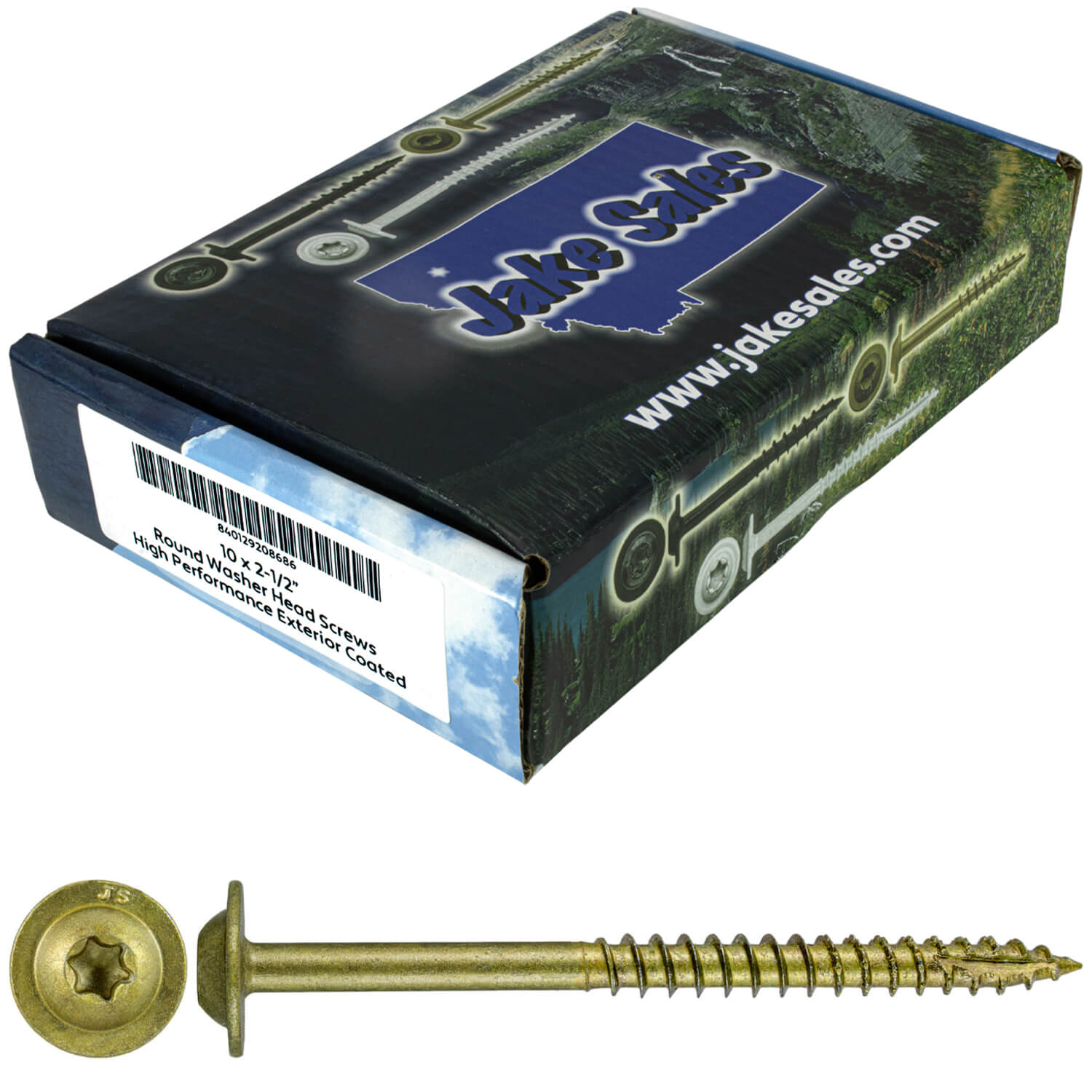

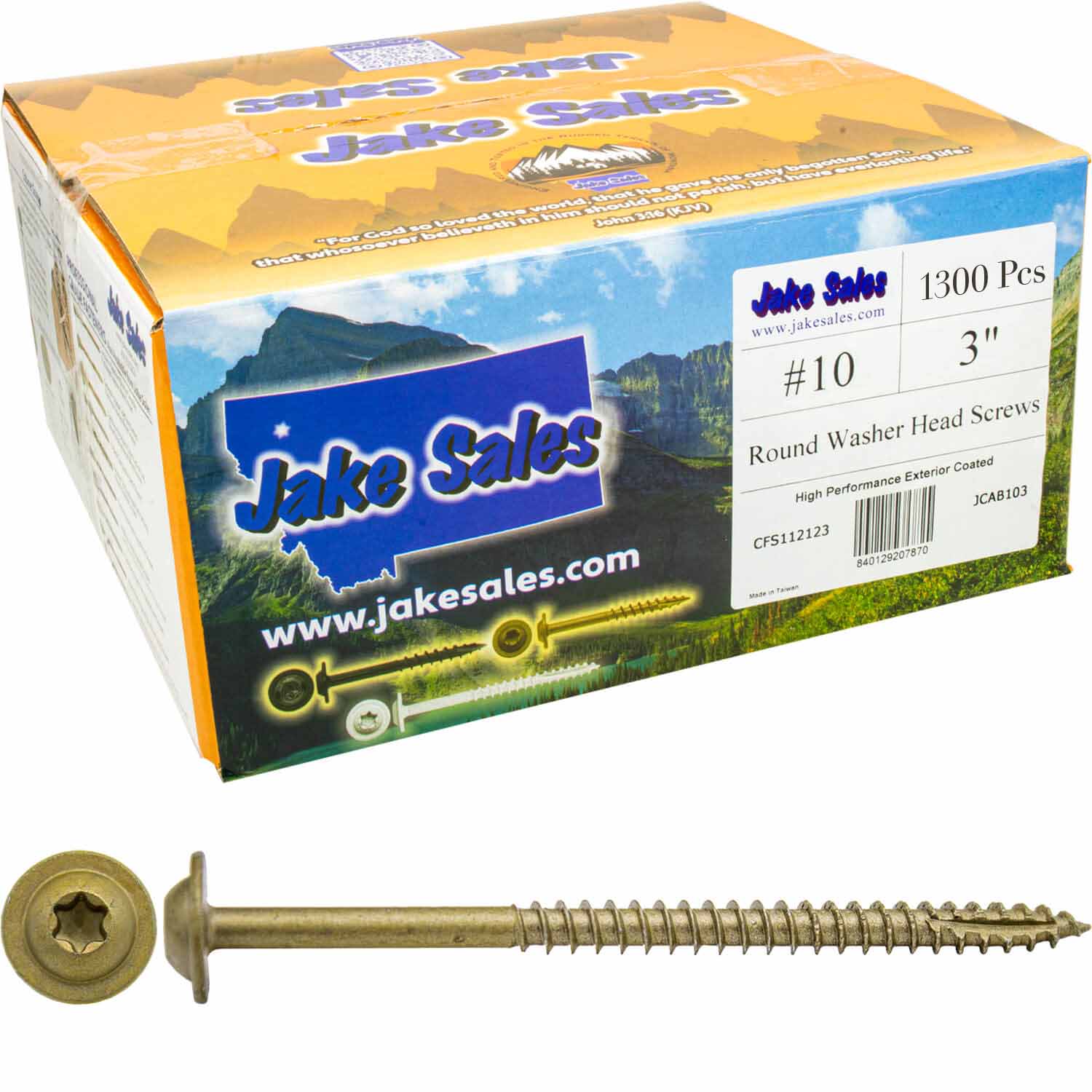

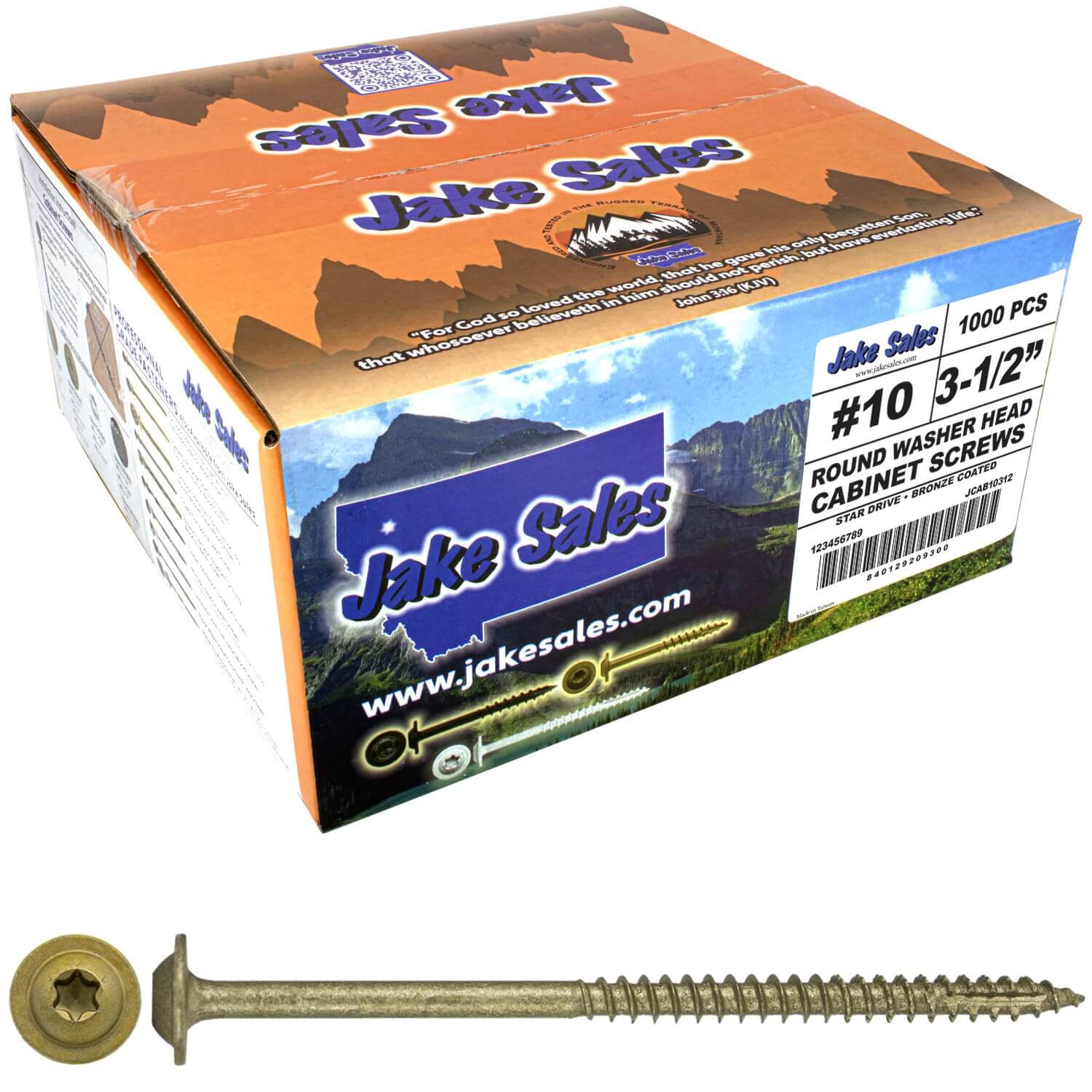

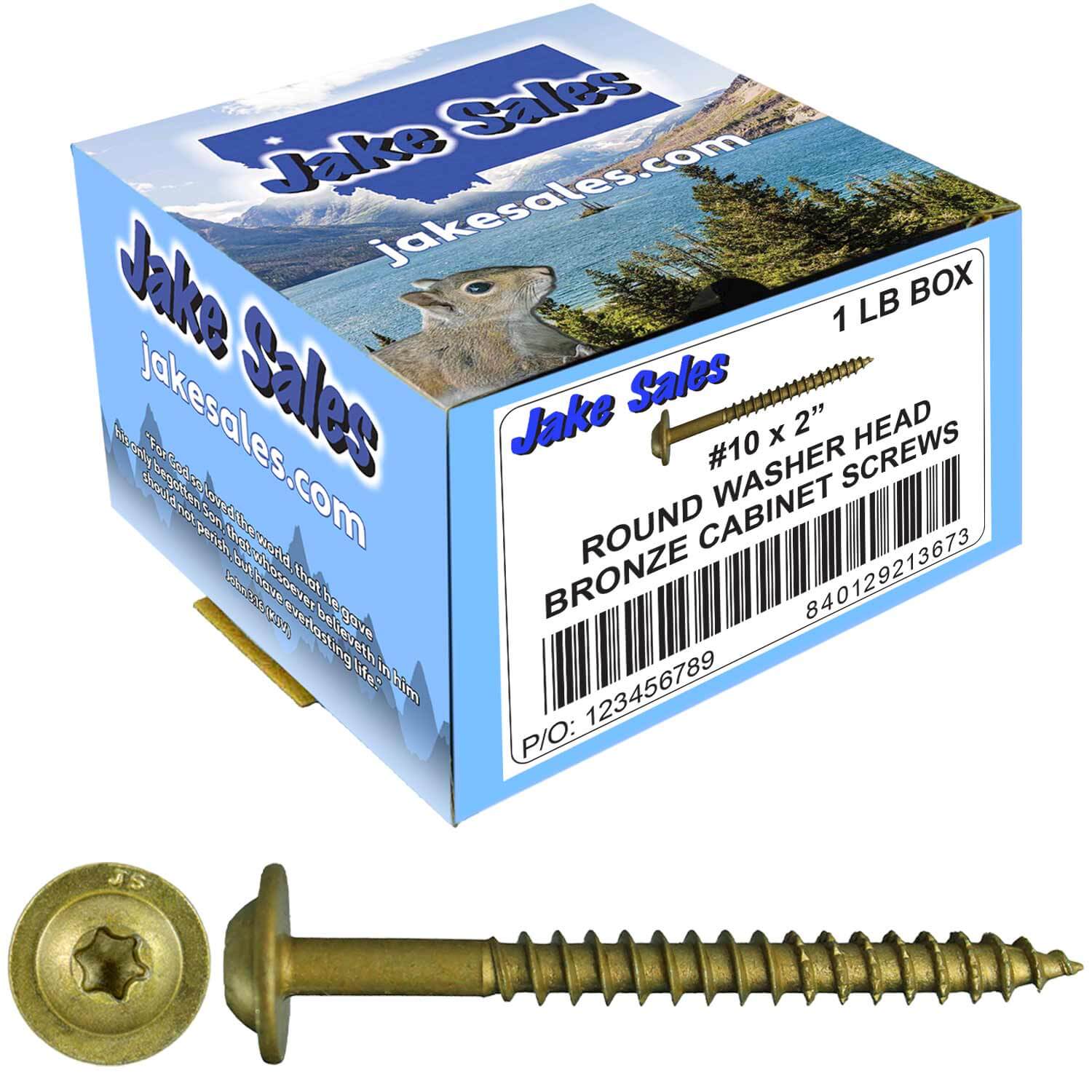

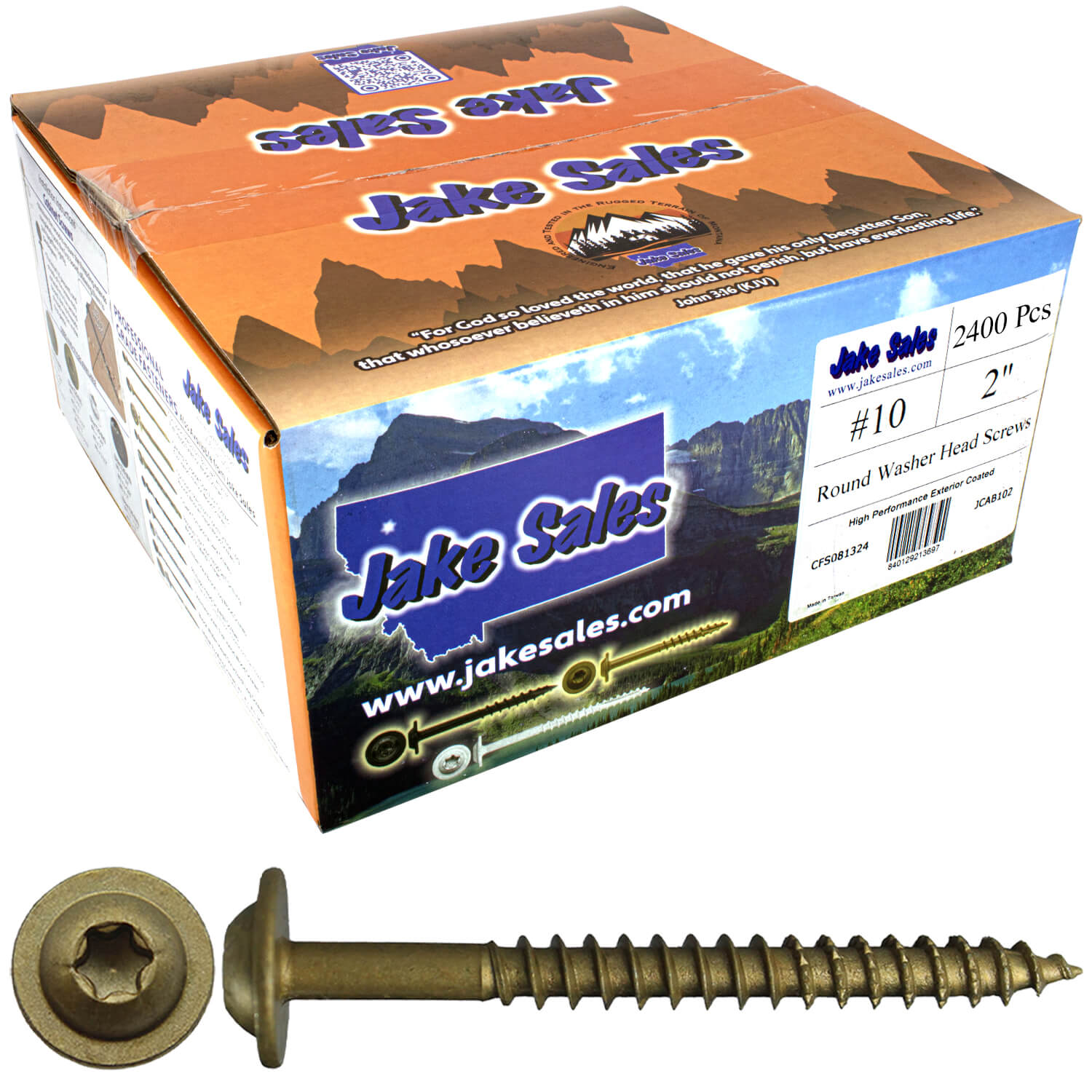

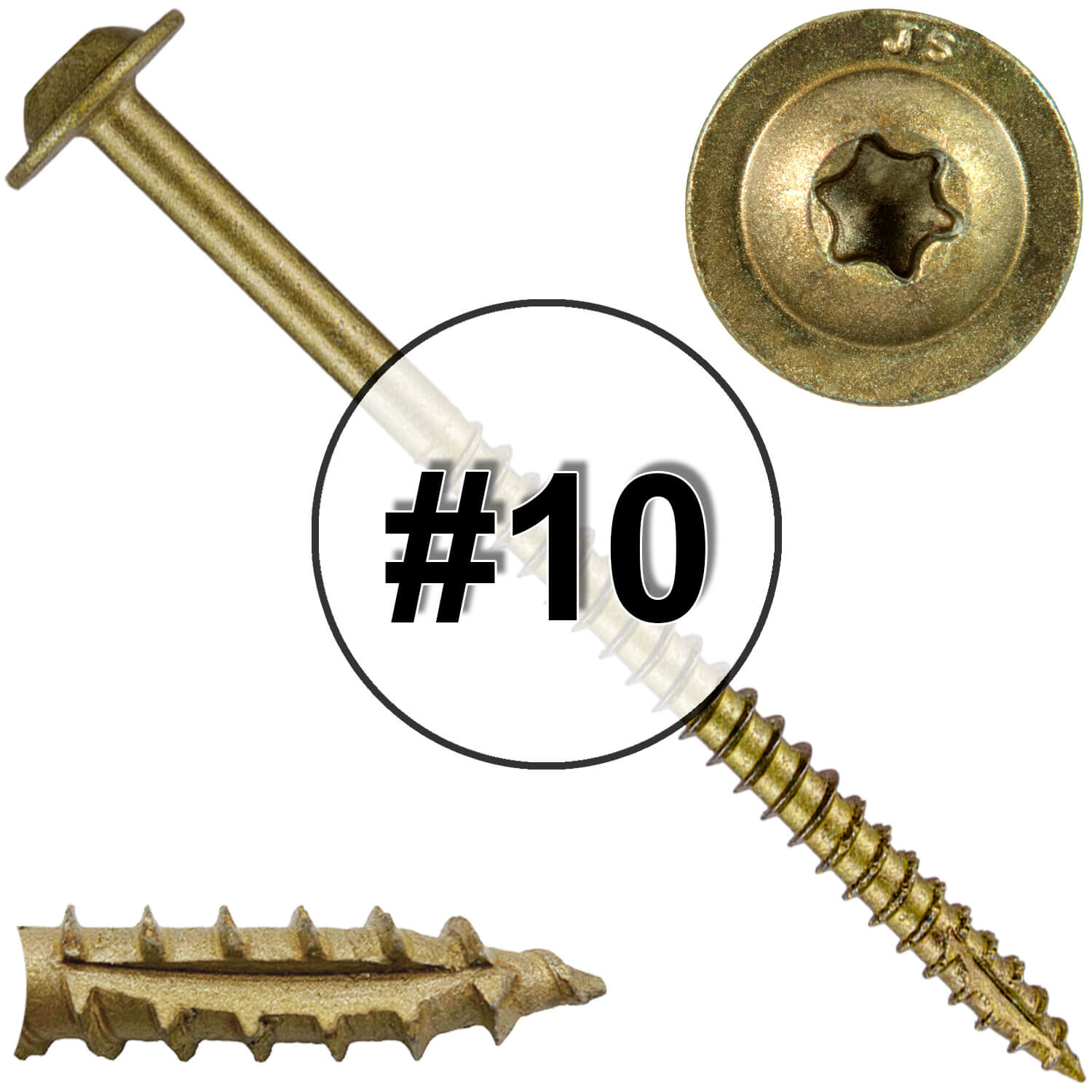

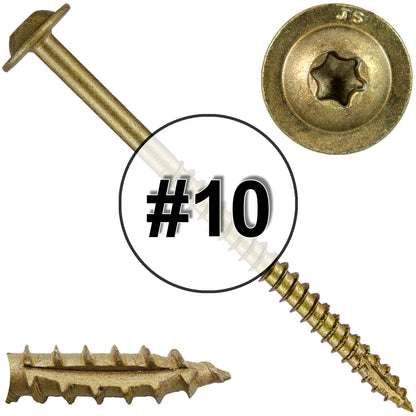

#10 Round Washer (Modified Truss) Head Screw Torx/Star Drive Head Wood Screw, Multipurpose Wood Screws for Construction, Cabinets and Furniture.

#10 Round Washer (Modified Truss) Head Screw Torx/Star Drive Head Wood Screw, Multipurpose Wood Screws for Construction, Cabinets and Furniture.

Regular price $23.85 USD
Regular price
RETAIL PRICE
$30.99 USD
Sale price $23.85 USD
Sale Sold out

In-Stock Orders Will Ship Within
Hours
Minutes
Seconds

HOURS

MINUTES

SECONDS

View full details
#10 Round Washer (Modified Truss) Head Screw Torx/Star Drive Head Wood Screw, Multipurpose Wood Screws for Construction, Cabinets and Furniture.

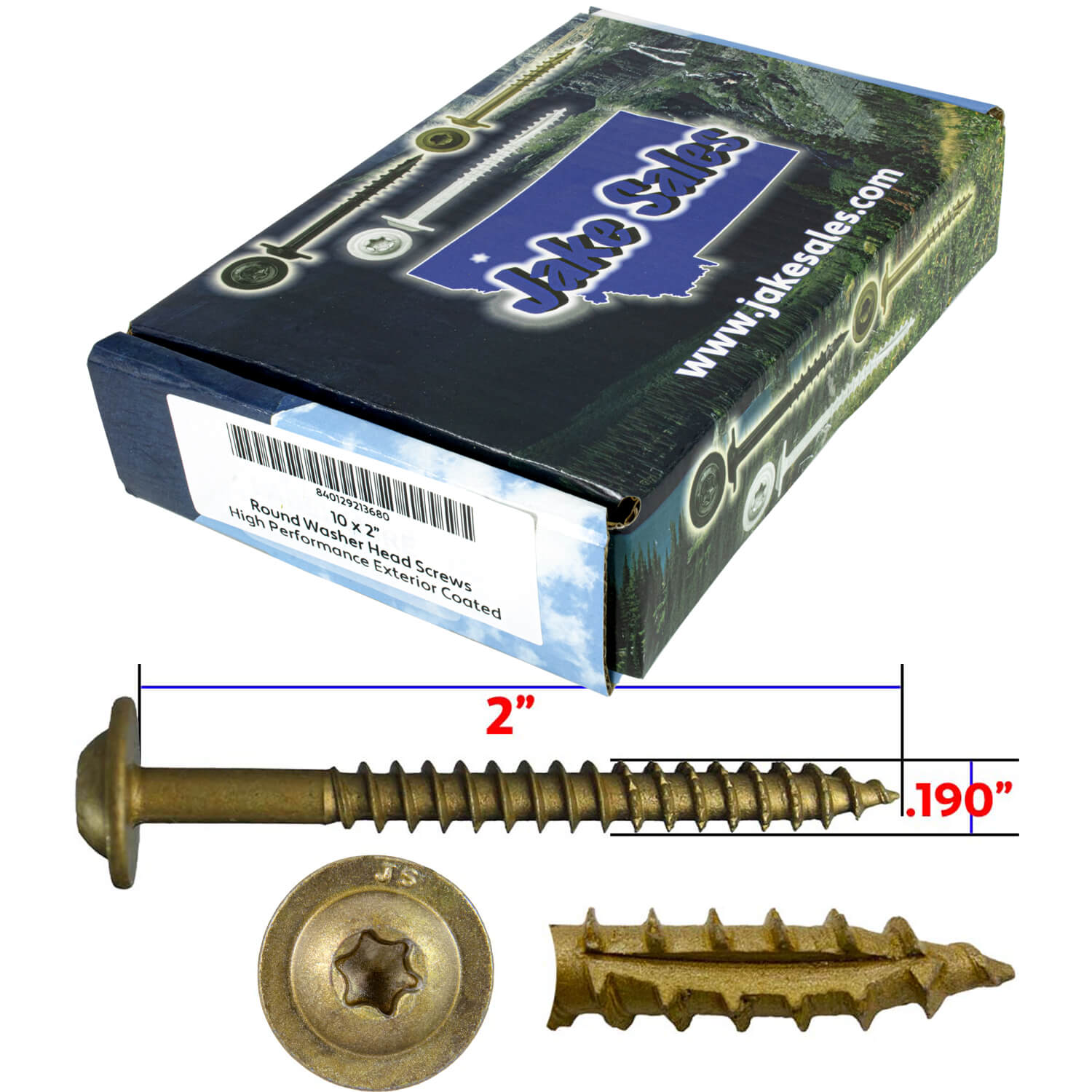

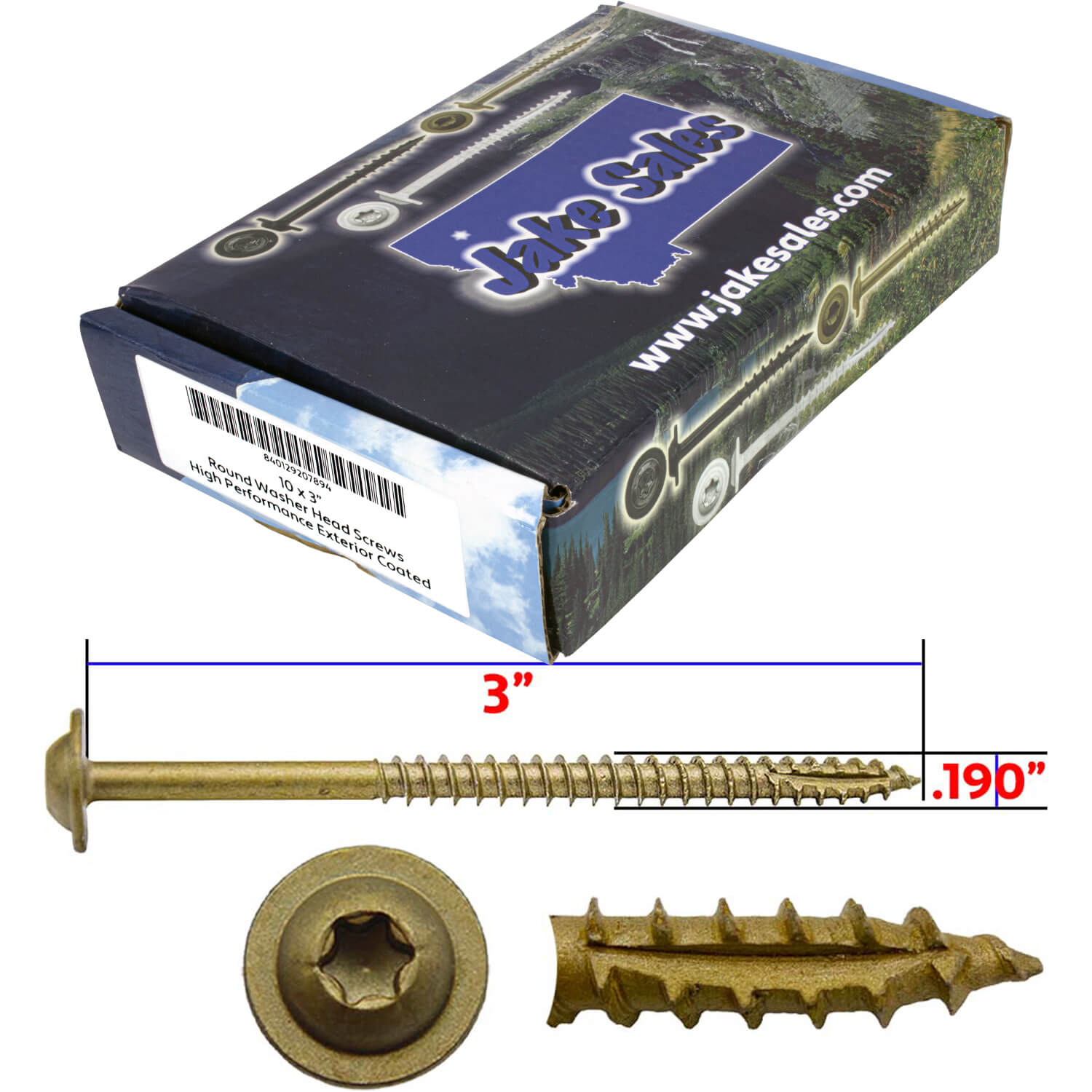

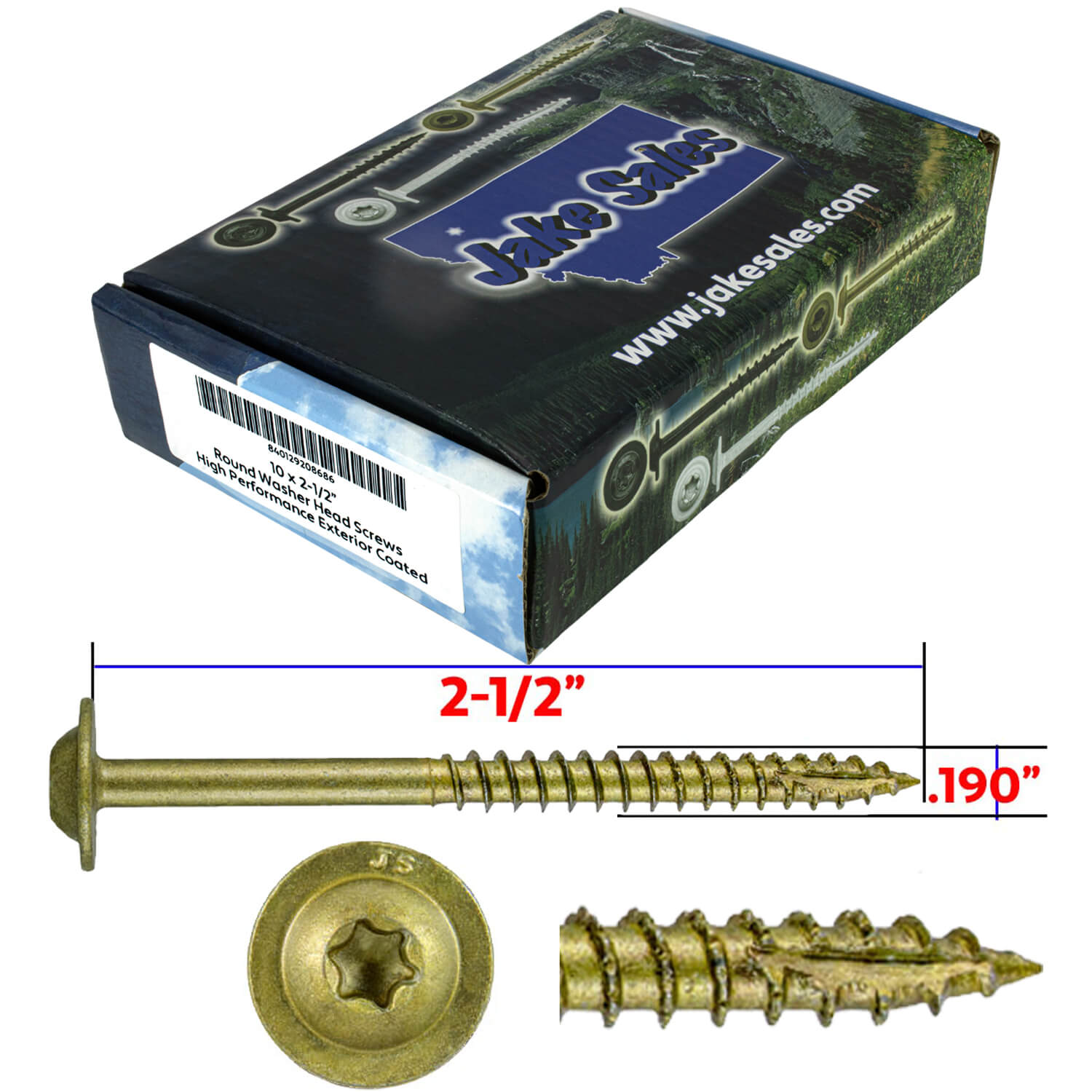

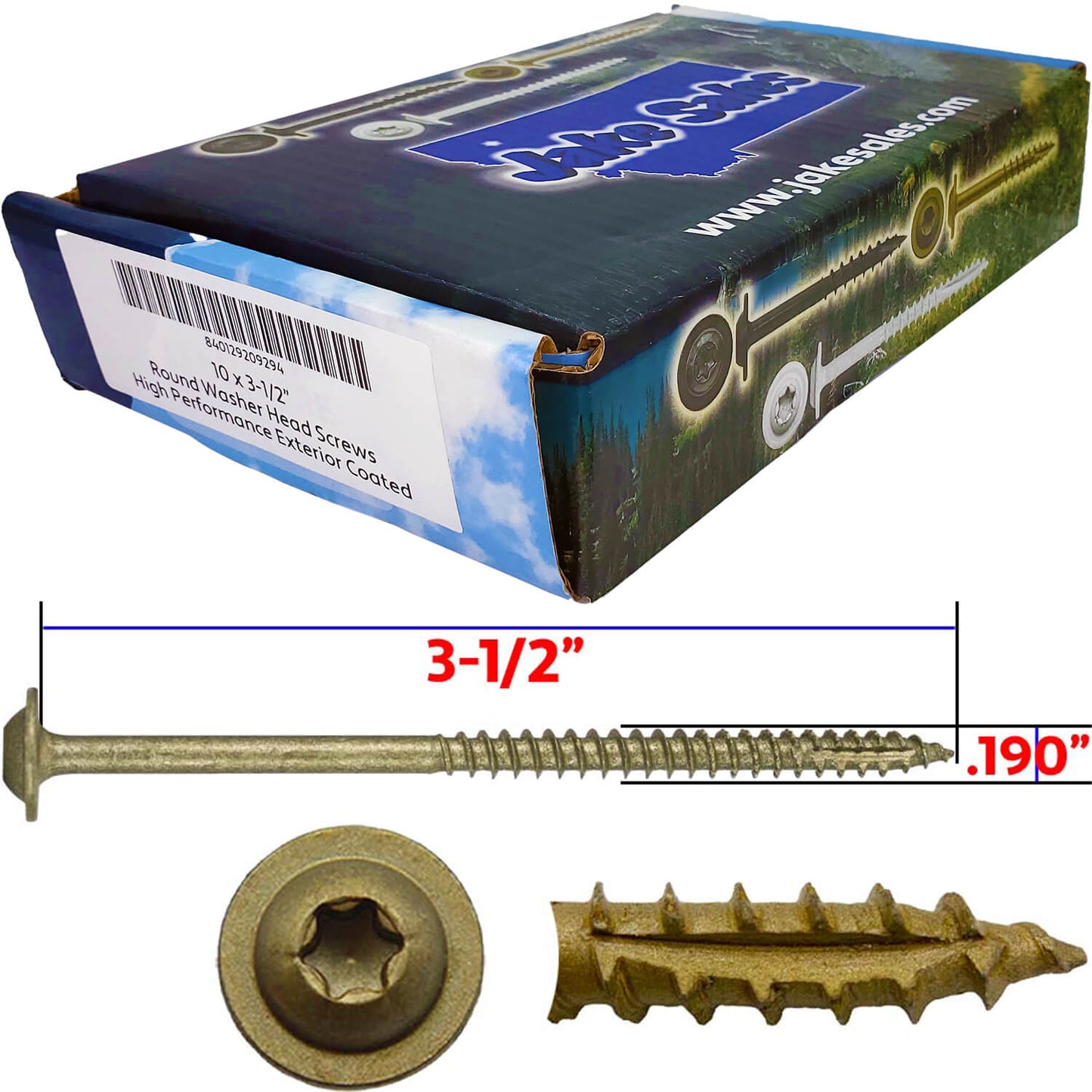

✔ Screw Dimensions: shaft diameter .19" - height and width .5" - head diameter 0.145" - Use T-25 Torx
✔ These screws have a triple layer ACQ compatible bronze coating for exterior or interior use
✔ Screws have been through 1,200 Hours of salt spray testing without coating or screw failure

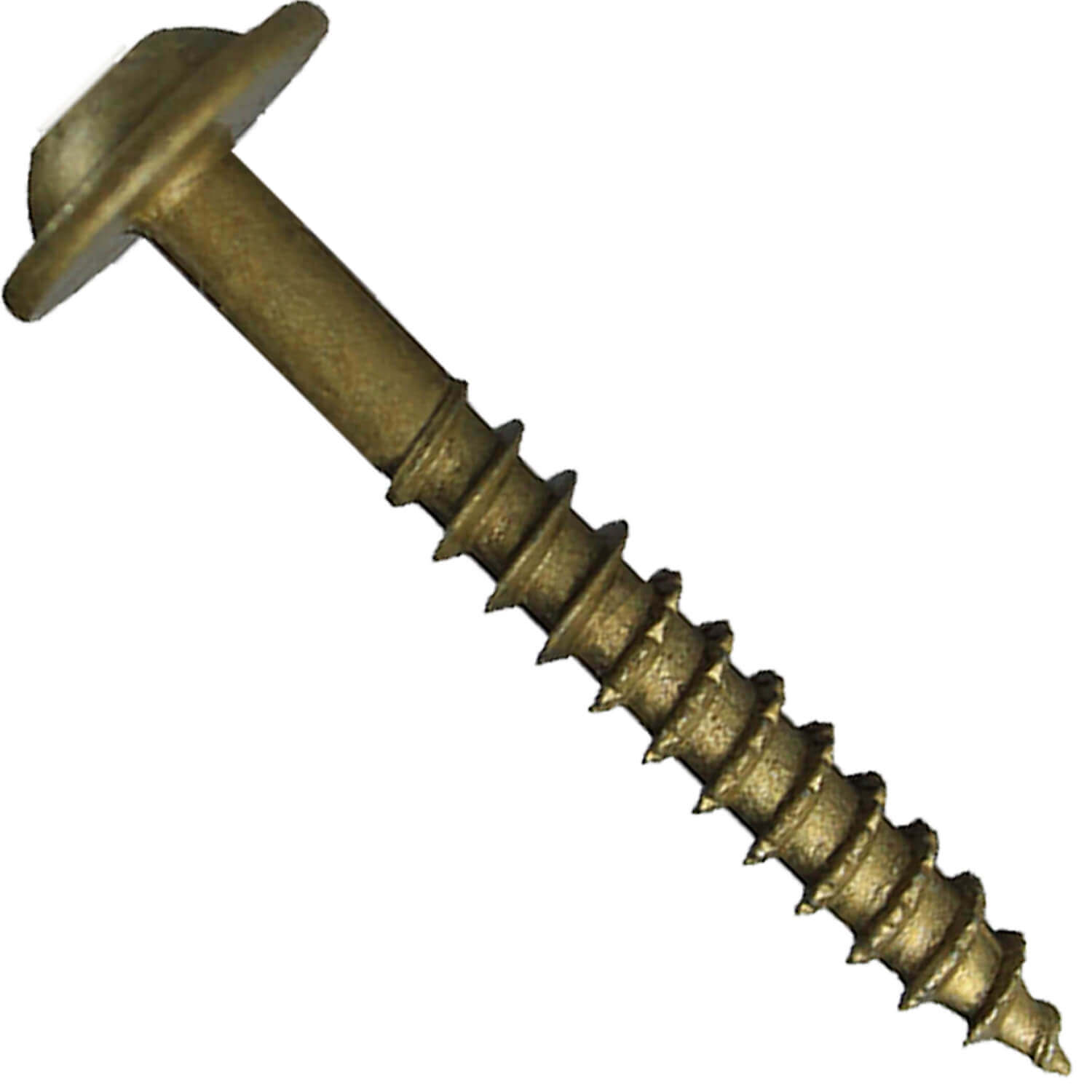

✔ Modified truss washer head wood screws with have great compression strength
✔ Heat-treated hardened steel for high tensile and high shear strength
✔ Deep, wide, sharp screw threads provide maximum holding power, cut clean through material

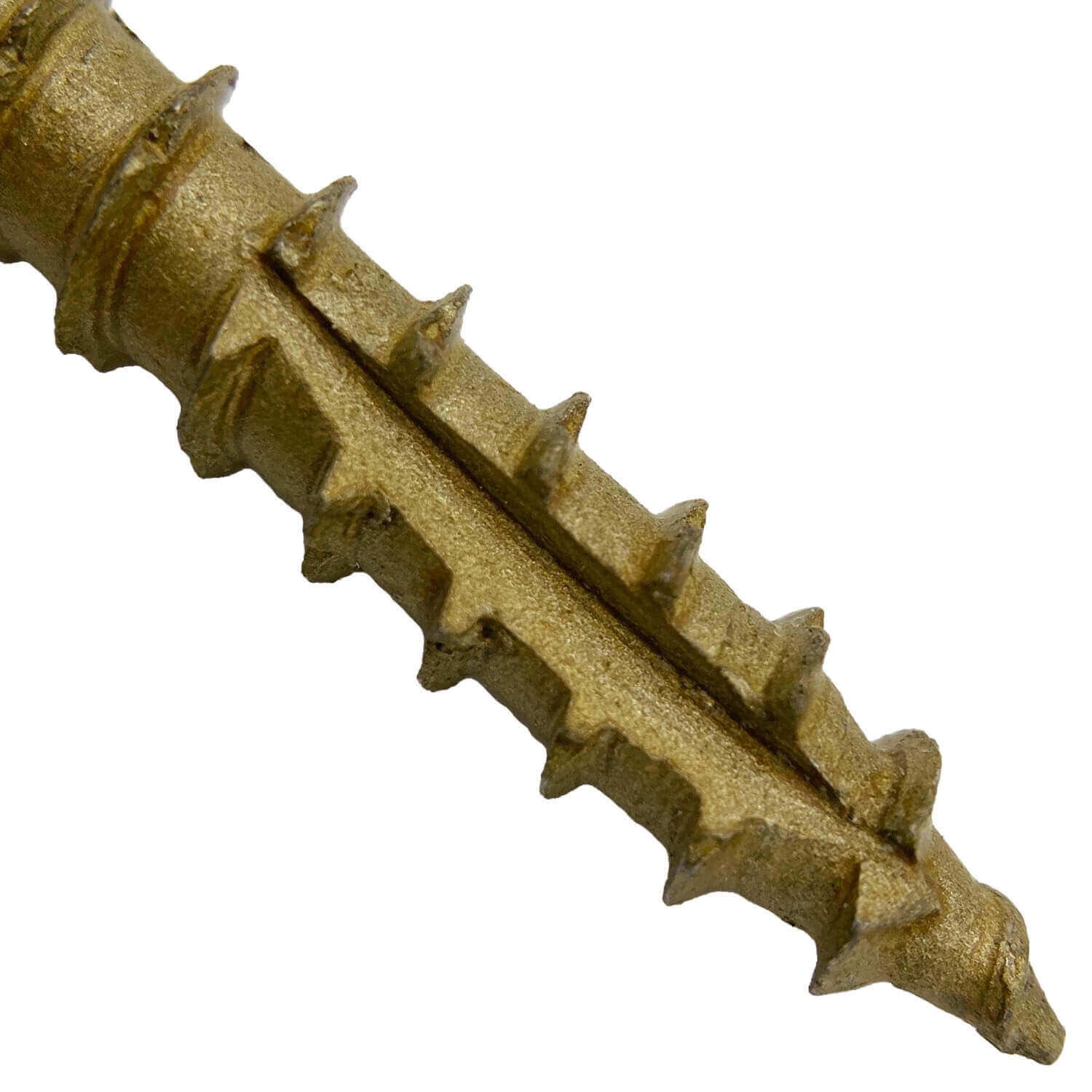

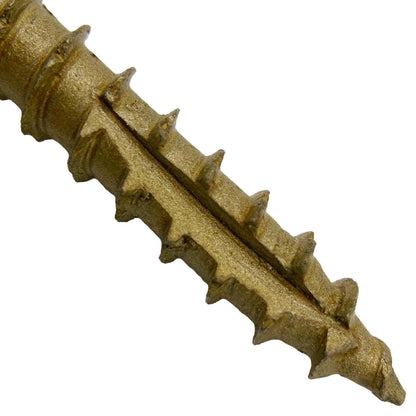

✔ Type 17 notched screw point, quick starts without "Walking", reducing need for pre-drilling

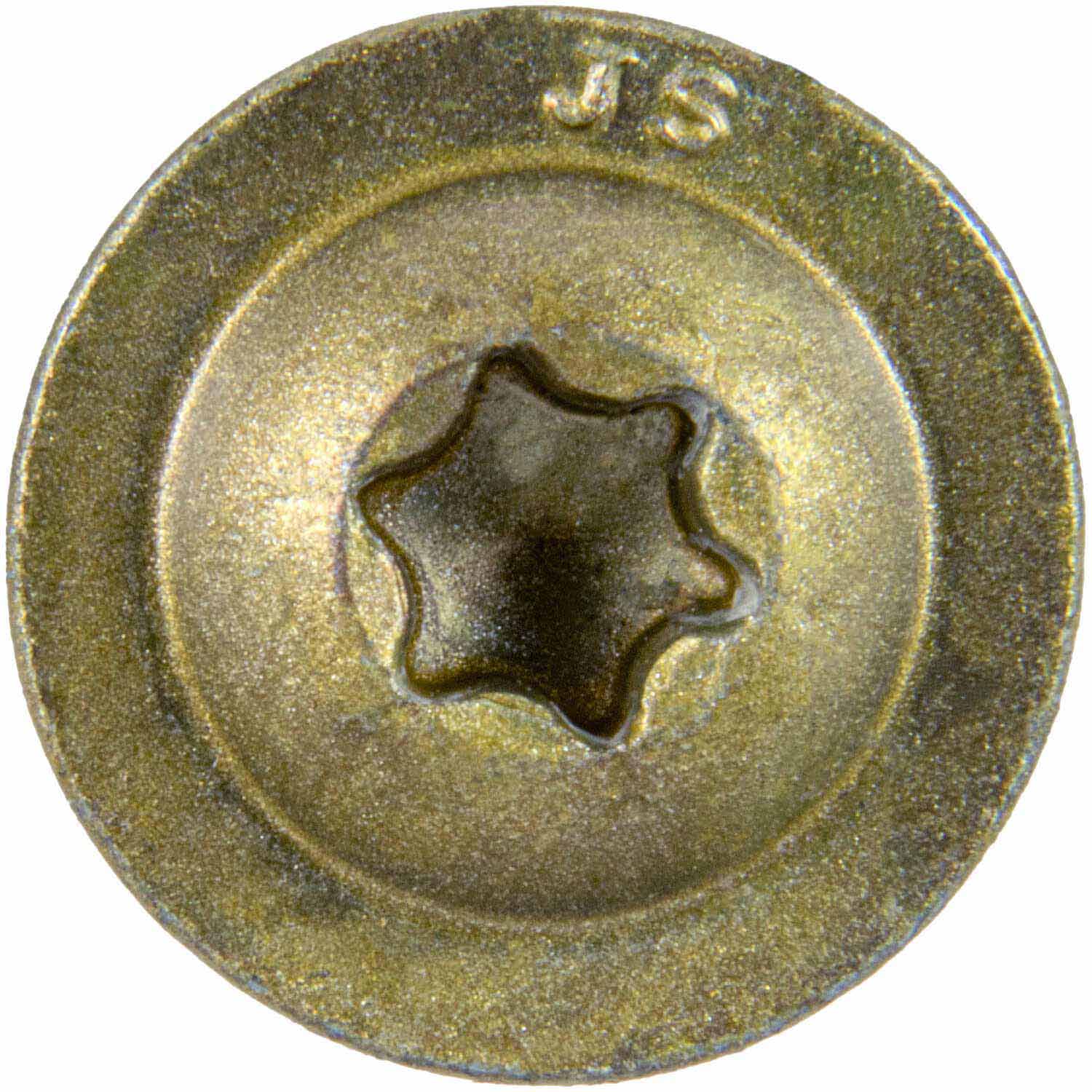

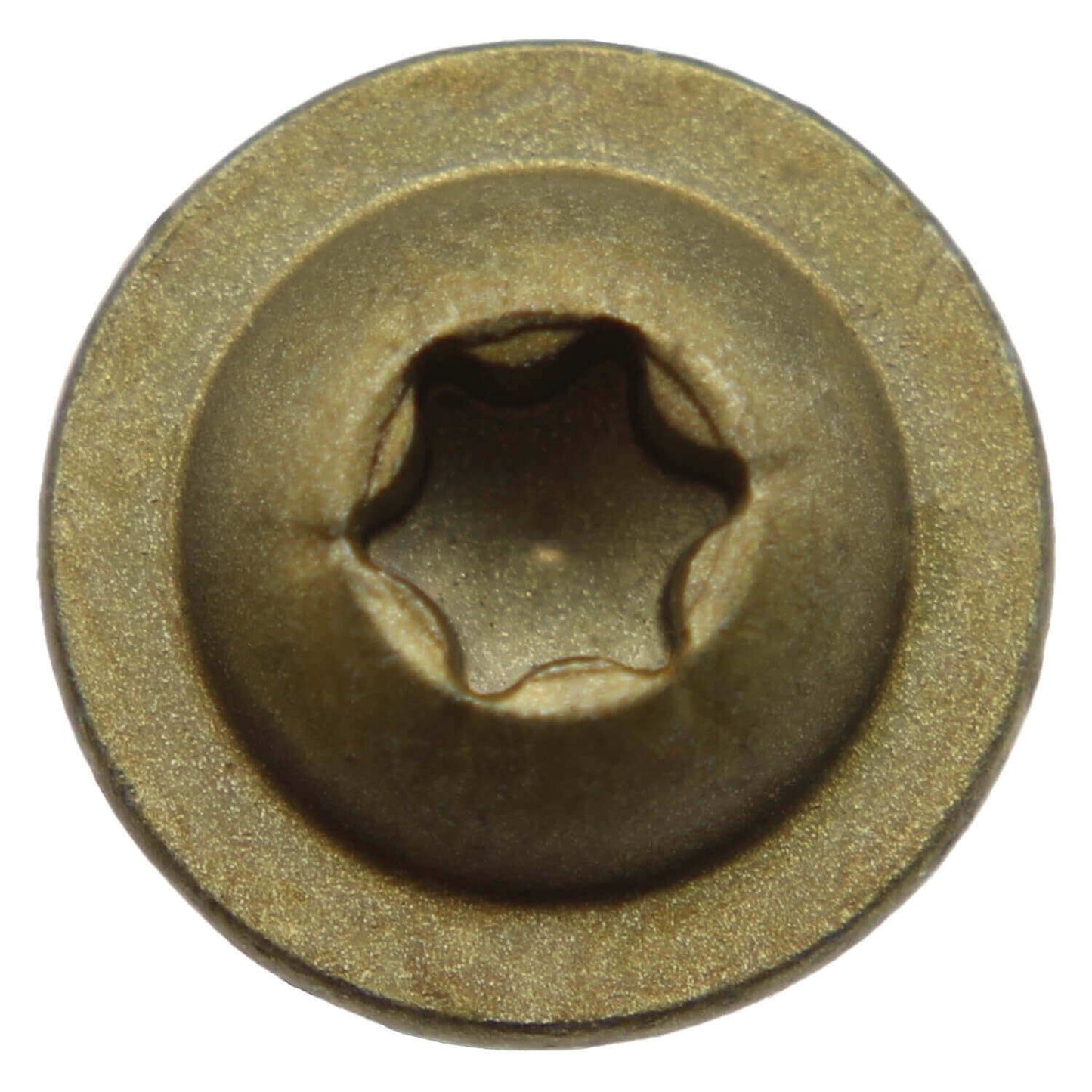

✔ Deep Six-Lobe Star Drive Recess (torx) reduces cam-out end load during installations


Excellent Screws for Cabinetry, Furniture, Roofing Framing. T25 Torx/Star Driver Bit, Torx/Star Drive Delivers Twice the Torque of Phillips or Square Drive Screws. High Quality Screw Threads Cut Cleanly and Easily Through Tough Materials, Both Hard and Soft Wood.

Screw Engineering Specs:
Average Shear Strength of #10 Shank ---- 2399 lbs
Average Pull-Out Strength ----------------- 1283 lbs
(Screw Pull Out is Calculated with a 3" Length Screw in the wood species: Yellow Pine Wood)

Installation Instructions  Available Here

Need a T25 Torx/Star Drive Bit  Available Here

Screw Size Package Size Approximate Screw Count Torx Bit Size Interior/Exterior

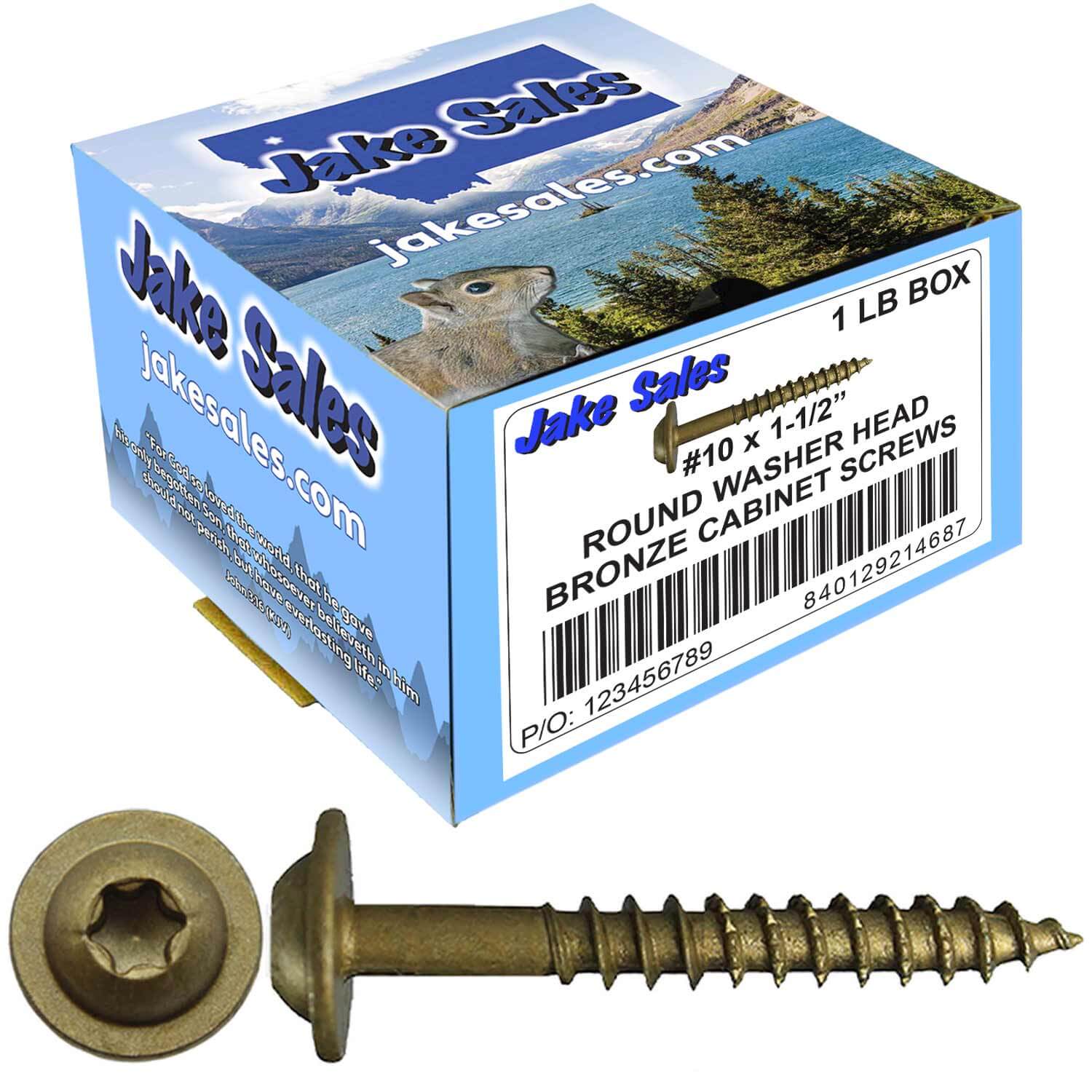

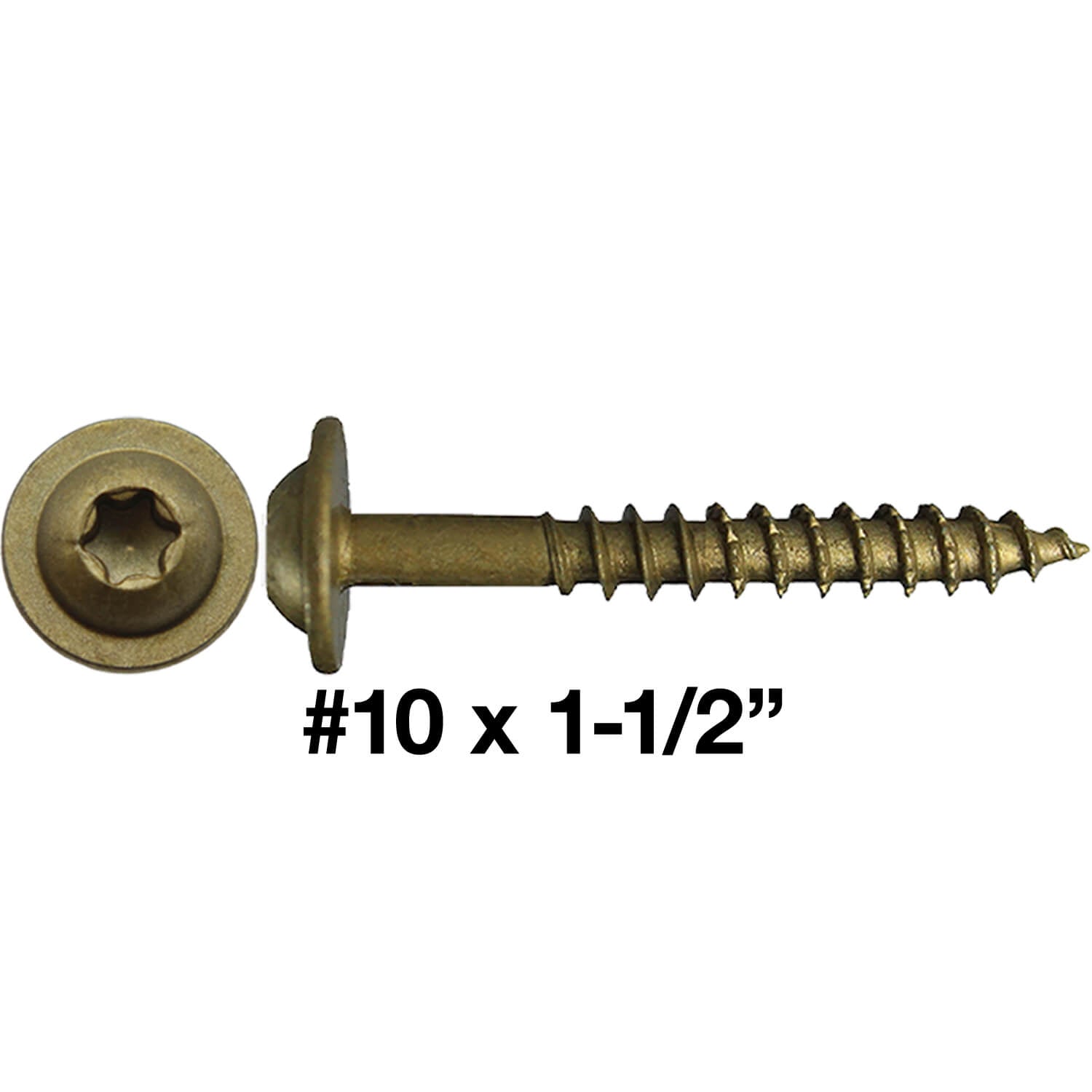

10 x 1-1/2" 1 Pound 112 T25 Exterior

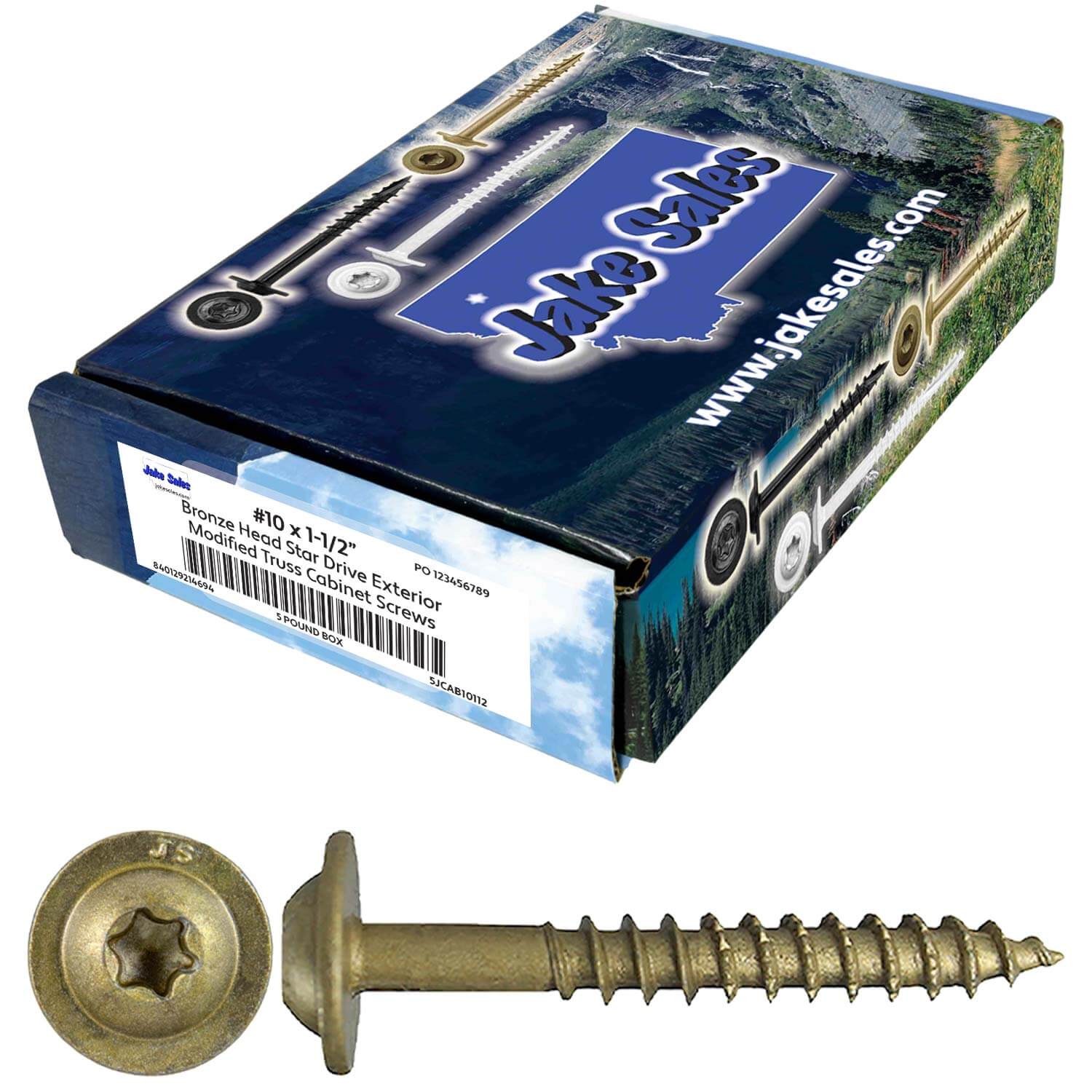

10 x 1-1/2" 5 Pounds 560 T25 Exterior

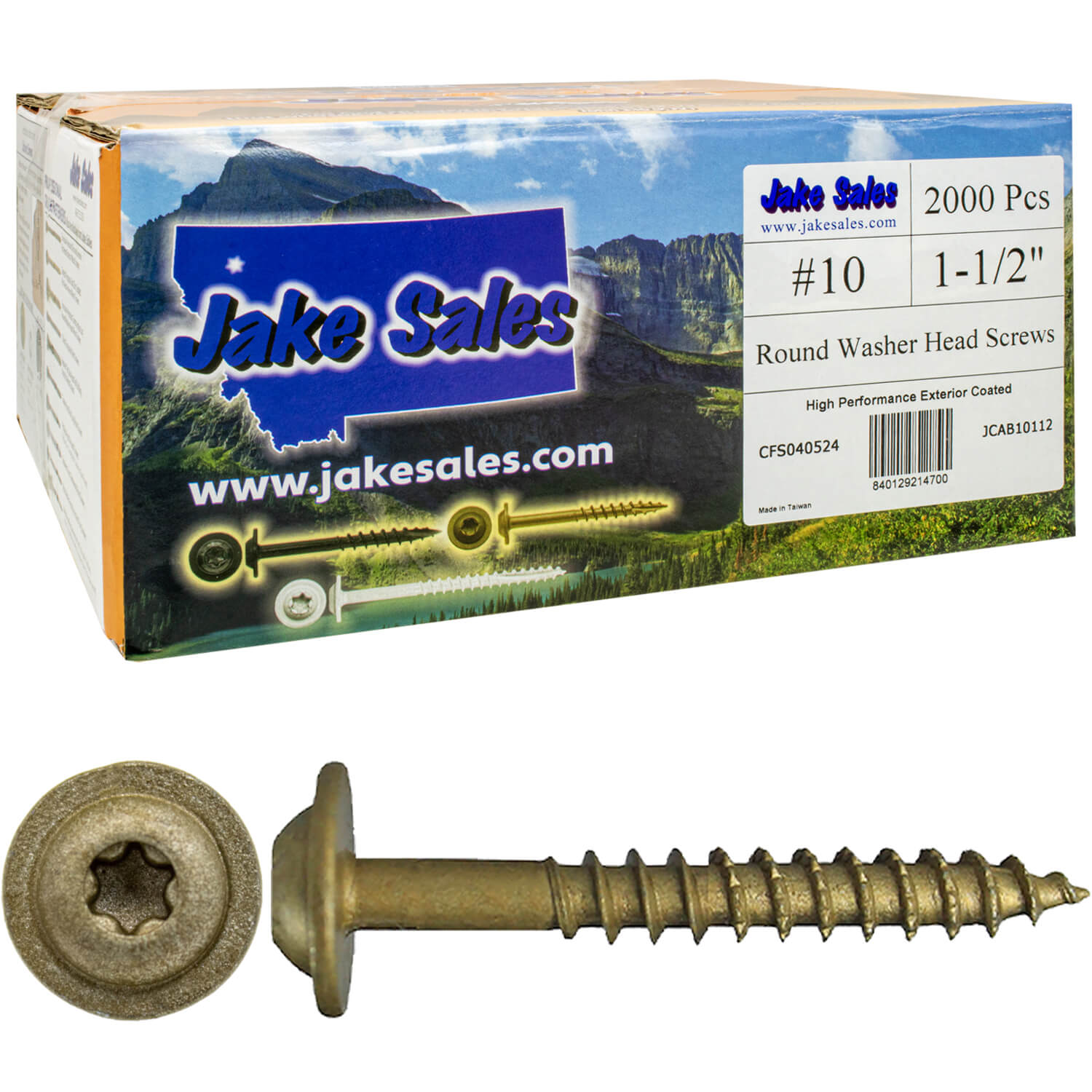

10 x 1-1/2" Full Box 2000 T25 Exterior

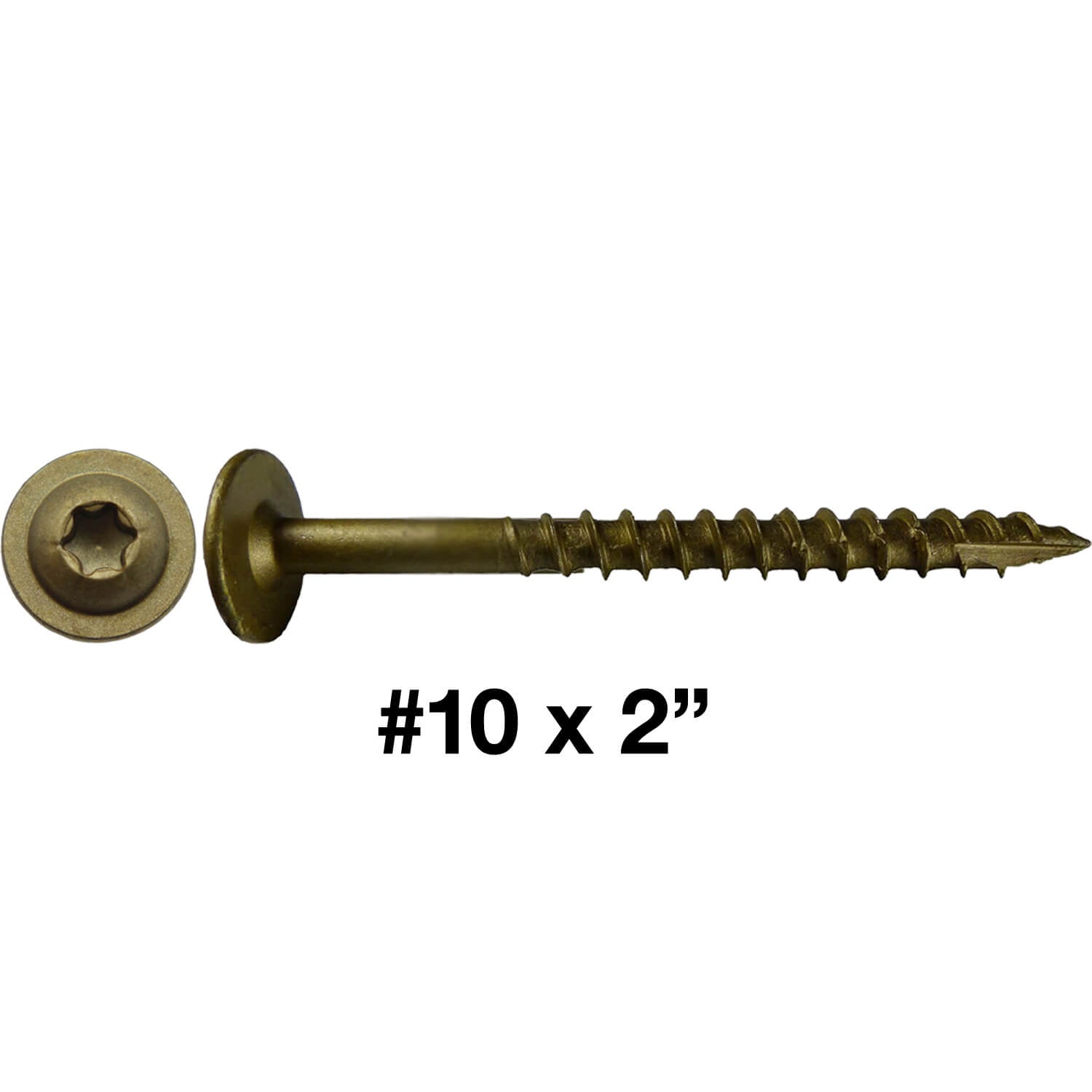

10 x 2" 1 Pound 83 T25 Exterior
10 x 2" 5 Pounds 415 T25 Exterior
10 x 2" Full Box 2,500 T25 Exterior
10 x 2-1/2" 1 Pound 69 T25 Exterior
10 x 2-1/2" 5 Pounds 395 T25 Exterior

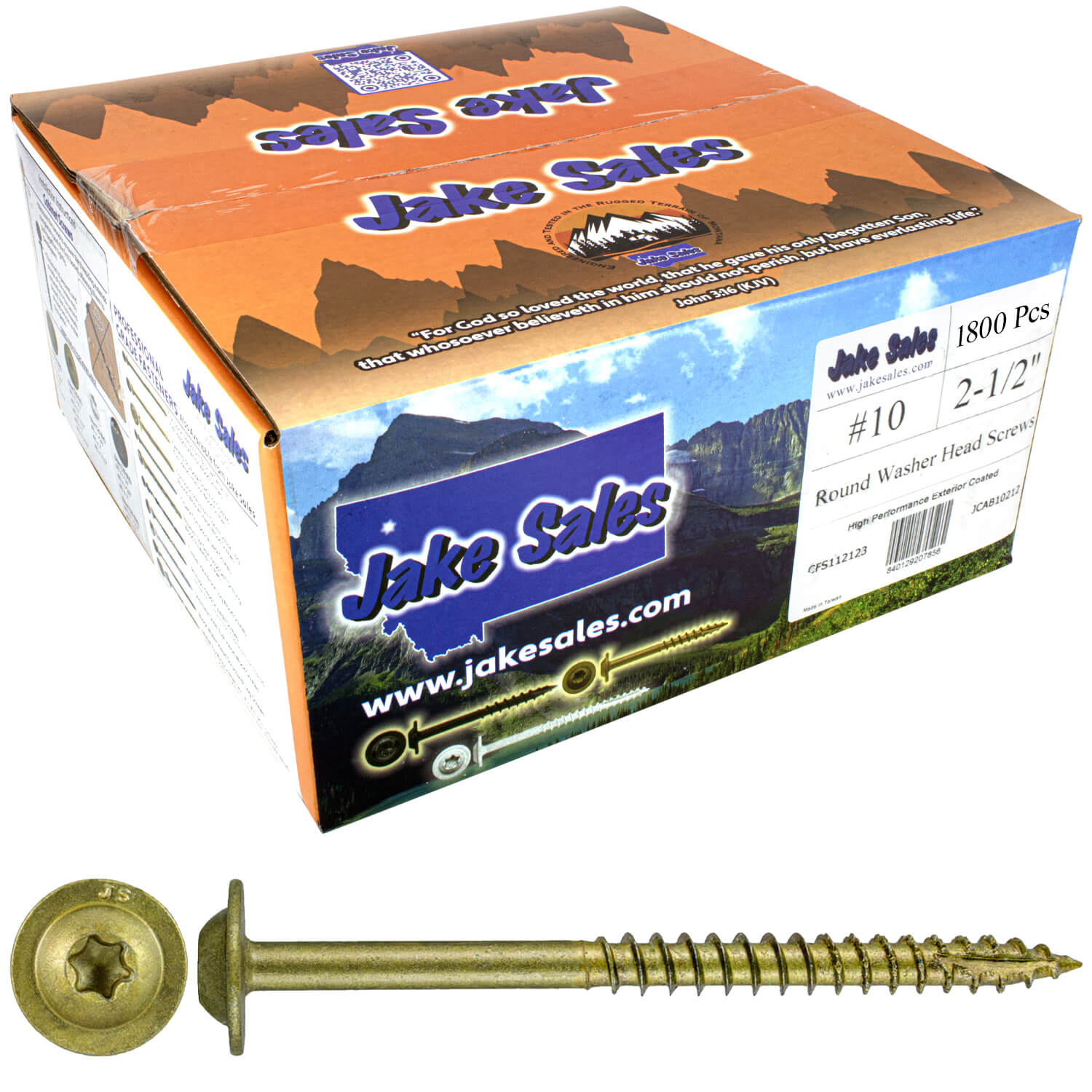

10 x 2-1/2" Full Box 2,000 T25 Exterior

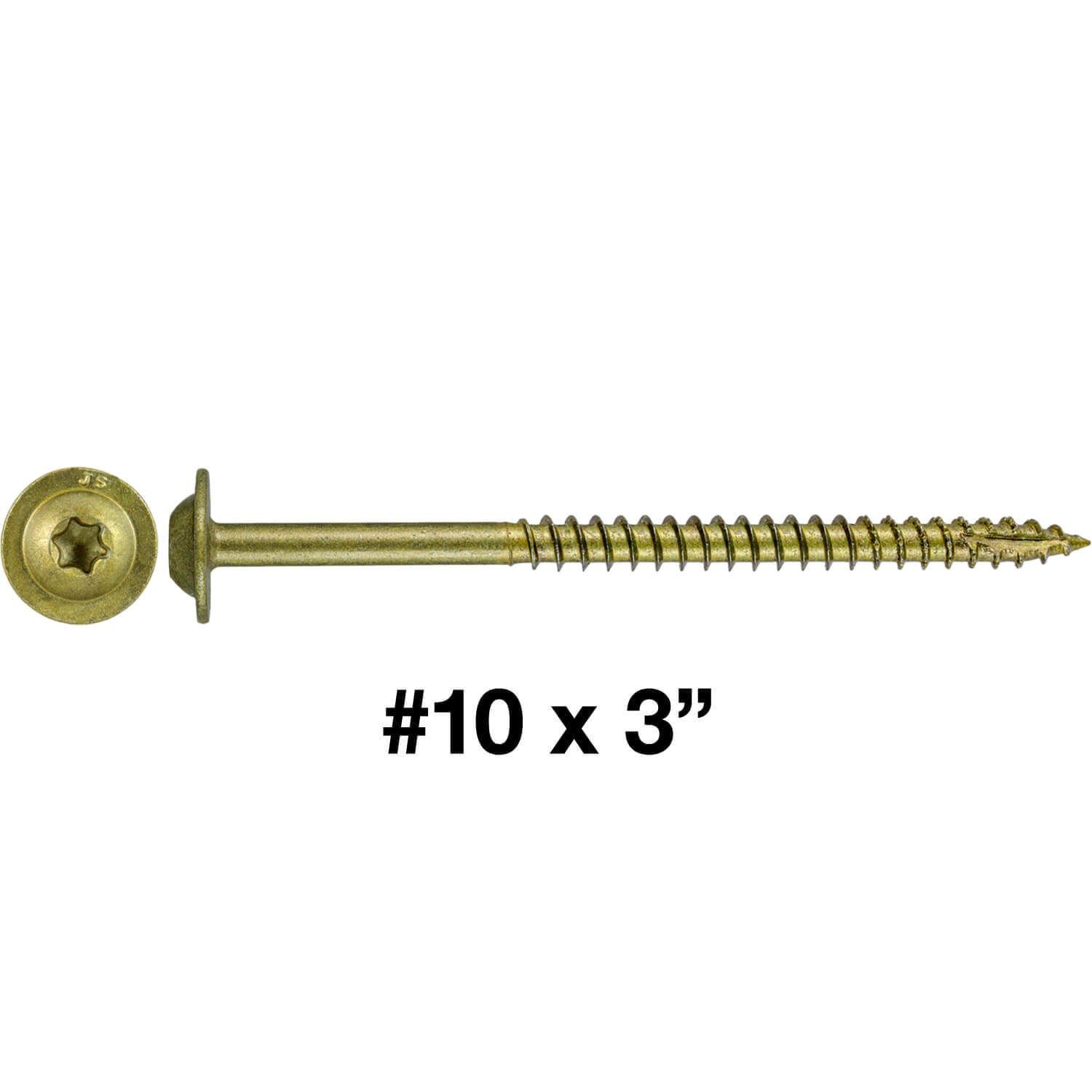

10 x 3" 1 Pound 62 T25 Exterior

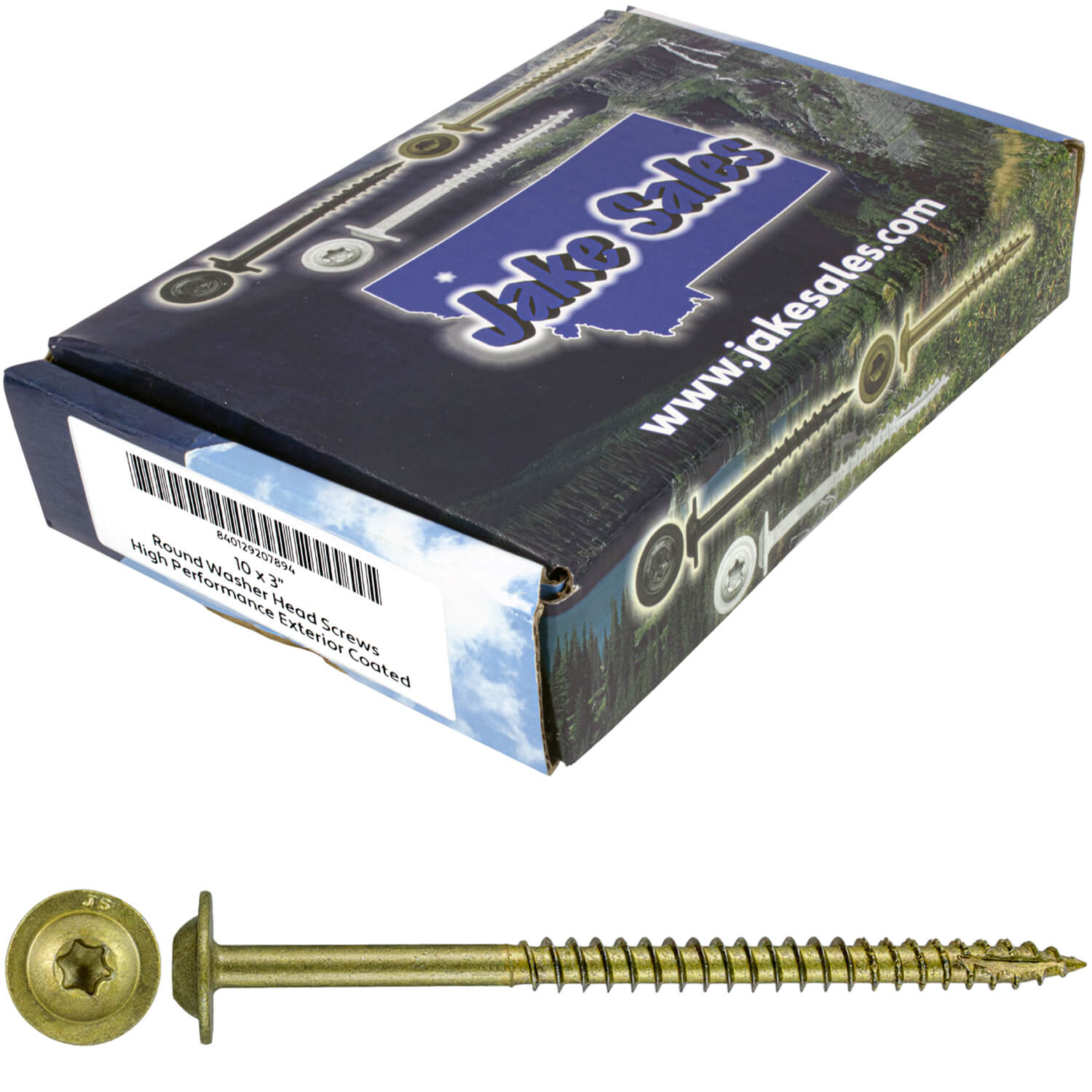

10 x 3" 5 Pounds 310 T25 Exterior
10 x 3" Full Box 1,500 T25 Exterior

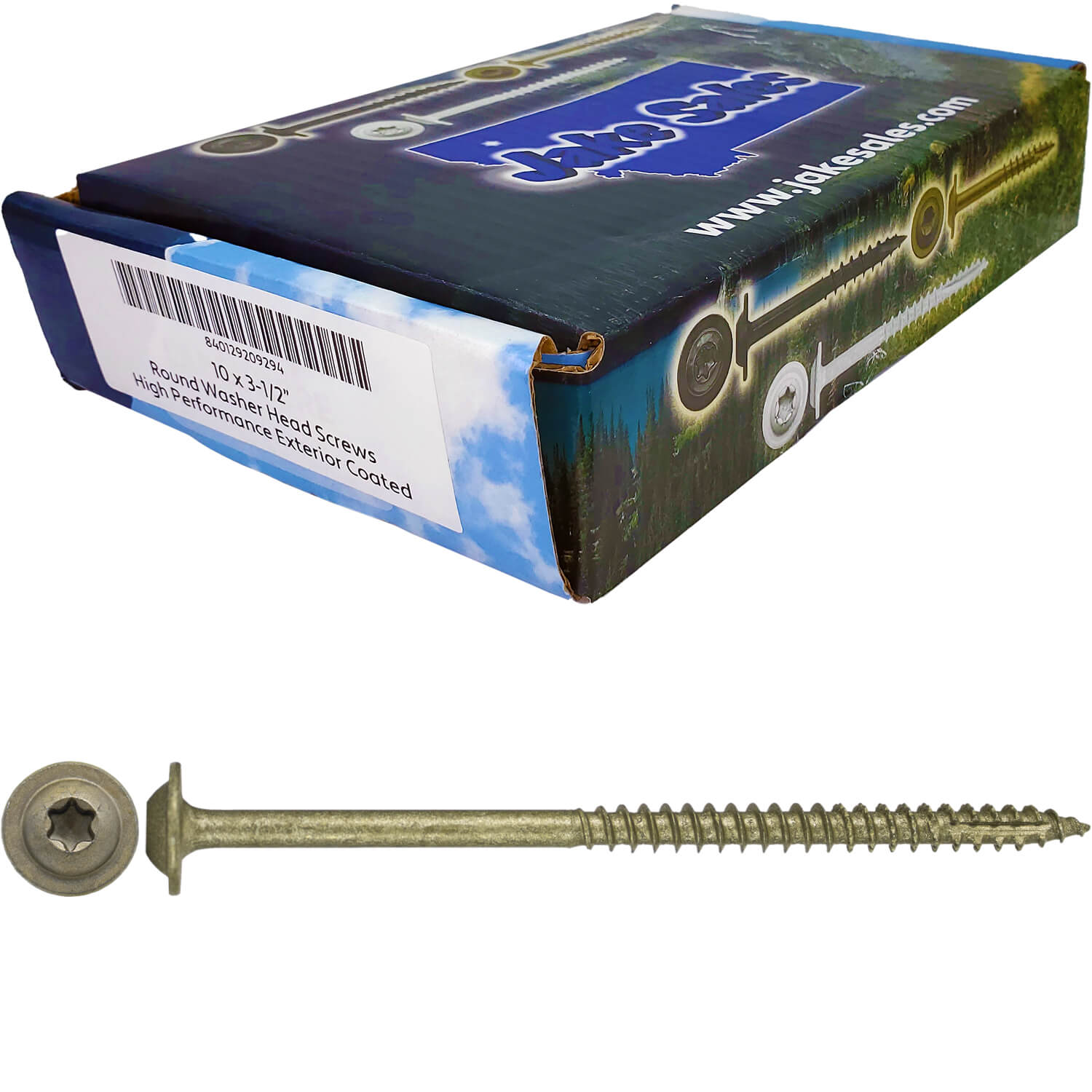

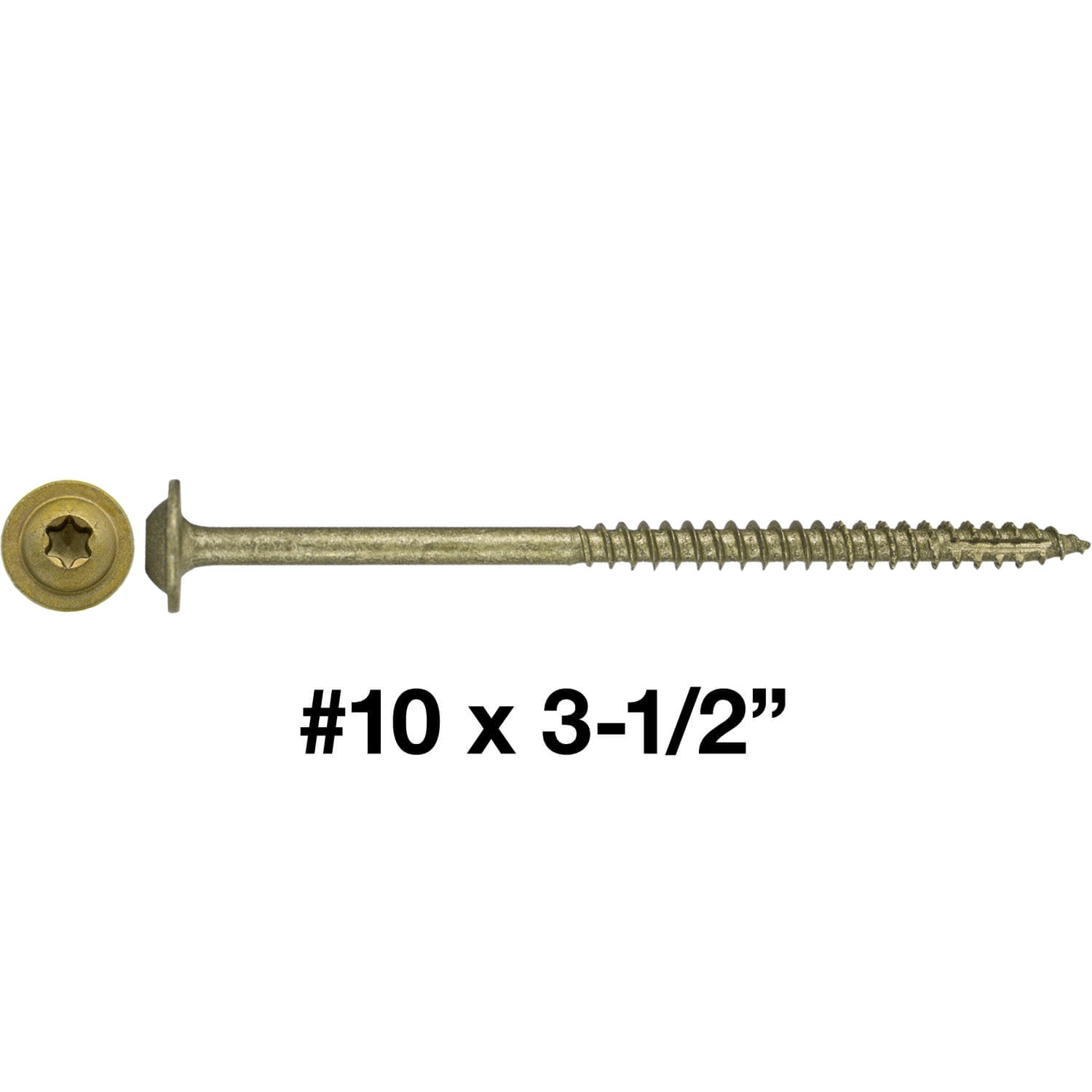

10 x 3-1/2" 1 Pound 54 T25 Exterior
10 x 3-1/2" 5 Pounds 270 T25 Exterior

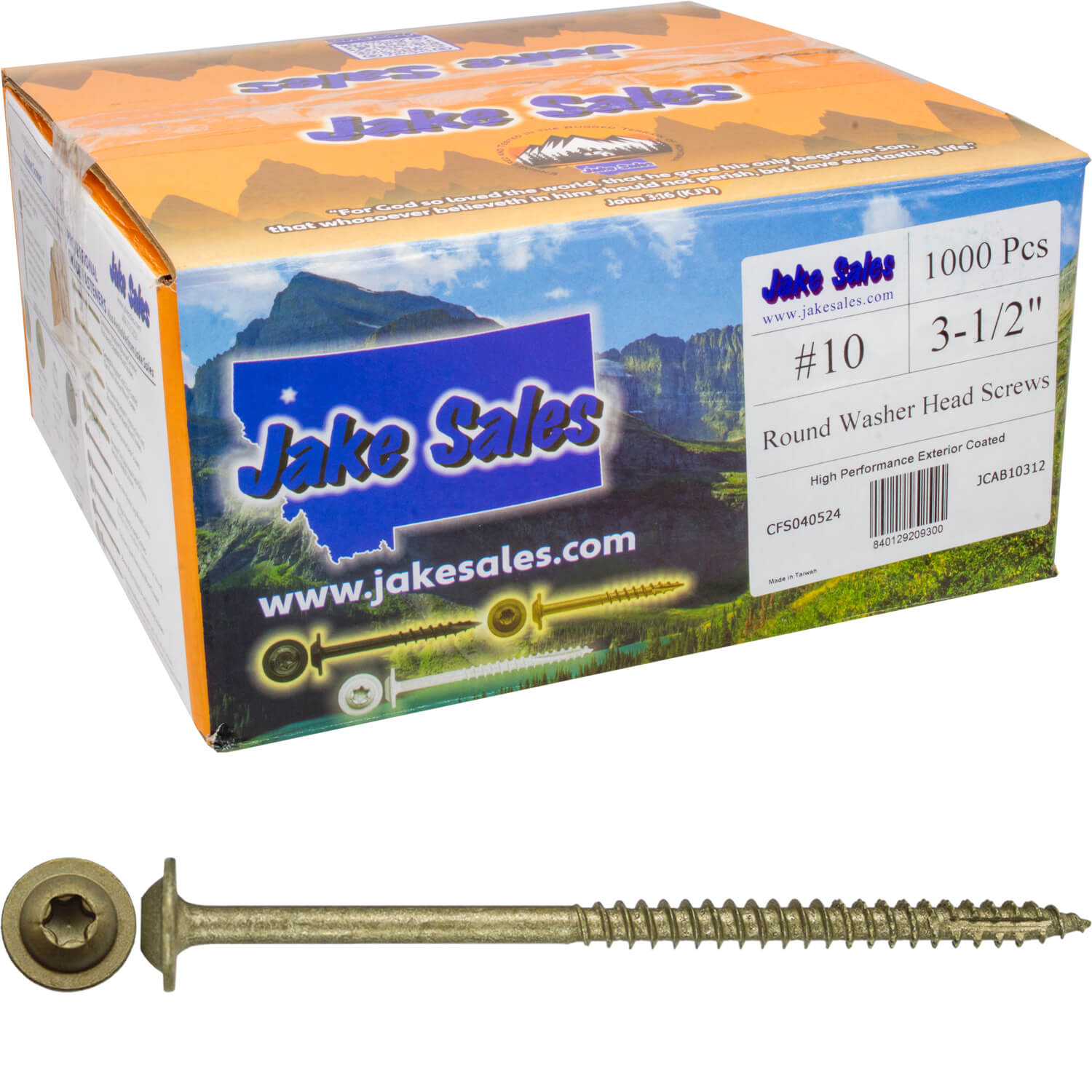

10 x 3-1/2" Full Box 1,000 T25 Exterior
