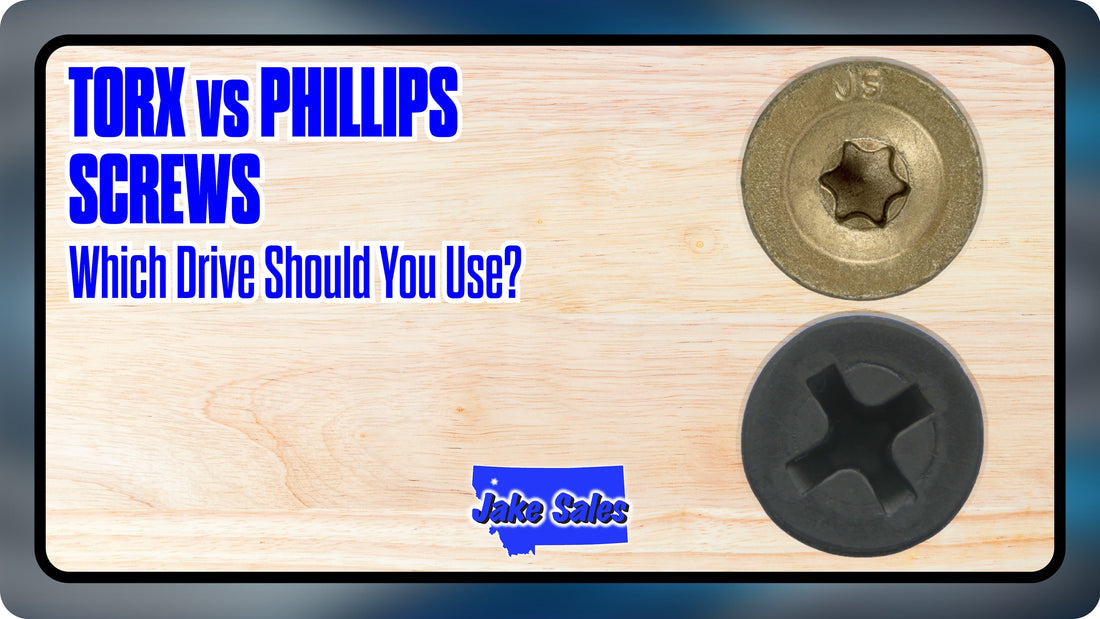

Choosing between Torx and Phillips drive screws comes down to one critical performance difference: cam-out. Phillips head screws are designed to slip under high torque, while Torx screws are engineered to resist stripping and deliver maximum torque transfer without damage. Understanding when each drive type excels — and when it fails — makes every fastening job faster, cleaner, and less frustrating. Here's the complete comparison of Torx vs Phillips screws.

The History Behind Each Drive

Phillips screws were invented in the 1930s. Henry Phillips developed the cross-shaped recess specifically to work with early power screwdrivers — and built in intentional cam-out so the driver would slip before overtightening screws on assembly lines. Phillips screws were designed to slip under high torque as a feature, not a bug. The cross-shaped recess became the global standard for decades because of that manufacturing advantage.

Torx screws were developed by Camcar Textron in 1967 to improve torque transfer over the Phillips design. The six-lobe star-shaped recess, sometimes called a star drive, of Torx distributes load across six contact points versus four in a Phillips, dramatically reducing cam-out under high torque. The star-shaped design of the Torx drive changed the standard for high-torque industrial assembly.

A related drive design to Phillips and Torx is the Pozidriv. Pozidriv screws were developed in the 1960s as an improvement on the Phillips design. Pozidriv adds four additional contact ribs between the main cross arms to reduce cam-out compared to standard Phillips, though it still doesn't match the cam-out resistance of Torx.

What Is Cam-Out and Why Does It Matter?

Cam-out is what happens when the driver bit slips out of the screw head recess under torque rather than continuing to turn the screw. Phillips screws are prone to cam-out under high torque by design — the angled drive walls push the bit upward and out of the recess when resistance increases. The result is a damaged screw head, a stripped Phillips screw, a scarred workpiece, and a worn driver bit.

Torx design prevents cam-out during high-torque use. The six vertical lobes of the Torx recess create contact area between the bit and the screw that is nearly perpendicular to the direction of rotation — the driver is pushed into the recess rather than out of it. Torx screws allow for higher torque transfer than Phillips screws without stripping, which is why Torx vs Phillips comparisons almost always favor Torx for demanding applications.

Phillips Screws: Advantages and Disadvantages

Advantages

• Phillips screws are widely used and cheaper to manufacture compared to Torx screws — Phillips head screws are available at virtually every hardware retailer
• Phillips drivers are universally available in every toolkit, toolbox, and hardware section
• Phillips screws are common and suitable for low-torque household applications where cam-out is unlikely to be an issue
• The self-centering nature of the Phillips recess makes starting the driver easy, even at an angle
• Applications for Phillips screws include basic household repairs, furniture assembly, and light fixture installation where torque requirements are low

Disadvantages

• Phillips screws are more prone to cam-out under high torque — the primary disadvantage in power tool applications
• Cam-out causes damaged workpieces — scratches, gouges, and dents around the screw head
• Damaged screw heads become difficult to remove without a screw extractor
• Too much torque with a Phillips drive strips the recess instantly, turning a simple fastening task into a stripped screw removal problem
• Phillips drive screws wear driver bits faster due to the friction of cam-out events

Torx Screws: Advantages and Disadvantages

Advantages

• Torx screws resist stripping better than Phillips screws — the six-lobe star recess doesn't cam out under high torque
• Torx allow for higher torque transfer, making them ideal for construction requiring high-strength fasteners
• Torx screws are preferred in automotive applications, aerospace, and precision manufacturing where damaged fasteners or damaged workpieces are unacceptable
• Stainless steel Torx screws combine corrosion resistance with superior drive engagement for outdoor and marine applications
• Impact drivers work extremely well with Torx drive screws — the high-torque impacts that strip Phillips head screws are handled comfortably by Torx

Disadvantages

• Torx screws require specialized drivers that are less commonly available than Phillips drivers — though Torx bits are increasingly standard in professional toolkits
• Higher cost than Phillips screws, though the price gap has narrowed as Torx adoption has grown
• In security applications (tamper-resistant Torx), only specific driver shapes can engage the screw — intentional in restricted-access contexts but frustrating if you don't have the right tool

Square Drive Screws: The Third Option

Square drive screws (Robertson drive) are worth mentioning in any Torx vs Phillips comparison because they offer significantly better cam-out resistance than Phillips. Square drive features a square-shaped recess that the driver engages without the angled walls that cause cam-out in Phillips. Square drive screws are the standard in Canada and are increasingly popular in the US for deck building, pocket hole joinery, and general construction screws. Square drive provides excellent torque transfer and is self-centering, making it faster to drive than Phillips in many situations. Construction screws increasingly use square drive or combination square/Phillips drive for exactly this reason.

What Are Torx Screws Best For?

Torx screws excel in high-torque applications — structural connections, automotive assembly, aerospace fastening, heavy-load construction and precision machinery. Torx screws are preferred in automotive and aerospace industries specifically because the torque transfer is reliable and consistent without stripped heads causing assembly line delays or field failures. For general construction, Torx drive construction screws (particularly deck screws and structural screws) have become increasingly popular because impact drivers can be used at full power without stripping.

Can I Use a Regular Socket on a Torx Bolt?

A regular hex socket will not fit a Torx bolt head — Torx bolts have a star-shaped external head rather than an external hex. Standard Torx bits require specialized drivers for installation. External Torx (E-Torx) sockets are star-shaped to match the external Torx head and are a separate product from internal Torx bits. For internal Torx (the standard recess screws), you need a Torx bit — a T-handle, hex shank bit for a drill, or bit socket for a socket wrench. Standard Torx bits (T10, T15, T20, T25, T27, T30, T40) cover most common applications and are available in standard bit sets.

Will a Phillips Screwdriver Work on a Star-Shaped Screw?

A Phillips screwdriver will not properly engage a Torx (star drive) screw. The cross-shaped Phillips tip will contact only two of the six Torx lobes and will cam out immediately, potentially stripping the Torx recess. Attempting to drive Torx screws with a Phillips driver damages both the screw head and the driver. For optimal performance with Torx screws, use the correctly sized Torx bit — T25 is the most common size for construction screws, T20 for deck screws, and T10–T15 for small electronics and medical equipment.
