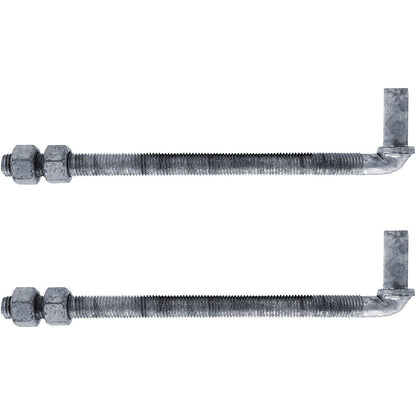

J-Bolt Post Hinge - Hinge Bolts Thru the Post Includes Nuts - J-Bolt Hinge has 5/8" Male Pin - Fence Bolt Though Post Hinge
J-Bolt Post Hinge - Hinge Bolts Thru the Post Includes Nuts - J-Bolt Hinge has 5/8" Male Pin - Fence Bolt Though Post Hinge
Regular price
$24.85 USD
Regular price
$32.99 USD
Sale price
$24.85 USD
Unit price
per
RETAIL PRICE
GS1: 840129212935
This is a special order item.
Couldn't load pickup availability
In-Stock Orders Will Ship Within
Hours
Minutes
Seconds
J-Bolt Post Hinge - Hinge Bolts Thru the Post Includes Nuts - J-Bolt Hinge has 5/8" Male Pin - Fence Bolt Though Post Hinge
✔ J-Bolt Hinge is designed for bolt through applications
✔ J-Bolt Hinge works with 5/8" Gate Frame hinges that accommodate a 5/8" pin opening
✔ J-Bolt thru post hinges are easily adjusted even after the gate is installed
✔ Check usable thread length prior to purchase

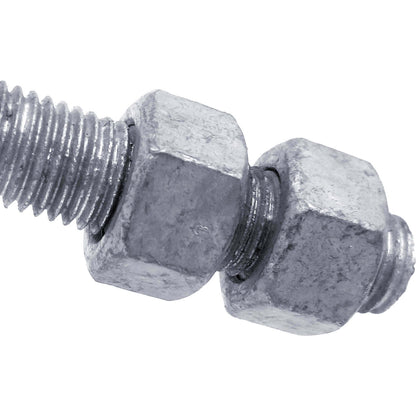

Hardware: Nuts For Gate Hinge Are Included - Washers are NOT Included.

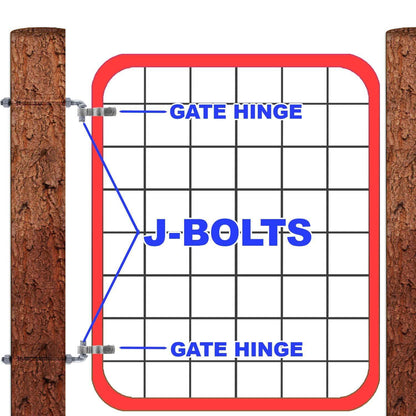

J-Bolt fence post hinge installs easily; drill 3/4" hole through post, install one nut on hinge side. Slide J-bolt post hinge through hole and install second nut on opposite side of post. J-Bolt thru post hinges are easily adjusted even after the gate is installed. Loosen the nuts and turning nuts in or out for proper gate line up
Check post thickness - Usable Length is noted for each J-Bolt here ----

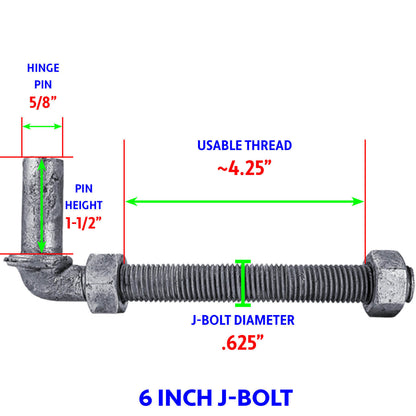

6" length - (~4.25" usable thread) - .625 diameter - 5/8" hinge pin - pin height ~1.5"

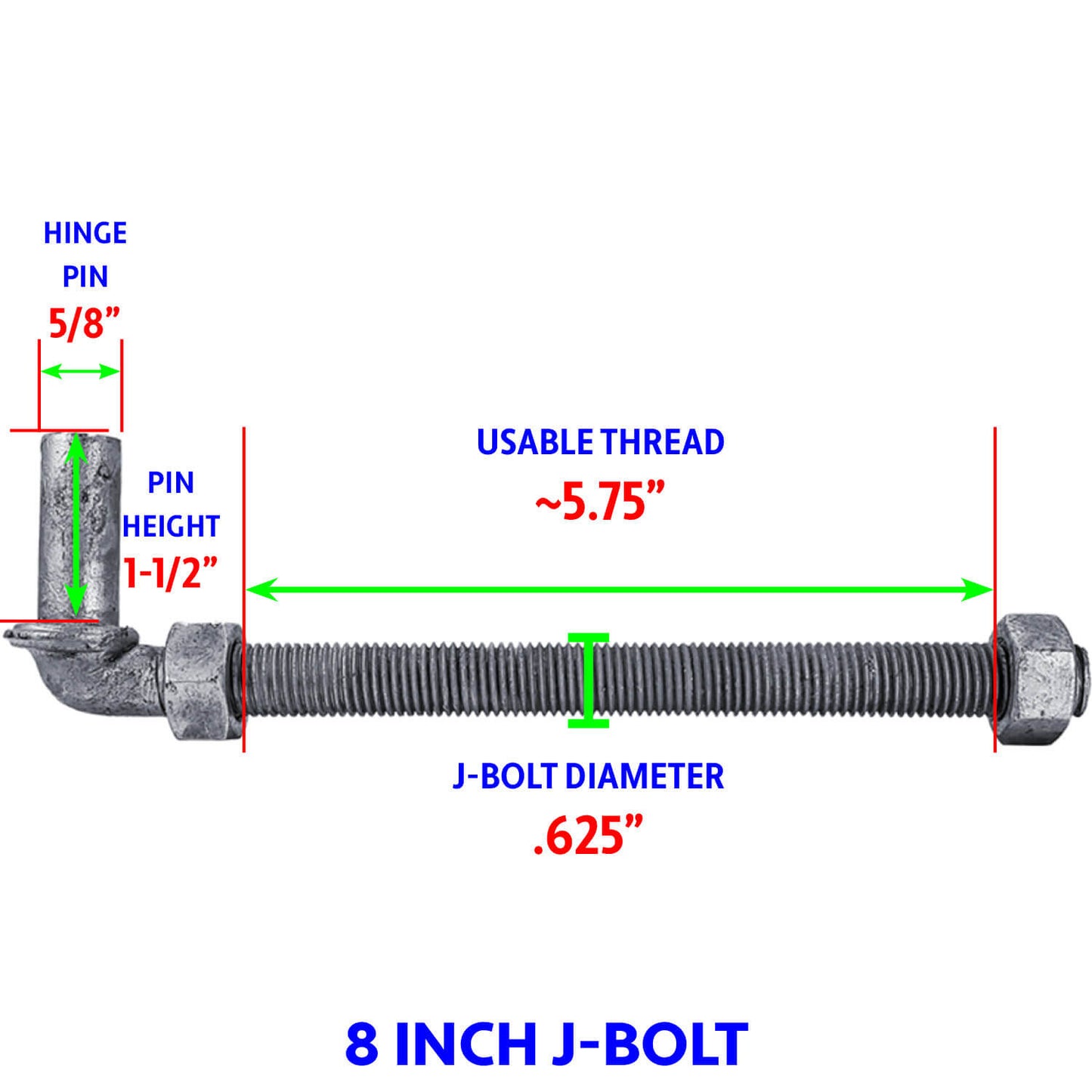

8" Length (~5.75" usable thread) - .625 diameter - 5/8" hinge pin - pin height ~1.5" -

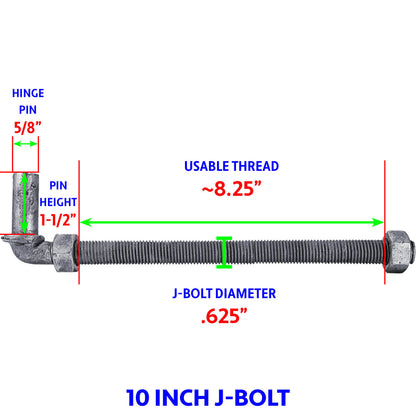

10" length - (~8.25" usable thread) - .625 diameter - 5/8" hinge pin - pin height ~1.5" -

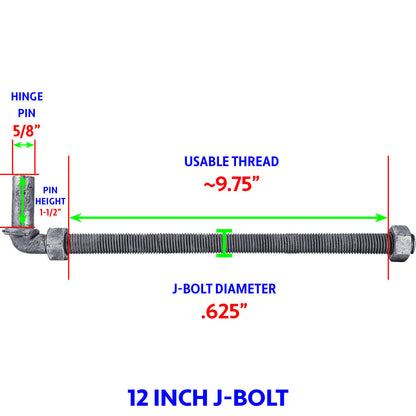

12" length - (~9.75" usable thread) - .625 diameter - 5/8" hinge pin - pin height ~1.5"-
Gate Frame Hinges Available Here
Installation Instructions Available Here -
✔ J-Bolt Hinge is designed for bolt through applications
✔ J-Bolt Hinge works with 5/8" Gate Frame hinges that accommodate a 5/8" pin opening
✔ J-Bolt thru post hinges are easily adjusted even after the gate is installed
✔ Check usable thread length prior to purchase
Hardware: Nuts For Gate Hinge Are Included - Washers are NOT Included.
J-Bolt fence post hinge installs easily; drill 3/4" hole through post, install one nut on hinge side. Slide J-bolt post hinge through hole and install second nut on opposite side of post. J-Bolt thru post hinges are easily adjusted even after the gate is installed. Loosen the nuts and turning nuts in or out for proper gate line up
Check post thickness - Usable Length is noted for each J-Bolt here ----
6" length - (~4.25" usable thread) - .625 diameter - 5/8" hinge pin - pin height ~1.5"
8" Length (~5.75" usable thread) - .625 diameter - 5/8" hinge pin - pin height ~1.5" -
10" length - (~8.25" usable thread) - .625 diameter - 5/8" hinge pin - pin height ~1.5" -
12" length - (~9.75" usable thread) - .625 diameter - 5/8" hinge pin - pin height ~1.5"-
Gate Frame Hinges Available Here
Installation Instructions Available Here -
| Size/Style | Pin Size | Galvanized Steel |
|---|---|---|
| 4-1/2 Inch Lag Screw - | 5/8 Inch | Yes |
| 4-1/2 Inch Lag Screw 2 Pack | 5/8 Inch | Yes |
| 6 Inch Lag Screw - | 5/8 Inch | Yes |
| 6 Inch Lag Screw 2 Pack | 5/8 Inch | Yes |
| 6 Inch J-Bolt - | 5/8 Inch | Yes |
| 6"Inch J-Bolt 2 Pack | 5/8 Inch | Yes |
| 8 Inch J-Bolt - | 5/8 Inch | Yes |
| 8 Inch J-Bolt 2 Pack | 5/8 Inch | Yes |
| 10 Inch J-Bolt - | 5/8 Inch | Yes |
| 10 inch J-Bolt 2 Pack | 5/8 Inch | Yes |
| 12 Inch J-Bolt | 5/8 Inch | Yes |
| 12 Inch J-Bolt 2 Pack | 5/8 Inch | Yes |
| Wall Mount Flat Back | 5/8 Inch | Yes |
| Wall Mount Flat Back - 2 pack | 5/8 Inch | Yes |
| Wood Pin Hinge | 5/8 Inch | Yes |
| Wood Pin Hinge - 2 pack | 5/8 Inch | Yes |
