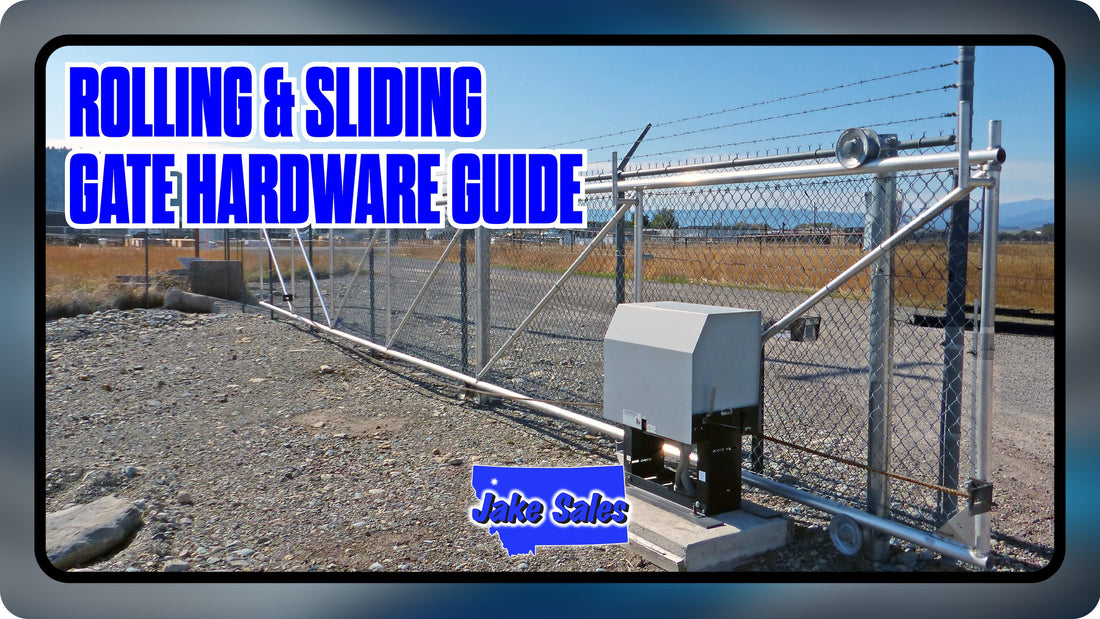

This rolling sliding gate hardware guide covers every component you need to choose, install, and maintain a sliding gate system — from rollers and tracks to guide rollers, gate stops, and automation components. Rolling and sliding gates are popular for secure, space-saving access where a swing gate would block a driveway or require more clearance than is available.

The Two Main Types of Sliding Gates

The two main types of sliding gates are on-track systems and cantilever systems. Choosing between them sets everything else — the hardware, the maintenance requirements, and the performance in different ground conditions.

On-Track (V-Track) Sliding Gates

On-track systems feature wheels on a track — a V-groove or flat track embedded in or mounted on the driveway surface, and matching wheels on the gate frame that ride in that track. V-track systems are cost-effective for perfectly level driveways and are the most common residential sliding gate design.

The limitation: V-tracks can get clogged with debris, snow, or ice. In freezing weather, V-tracks can block with ice, preventing gate operation entirely. For driveways in areas with heavy snowfall or frequent freezing, this is a significant reliability concern.

Rolling Wheel Gates

Rolling wheel gates also use tracks and wheels to open the gate, but the track is suspended off the ground and the wheels are mounted on carriers. This makes it much less likely that the track will be blocked by debris, snow, or ice. Although the wheel carriers are much more durable than V-groove wheels, there is still a chance for them to be blocked by ground-level debris. Rolling wheel gates also take up more space due to the wide wheel carrier at the gate bottom.

Cantilever Sliding Gates

Cantilever gates do not touch the ground and roll along enclosed tracks. The gate is suspended by rollers running on a horizontal track mounted to fence posts — the gate floats above the ground surface and slides open without touching the ground. Cantilever systems are preferred for uneven ground or high-debris areas. In freezing weather, cantilever systems remain operational because there's no ground-level track to ice over. They're also better for gravel driveways where laying a track is impractical.

The trade-off: cantilever gates require a counterbalance section behind the post equal to about 1/3 of the gate width — you need clear space on the latch side for the gate to travel into.

Gate Rollers: Types and Specifications

Rollers carry the full weight of the sliding gate. Choosing the right rollers is critical — undersized or poor-quality rollers are the most common source of sliding gate failures.

Rollers are typically made of steel, rubber, or high-quality plastic like UHMW or nylon. Rubber rollers are cheaper but wear out quicker than plastic, which better resists abrasion, UV degradation, and impact. Most residential gates use steel or nylon rollers. Commercial gates typically use hardened steel rollers with sealed bearings for the longest service life in high-traffic applications.

The hardware's rated capacity should exceed the gate's physical weight by at least 30%. A 500-pound gate requires hardware rated for at least 650 pounds. Heavy-duty hardware is needed for gates exceeding 2,000 pounds — these gates require commercial-grade hardened steel rollers and tracks, not residential hardware.

Guide Rollers

Guide rollers or blocks prevent the gate from tipping over during movement and keep it tracking in a straight line. These guides are important for keeping the gate upright in high winds — without them, a tall sliding gate can tip under wind load. Guide posts are sturdy posts where guide rollers are attached — typically positioned at the far end of the gate to catch the gate as it closes.

Guide rollers come in 3 common lengths: 3", 6", and 12". Longer guide rollers provide more surface contact and better resistance to gate lean, especially on tall gates. A guide roller is the critical safety component of a sliding gate — a gate without proper guide rollers is unstable and unsafe. Bottom gate guide rollers keep the gate sliding correctly on on-track systems.

Tracks and Rails

Tracks and rails provide the path for the gate to move along, guiding the entire sliding gate structure — a solid track helps prevents issues with other gate components.

On-track systems use a V-channel or flat track set into the driveway or mounted flush with the surface. The track must be level and properly set — any waviness in the track causes gate movement problems. A properly installed on-track gate operates smoothly with minimal maintenance.

Internal track gates are hung from top trolley assemblies — the track is overhead and the gate hangs below. This design is common in industrial applications where the floor must remain clear, but it can be used in place of on-track systems if ground-level tracks frequently become blocked or jammed.

Gate Stops

Gate stops prevent the gate from traveling too far in either direction. Without gate stops, the gate can roll past the open or closed position, stressing the frame and damaging the rollers against their mechanical limits. Gate stops bolt to the track or post at both ends of the gate's travel range. Check stops and wheels regularly for wear and damage — a damaged stop allows the gate to overtravel.

Automated Sliding Gate Components

For automated sliding gates, additional components are required:

• Gate operator motor: The motor is crucial for automated sliding gate operation. Chain-drive, rack-drive, and direct-drive motors are the main types of operator motors — choose based on gate weight and duty cycle.
• Safety sensors: Safety sensors prevent gates from closing on obstructions — people, vehicles, or pets in the gate path. These are code-required on automated gates in most jurisdictions.
• Access control: Access control systems can include keypads, card readers, intercoms, and smartphone apps for remote operation.

Maintenance

Monthly maintenance prevents most sliding gate hardware failures. Key maintenance tasks:

• Check rollers and wheels regularly for wear and damage — flat spots on wheels cause the gate to bounce and track poorly.
• Lubricate roller bearings and track surfaces with a dry or white lithium lubricant (avoid heavy greases that attract debris).
• Clear the track of leaves, gravel, and ice regularly — heavy-duty rollers and tracks are required for high-traffic gates, but debris causes problems at any load rating.
• Inspect guide rollers for wear and proper adjustment — a loose guide roller allows gate lean that stresses the entire system.
• Check the gate frame for signs of cracking or distortion — a gate frame that has twisted will never track properly no matter how good the hardware is.
